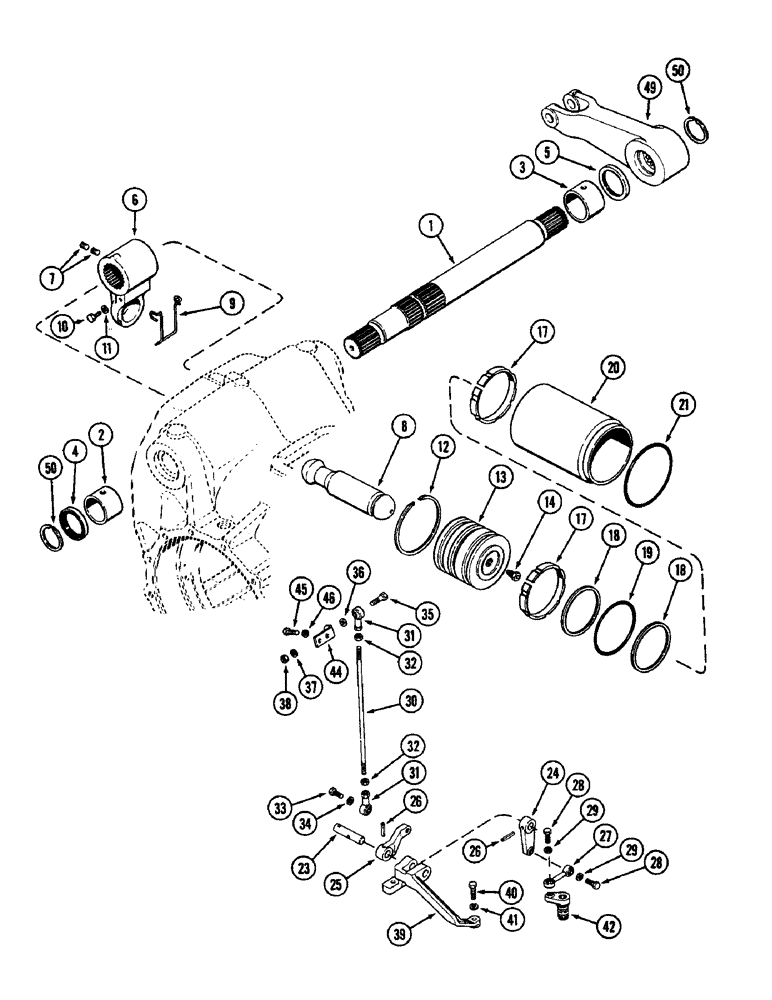

Запчасти Case IH 3294 (8-346) - HITCH ROCKSHAFT AND PISTON (08) - HYDRAULICS

1

A163097

ROCKSHAFT

- lift arm, hitch

1шт.

2

A141198

BUSHING,60.47mm ID x 65.24mm OD x 50.93mm L

- right, 2-9/16 inch (65 MM) OD

1шт.

3

A141199

BUSHING,70mm ID x 74.8mm OD x 51mm L

- left, 2-15/16 inch (75 MM) OD

1шт.

4

A32304

OIL SEAL,60.33mm ID x 85.8mm OD x 11.91mm Thk

- oil, right 3-3/8 inch (86 MM) OD

1шт.

5

A32305

OIL SEAL,69.85mm ID x 92.2mm OD x 11.91mm Thk

- oil, left, 3-5/8 inch (92 MM) OD

1шт.

6

A161618

ARM

- rockshaft to piston rod

1шт.

7

84-88

SET SCREW,Hex Soc, 1/2"-20 x 1/2"

SCREW - socket head cup point, set, 1/2 NF x 1/2 inch

2шт.

8

A139101

ROD

- piston

1шт.

9

A60497

SPRING

-, Serial Range: rod-arm

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

11

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 3/8 x 1 x 5/64 inch (8 x 25 x 2 MM)

2шт.

12

A32292

CIRCLIP

RING - snap, cylinder

1шт.

13

A164774

PISTON

- rockshaft

1шт.

14

A164785

VALVE

- thermal safety (Replaces A164685)

1шт.

17

A32219

RING,126.62mm ID x 133.35mm OD x 15.88mm Thk

- wear, piston

2шт.

18

A32293

RING,121.94mm ID x 133.93mm OD x 2.97mm Thk

- backup, piston seal

2шт.

19

A32294

O-RING,4.725" ID x 5.275" OD x 0.275"

- piston seal, 5-1/4 inch (133 MM) OD

1шт.

20

A147755

SLEEVE

LINER - cylinder

1шт.

21

A32295

O-RING,5.725" ID x 6.275" OD x 0.275"

- liner seal, 6-1/4 inch (159 MM)

1шт.

23

A162698

SHAFT

- sensing levers

1шт.

24

A162078

LEVER

- inner sensing

1шт.

25

A162077

LEVER

- outer sensing

1шт.

26

138-2040

PIN,1/4" x 1 1/2", Coiled

2шт.

27

A162073

LINK

- follow up lever

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

29

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

30

A162072

ROD

- lever adjusting

1шт.

31

A32398

BALL JOINT

BEARING - rod end

2шт.

32

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex jam, 3/8 inch NF

2шт.

33

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

34

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

35

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

36

A32395

WASHER

SPACER - rod end

1шт.

37

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

38

25-106

NUT,3/8"-16, G5

- hex, 3/8 inch NC

1шт.

39

A164777

SUPPORT

- lever

1шт.

40

113-2263

PREV TORQUE BOLT,Locking, 3/8"-16 x 1 1/4", G5

BOLT - hex lock, 3/8 NC x 1-1/4 inch

2шт.

41

92-6

LOCK WASHER,3/8"

2шт.

42

A162080

LEVER

- follow up, draft sensing

1шт.

44

A163052

BRACKET

- adjusting rod lever

2шт.

45

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

46

92-6

LOCK WASHER,3/8"

2шт.

49

A177253

LIFT ARM

ARM - lift, rockshaft to draft arm (Replaces A164592, see Figure 9-362)

2шт.

50

A32300

SNAP RING,#225, 2.174", Ext

RING - snap, lift arm

2шт.
