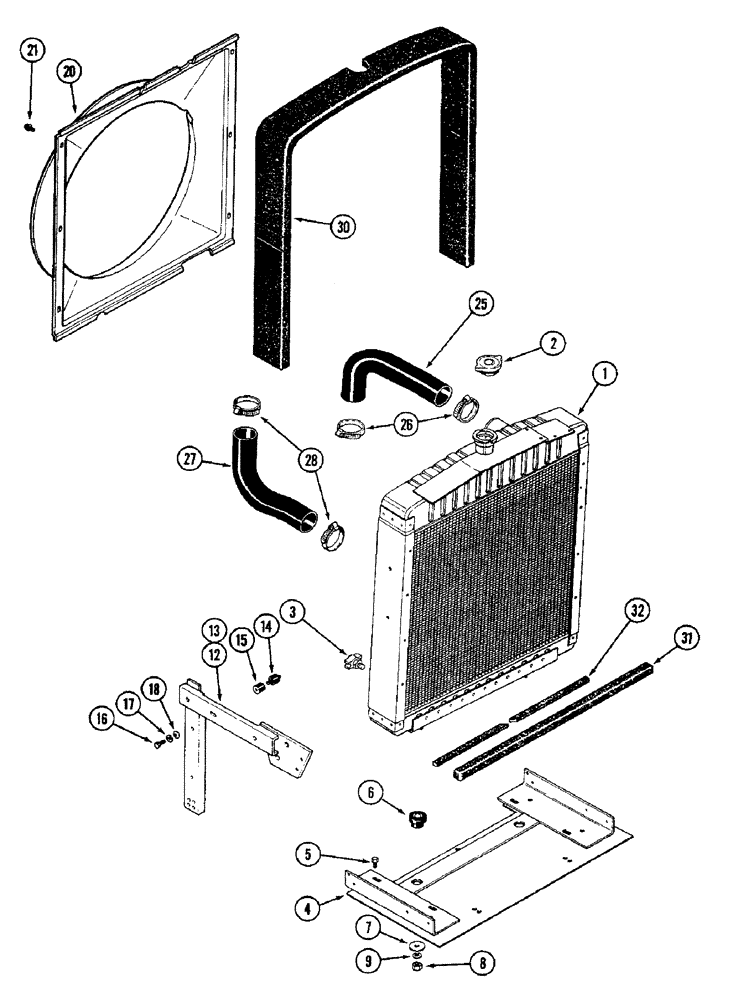

Запчасти Case IH 3294 (2-002) - RADIATOR AND ATTACHING PARTS, 504BDT DIESEL ENGINE (02) - ENGINE

1

A166469

RADIATOR

- cooling system

1шт.

2

A166776

CAP

- radiator 10 PSI (69 kPa)

1шт.

3

A23656

COCK, DRAIN

VALVE - radiator drain

1шт.

4

A166383

SUPPORT

- lower radiator

1шт.

5

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

6шт.

6

L46821

SHOCK ABSORBER

MOUNT - rubber

2шт.

7

48560

BRAKE LINING

- mounting

2шт.

8

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

12

A169188

BRACKET

SUPPORT - left side, radiator

1шт.

13

A169187

BRACKET

SUPPORT - right side, radiator

1шт.

14

A145743

MOUNTING PARTS

MOUNT - rubber, radiator side

2шт.

15

A161631

SPACER

- side mount

2шт.

16

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

18

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

2шт.

20

A147138

GUARD

SHROUD - fan

1шт.

21

A161360

BOLT

- hex washer head, 1/4 NC x 5/8 inch (Order 1 each of 113-2, 192-19 and 195-102)

6шт.

25

A141495

RADIATOR HOSE,2.50" ID, SAE 20R4

Upper (Replaces A166381) 2.50" ID, SAE 20R4

1шт.

26

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - upper hose

2шт.

27

A166380

OUTLET

HOSE - lower

1шт.

28

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - lower hose

2шт.

30

A177517

SEAL

- radiator to hood (Replaces A149133)

1шт.

31

A149962

SEAL

- lower, radiator

3шт.

32

A167140

SEAL

- fan shroud

1шт.
