Запчасти Case IH 3294 (8-334) - REMOTE CONTROL VALVE, FOR SECOND OR ADD ON FOR THIRD CIRCUIT WITH LOAD CHECK (08) - HYDRAULICS

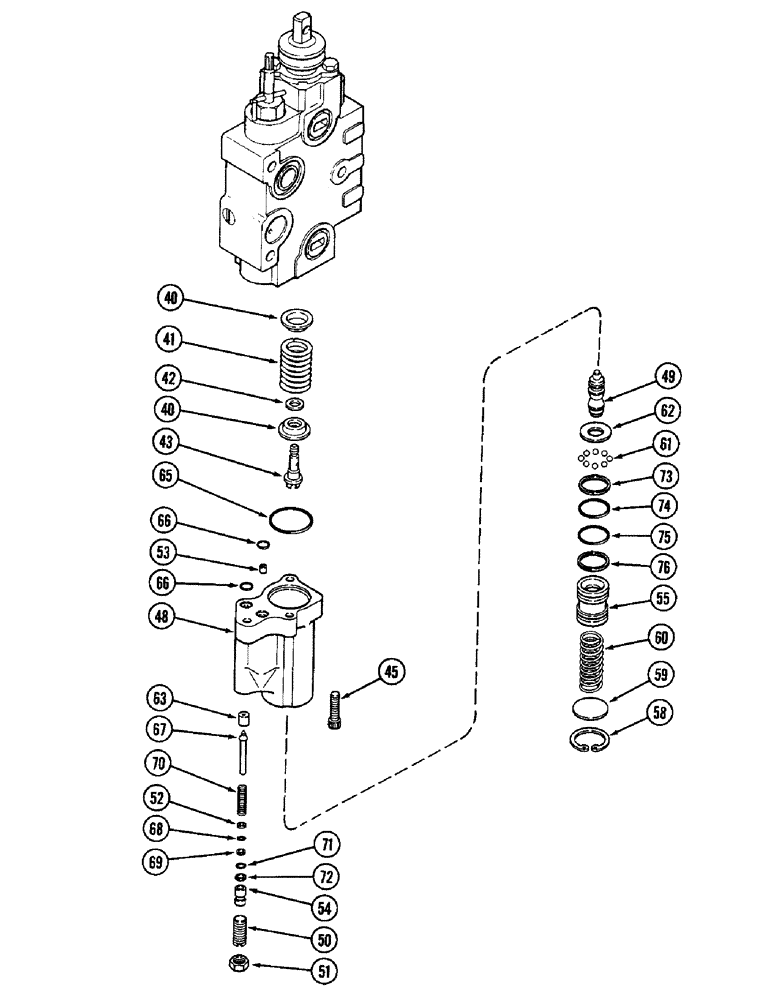

Схема запчастей Case IH 3294 - (8-334) - REMOTE CONTROL VALVE, FOR SECOND OR ADD ON FOR THIRD CIRCUIT WITH LOAD CHECK (08) - HYDRAULICS
40
58
50
75
66
51
72
67
70
71
62
66
48
69
54
45
63
76
42
59
40
73
53
41
60
65
52
61
43
68
74
49
55

Артикул

Название

Примечание

Количество

A169456

VALVE

ASSEMBLY - remote control, Includes: remote body assembly and Ref. 60 - 96 in this figure and parts in Figures 8-330 and 8-332

1шт.

A48945

HOUSING

BODY ASSEMBLY - remote, Includes: Ref. 60 - 96 in this figure and parts in Figure 8-332

1шт.

60

A47197

RETAINER

- spring

2шт.

61

A47177

SPRING

- centering

1шт.

62

A48930

SPACER

- detent

1шт.

63

A46923

COUPLING, BREAK AWAY

COUPLER - detent

1шт.

64

61-416

HEX SOC SCREW,1/4"-20 x 1"

SCREW - socket head cap, 1/4 NC x 1 inch

3шт.

A48940

KIT

HOUSING KIT - detent, Includes: Ref. 66 - 96

1шт.

66

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - detent (Order A48940 kit), Includes: Ref. 67 - 96

1шт.

67

NSS

NOT SOLD SEPARAT

SHAFT - detent (Order A48940 kit)

1шт.

68

A47173

SCREW,3/8" - 24 x 0.96"

- adjusting

1шт.

69

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex jam, 3/8 inch NF

1шт.

70

A48936

GOVERNOR

PISTON - regulator

1шт.

71

A48935

WASHER

- poppet

1шт.

72

A47658

PLUG

- orifice

1шт.

73

A48932

PISTON

- kickout

1шт.

74

A30975

SNAP RING,1.188", Int, #118

1шт.

75

A48933

RING

- retainer, piston

1шт.

76

A48934

SPRING

- detent

1шт.

77

211-6

BALL,7/32" Dia

BEARING - ball, 7/32 inch (6 mm) diameter

8шт.

80

A48931

WASHER

- guide

1шт.

81

A46924

SEAT

- pilot

1шт.

A48942

KIT

SEAL KIT - detent, Includes: Ref. 84 - 96

1шт.

84

A59066

O-RING,1.239" ID x 1.379" OD

- housing

1шт.

85

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, detent

2шт.

86

NSS

NOT SOLD SEPARAT

POPPET - detent (Reference no. A48958)

1шт.

87

T30271

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

- poppet

1шт.

88

A52378

RING,Split, 3.56mm ID x 6.3mm OD x 1.32mm Thk

- backup (Replaces C15215)

1шт.

89

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- piston

1шт.

90

D71056

RING,Split, 4.47mm ID x 7.21mm OD x 1.32mm Thk

- backup

1шт.

92

L35295

SEALING RING,Split, 24.38mm ID x 27.13mm OD x 1.32mm Thk

RING - backup

1шт.

93

A62239

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

- piston

1шт.

94

A15365

O-RING - piston

1шт.

95

A52208

SEAL,25.98mm ID x 28.73mm OD x 1.32mm Thk

RING - backup

1шт.

96

NSS

NOT SOLD SEPARAT

SPRING - relief (Reference no. A48961)

1шт.

Выбрано товаров: 35
