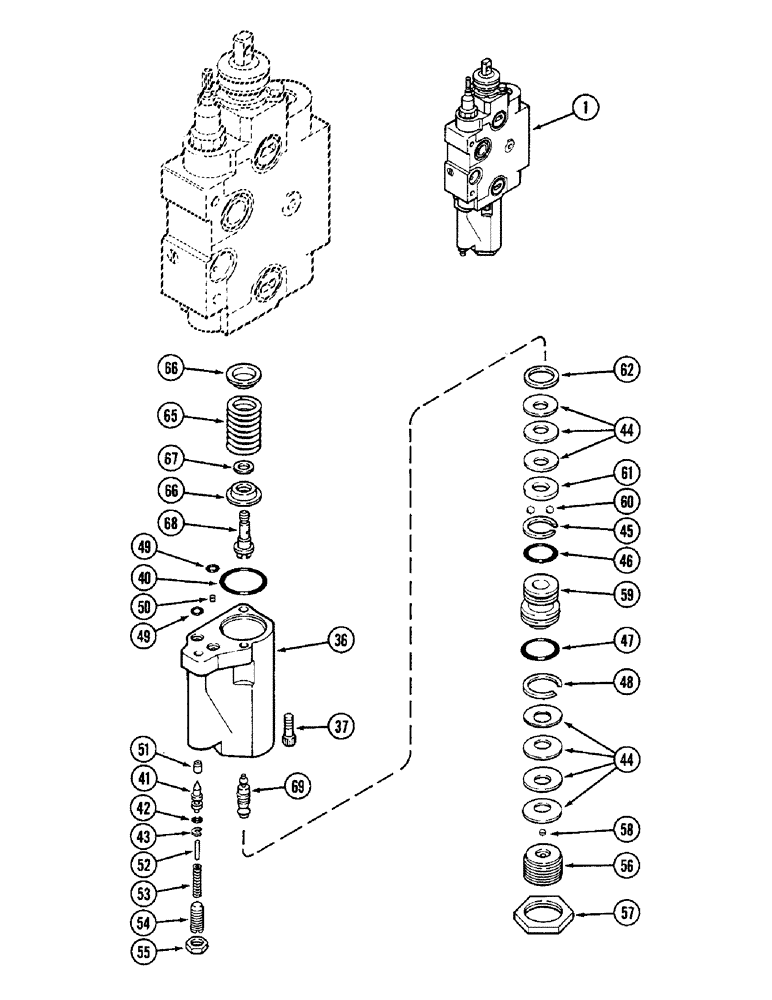

Запчасти Case IH 3294 (8-318) - REMOTE HYDRAULICS, REMOTE VALVE BODY ASSEMBLY ADD ON FOR 3RD OR 4TH CIRCUIT W/O LOAD CHECK (CONTD) (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
A162213
HOUSING
BODY ASSEMBLY - remote hydraulic control valve, Includes: Ref. 36 - 69 in this figure and parts in Figure 8-316
1шт.
36
A47655
HOUSING
ASSEMBLY - detent
1шт.
A47572
KIT
- seal, detent housing, Includes: Ref. 40 - 49
1шт.
40
A59066
O-RING,1.239" ID x 1.379" OD
- 1-1/4 x 1-3/8 x 1/16 inch (32 x 35 x 2 MM)
1шт.
41
A47192
SPOOL
POPPET - pilot
1шт.
42
A51274
O-RING,0.145" ID x 0.285" OD
- 5/32 x 9/32 x 1/16 inch (4 x 7 x 2 MM)
1шт.
43
D54860
RING
- backup
1шт.
44
D78437
WASHER
- dished
7шт.
45
A47100
RING
- backup
1шт.
46
R15366
O-RING,7/8" ID x 1" OD x 1/16"
- 7/8 x 1 x 1/16 inch (2 x 25 x 2 MM)
1шт.
47
R15365
O-RING,0.989" ID x 1.129" OD x 0.07"
- 1 x 1-1/8 x 1/16 inch (25 x 28 x 2 MM)
1шт.
48
A52208
SEAL,25.98mm ID x 28.73mm OD x 1.32mm Thk
RING - backup (Replaces C14656)
1шт.
49
A138385
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
- 5/16 x 7/16 x 1/16 inch (8 x 11 x 2 MM)
2шт.
50
D78456
PLUG
- orifice
1шт.
51
A47201
SEAT
- pilot
1шт.
52
A47104
PIN
- spring guide
1шт.
53
D78468
SPRING
- pilot
1шт.
54
A47173
SCREW,3/8" - 24 x 0.96"
- adjusting, 3/8 NF x 31/32 inch
1шт.
55
86585245
SPECIAL NUT,JAM, 5/8" - 18
- hex, 3/8 inch NF
1шт.
56
A47211
PLUG
- detent adjusting
1шт.
57
A47175
LOCK NUT
NUT - lock
1шт.
58
A47206
FILTER
- float
1шт.
59
A47207
PISTON
- float
1шт.
60
211-256
BALL
- chrome steel, 7/32 inch (6 MM) diameter
7шт.
61
A47198
RETAINER
- ball
1шт.
62
D78438
WASHER
- detent, spring washer
1шт.
A47573
KIT
- detent centering spring, Includes: Ref. 65 - 69
1шт.
65
A47177
SPRING
- detent, 1 inch OD x 2-1/2 inch free length (25 x 63 MM)
1шт.
66
A47197
RETAINER
- spring
2шт.
67
A47199
BUSHING
SPACER - detent
1шт.
68
A47193
COUPLING, BREAK AWAY
COUPLER - detent
1шт.
69
A47190
SHAFT
- pivot, detent
1шт.
Выбрано товаров: 33
