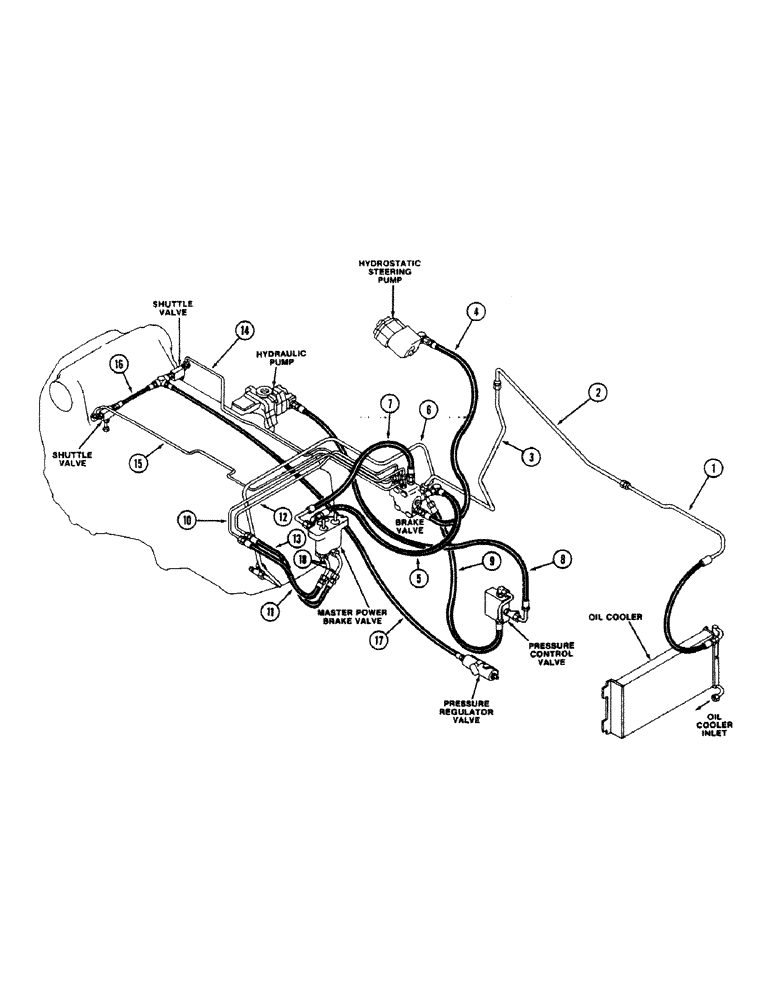

Запчасти Case IH 3294 (1-018) - PICTORIAL INDEX, BRAKE HYDRAULICS, WITH HAND BRAKE ACCUMULATOR (00) - PICTORIAL INDEX

1

Oil Cooler Outlet Tube, Page 5-123

1шт.

2

Oil Cooler Outlet Center Tube, Page 5-123

1шт.

3

Oil Cooler Outlet to Brake Valve Tube, Page 5-123

1шт.

4

Steering Pump to Brake Valve Hose, Page 5-119

1шт.

5

Master Power Brake Valve Inlet Hose, Page 7-241

1шт.

6

Oil Cooler Return Tube, Page 8-267

1шт.

7

Master Power Brake Valve Drain Hose, Page 7-241

1шт.

8

Pressure Control Valve to Hydraulic Pump Hose, Page 7-251

1шт.

9

Pressure Control Valve to Brake Valve Hose, Page 7-251

1шт.

10

Right Front Brake Tube, Page 7-241

1шт.

11

Right Front Brake Hose, Page 7-241

1шт.

12

Left Front Brake Tube, Page 7-241

1шт.

13

Left Front Brake Hose, Page 7-241

1шт.

14

Left Rear Brake Tube, Page 7-241

1шт.

15

Right Rear Brake Tube, Page 7-141

1шт.

16

Right to Left Crossover Brake Hose, Page 7-251

1шт.

17

Brakes to Pressure Regulator Value, Page 7-251

1шт.

18

Front Brake Hose to Master Brake Value Tube, Page 7-241

1шт.
