Запчасти Case IH 3294 (8-294) - REMOTE HYDRAULICS, VALVE, HOSES AND COUPLINGS, 2 CIRCUIT SYSTEM WITHOUT LOAD CHECK (08) - HYDRAULICS

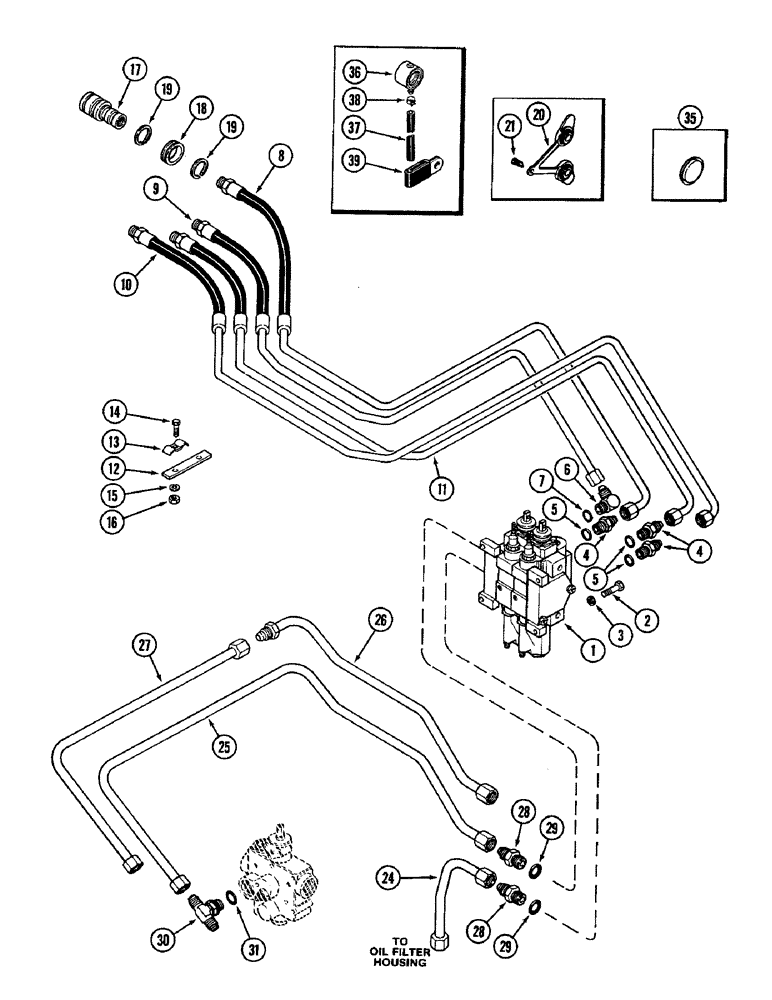

Схема запчастей Case IH 3294 - (8-294) - REMOTE HYDRAULICS, VALVE, HOSES AND COUPLINGS, 2 CIRCUIT SYSTEM WITHOUT LOAD CHECK (08) - HYDRAULICS
35
6
11
1
9
31
4
29
30
15
25
21
29
28
4
19
27
12
26
10
37
28
5
38
20
8
16
24
18
5
3
19
13
36
14
2
17
39
7

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - remote (See Figure 8-312)

1шт.

2

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - straight, 5/8 tube 7/8-14 inch thread, Includes: Ref. 5

3шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 MM)

1шт.

6

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90 degree adjustable, 5/8 tube 7/8-14 inch thread, Incl. Ref. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 MM)

1шт.

8

A145901

HOSE

- remote, right inner

1шт.

9

A145902

HOSE

- remote, right outer

1шт.

10

A145903

HOSE

- remote, left inner

1шт.

11

A145904

HOSE

- remote, left outer

1шт.

12

A141174

SUPPORT

- tube clamp

1шт.

13

A63323

CLAMP

- tube

2шт.

14

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

2шт.

17

REF

INSTRUCTION

COUPLING - break-away, remote hose (See Figure 8-338)

4шт.

18

A149221

RETAINER

- coupling

4шт.

19

A137976

SNAP RING,#150, 1.408", Ext

RING - snap, retainer

8шт.

20

A145468

PLUG

- dust, coupling

2шт.

21

A162364

FASTENER

- dust, Serial Range: plug-cab

2шт.

24

A147058

TUBE

- remote, Serial Range: valve-filter

1шт.

25

REF

INSTRUCTION

TUBE - regulator to valve to remote valve (Order ref 26 and 27)

1шт.

26

A162503

TUBE

- regulator valve to remote valve (LH section for service)

1шт.

27

A162502

TUBE

- regulator valve to remote valve (RH section for service)

1шт.

28

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, 3/4 tube 1-1/16-12 inch thread, Incl. Ref. 29

2шт.

29

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 7/64 inch (24 x 29 x 3 MM)

1шт.

30

218-5185

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSEMBLY - adjustable, 3/4 tube 1-1/16-12 inch thread, Includes: Ref. 31

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 1-3/64 x 1-13/32 x 1/8 inch (27 x 36 x 3 MM)

1шт.

35

353-590

PLUG,1 7/8"

- button, 1-7/8 inch (48 MM)

4шт.

36

A177479

CAP

- dust

4шт.

37

A180178

HOSE,7.90 mm ID x 914.40 mm, SAE J200

- drain 7.90 mm ID x 914.40 mm, SAE J200

4шт.

38

A180159

CLAMP,10.29mm - 12.32mm

- hose retaining

4шт.

39

A180154

CLAMP

- hose retaining

1шт.

Выбрано товаров: 34
