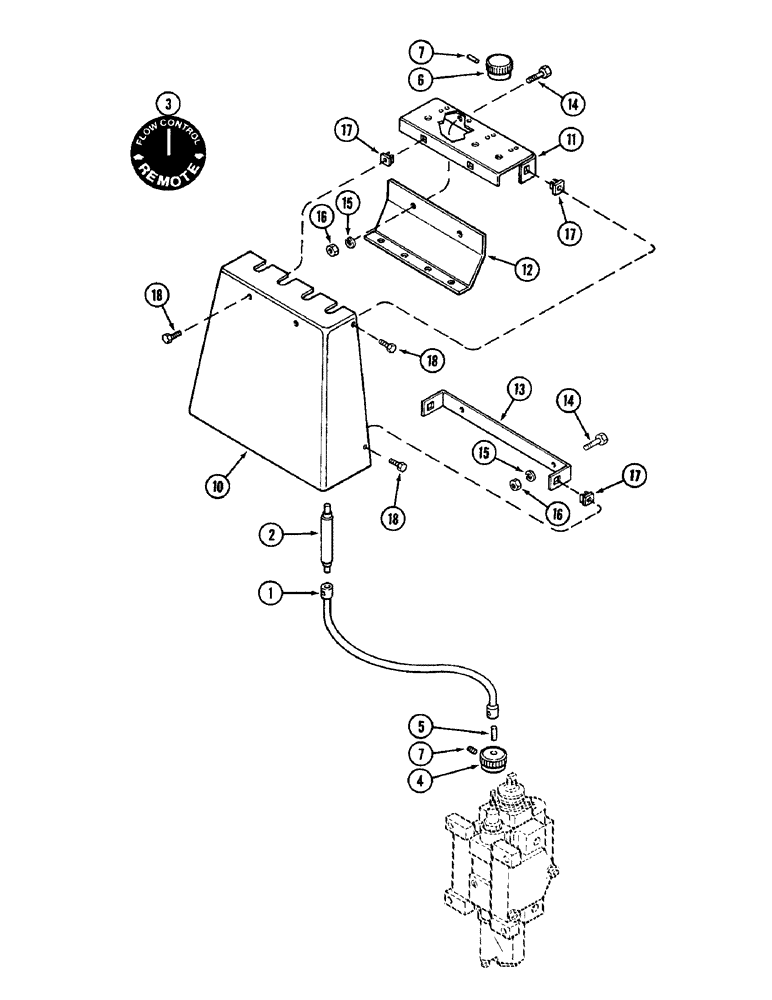

Запчасти Case IH 3294 (8-292) - REMOTE HYDRAULICS, REMOTE FLOW CONTROL KITS (08) - HYDRAULICS

A67476

KIT

- remote flow control (Order components), Includes: Ref. 1 - 7

2шт.

1

A149146

SHAFT

- flexible, flow control

1шт.

2

A147636

SHAFT

- rigid flow control knob

1шт.

3

321-4129

DECAL

- control knob

1шт.

4

A160814

KNOB

- valve, flow control

1шт.

5

A160815

PIN

- flexible shaft

1шт.

6

A160814

KNOB

- flow control

1шт.

7

178-1108

SET SCREW,Hex Soc, #10-32 x 5/8"

SCREW - socket headless set, no. 10-32 x 5/8 inch

3шт.

A67475

KIT

- console, remote flow control (Order components), Includes: Ref. 10 - 18

1шт.

10

A160259

PANEL

SHROUD - flow control

1шт.

11

A160256

SUPPORT

- flow control shroud

1шт.

12

A160257

BRACKET

- flow control

1шт.

13

A160314

KNOB

BRACKET - flow control

1шт.

14

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.

15

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

16

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

17

A67319

NUT

- shroud

6шт.

18

187-1900

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW - 1/4-20 x 3/4 inch

6шт.
