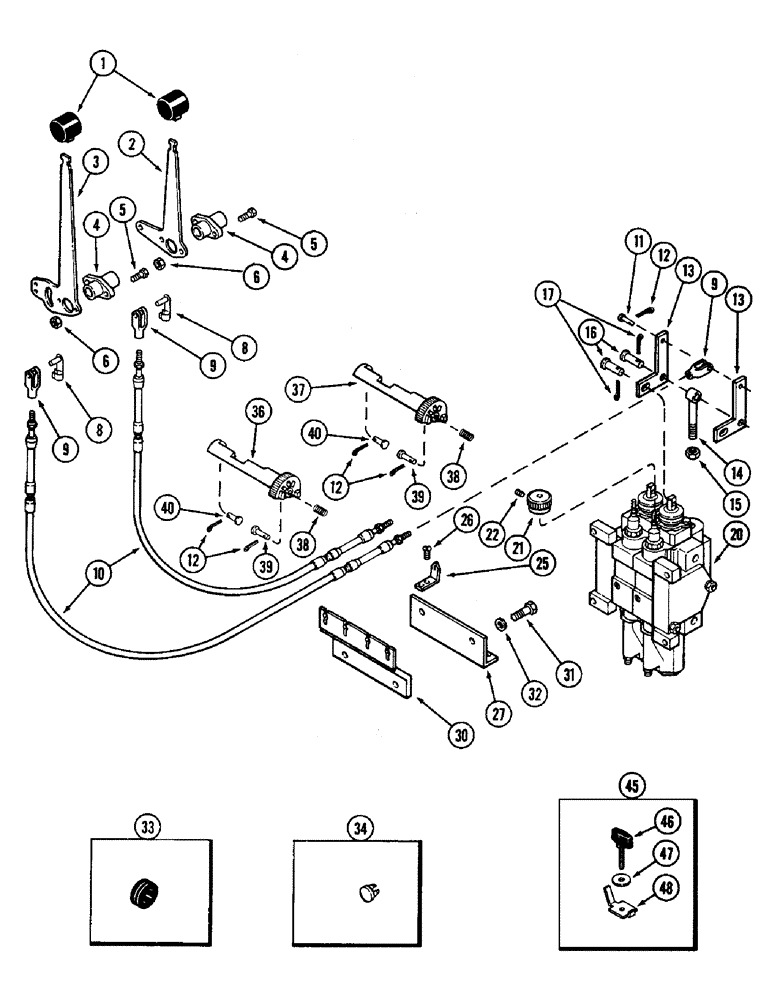

Запчасти Case IH 3294 (8-290) - REMOTE HYDRAULICS, CONTROL LINKAGE, 2 CIRCUIT SYSTEM (08) - HYDRAULICS

1

A177438

KNOB

- hand lever (Replaces A139945), Includes: Ref. 2 - 40

2шт.

2

A141393

LEVER

- inner

1шт.

3

A162858

LEVER

- outer

1шт.

4

A160500

BUSHING,15.95mm ID x 25.4mm OD x 55.37mm L

BEARING - lever

2шт.

5

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

6

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

4шт.

8

A149683

PIN

- yoke spring

2шт.

9

213-1

ADJUSTABLE CLEVIS,#10-32

YOKE - cable

4шт.

10

A141402

CABLE

- control, Serial Range: lever-valve

2шт.

11

A67313

PIN

- bellcrank

2шт.

12

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

6шт.

13

A145598

LEVER

- bellcrank

4шт.

14

A145597

EYE

- bellcrank

2шт.

15

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex jam, 3/8 inch NC

2шт.

16

141-54

CLEVIS PIN,3/8" x 1 1/16"

4шт.

17

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

20

REF

INSTRUCTION

VALVE - remote (See Figure 8-312 and 8-314)

1шт.

21

A160814

KNOB

- flow control

2шт.

22

178-1108

SET SCREW,Hex Soc, #10-32 x 5/8"

SCREW - socket head cone point, no. 10-32 x 5/8 inch

2шт.

25

A64179

INDEX

- flow control

2шт.

26

187-1037

SELF-TAP SCREW,Slotted Pan Hd, #8 x 3/8"

SCREW - round head self-tapping, no. 8 x 3/8 inch

4шт.

27

A145804

BRACKET

- flow control index

1шт.

30

A145021

PLATE

- remote cable mounting

1шт.

31

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

32

95-6

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch (11 x 25 x 2 mm)

2шт.

33

A141389

GROMMET

- cable

1шт.

34

A67295

PLUG

- cable retaining, 9/16 inch (14 MM) diameter head

1шт.

34

A162961

PLUG

- cable retaining, 3/4 inch (19 MM) diameter head

1шт.

36

A162861

QUADRANT

- inner

1шт.

37

A162860

QUADRANT

- outer

1шт.

38

A164976

SPRING

- lockout

2шт.

39

A67313

PIN

- connecting

2шт.

40

141-51

CLEVIS PIN,3/16" x .580"

PIN - remote lockout

2шт.

45

A67602

KIT - lever lockout (Order components), Includes: Ref. 46 - 48

1шт.

46

A162958

BUTTON

KNOB - lockout, kit

1шт.

47

195-128

WASHER,5/16"

- flat, 3/8 x 1-1/8 x 1/16 inch (10 x 29 x 2 MM), lockout kit

1шт.

48

A176175

CLAMP

- knob retaining, lockout kit

1шт.
