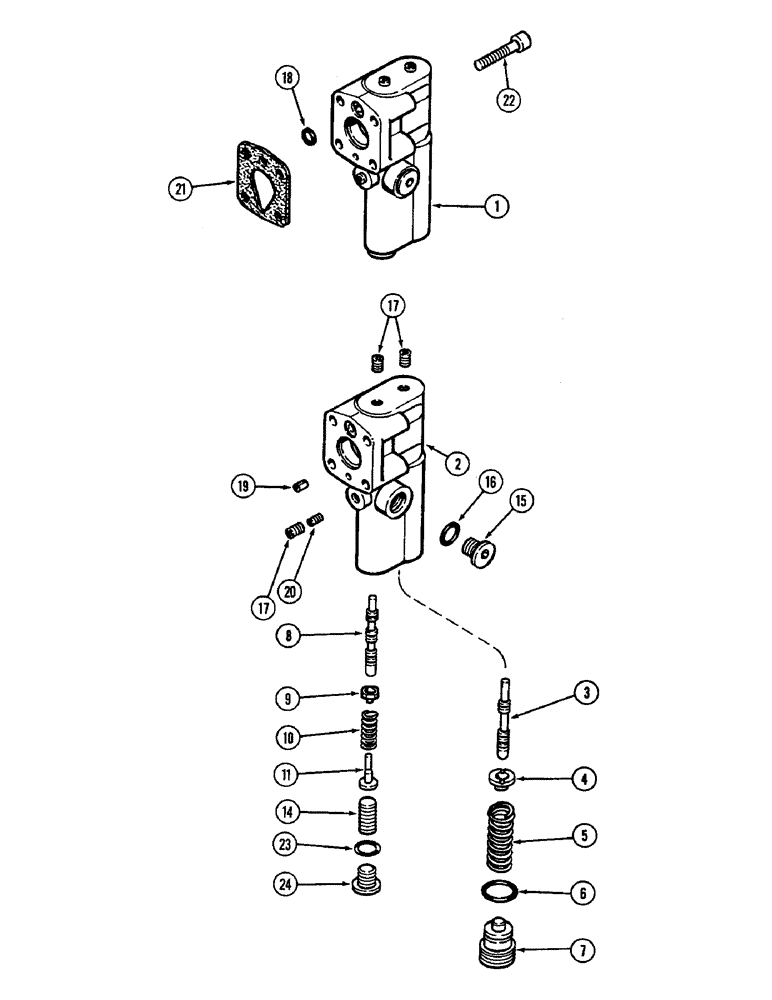

Запчасти Case IH 3294 (8-288) - HYDRAULICS, GEAR AND PISTON PUMP ASSEMBLY (08) - HYDRAULICS

A166504

PUMP

ASSEMBLY - complete, hydraulic, Includes: Ref. 1 - 24 and seal and gasket kit in this figure and parts in Figures 8-280 thru 8-286

1шт.

1346425C1

REMAN-HYD PUMP

3294 (1/83-12/85)

1шт.

1346426C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

A49493

BALANCE VALVE

COMPENSATOR ASSEMBLY - pump, Includes: Ref. 2 - 24 and seal and gasket kit

1шт.

2

A49438

VALVE

BODY - valve

1шт.

3

A47316

SPOOL

- pressure limiter

1шт.

4

A47317

PLUG

SEAT - pressure limiter spool

1шт.

5

A47318

SPRING

- pressure limiter spool

1шт.

6

A65918

O-RING,0.551" ID x 0.691" OD

- pressure plug

1шт.

7

A47320

PLUG

- pressure limiter spool adjusting

1шт.

8

A47321

SPOOL

- load sensing

1шт.

9

A49441

SEAT

- load sensing spool

1шт.

10

A49439

SPRING

- load sensing spool

1шт.

11

A49442

SEAT

- spring

1шт.

14

A49440

SET SCREW,Lock

- set

1шт.

15

278548

PLUG,Hex, 7/16"-20 ORB

2шт.

16

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 23/64 x 1/2 x 5/64 inch (9 x 13 x 2 MM)

1шт.

17

221-850

PLUG,Hex Soc, 1/16"-27

- compensator

3шт.

18

A138385

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

- compensator

1шт.

19

A47645

PLUG

- valve body

1шт.

20

A47327

FITTING

ORIFICE - valve body

1шт.

21

A49436

GASKET

- valve

1шт.

22

165-26

HEX SOC SCREW,#10 - 24 x 1 1/4"

SCREW - socket head cap, no. 10 x 1-1/4 inch NC

4шт.

23

A49435

O-RING

- plug

1шт.

24

A49437

PLUG

- spool

1шт.

A47567

KIT

- seal and gasket (See Figure 8-280)

1шт.
