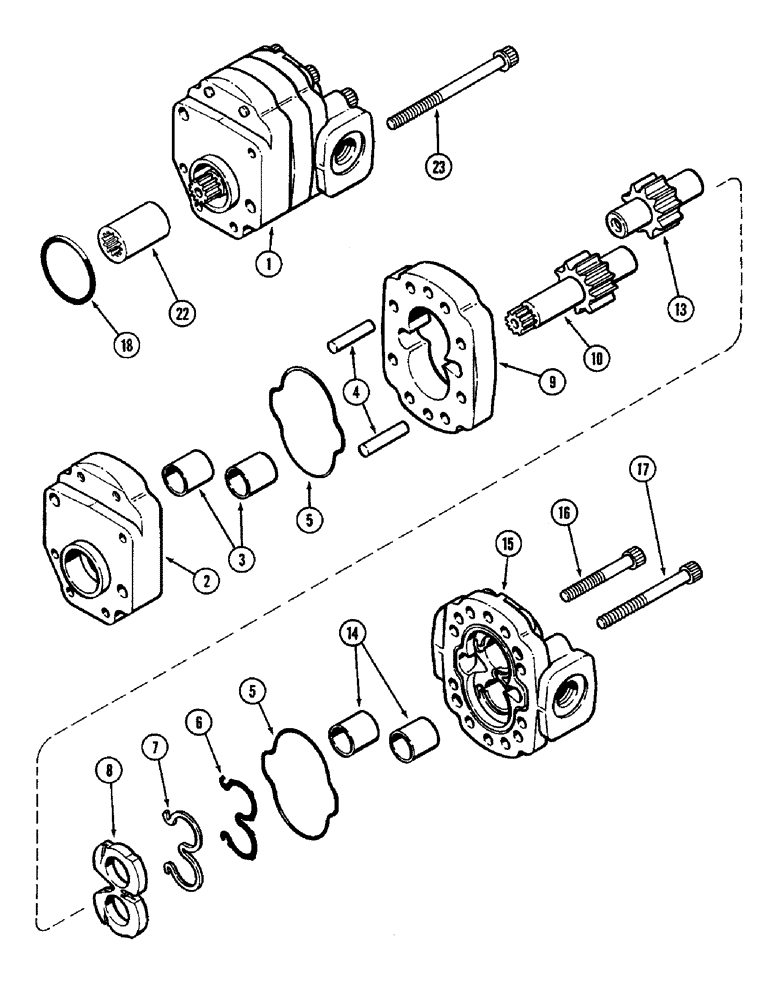

Запчасти Case IH 3294 (8-286) - HYDRAULICS, GEAR AND PISTON PUMP ASSEMBLY (08) - HYDRAULICS

A166504

PUMP

ASSEMBLY - complete, hydraulic, Includes: Ref. 1 - 23 in this figure and parts in Figures 8-280 thru 8-284 and 8-288

1шт.

1346425C1

REMAN-HYD PUMP

3294 (1/83-12/85)

1шт.

1346426C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

A47928

PUMP

ASSEMBLY - gear type, Includes: Ref. 2 - 17

1шт.

84372945R

REMAN-HYD PUMP

3294 (1/83-12/85), Reman for New PN A47928

1шт.

84372945C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - front

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - front cover

2шт.

4

NSS

NOT SOLD SEPARAT

DOWELS - body locating

2шт.

5

NSS

NOT SOLD SEPARAT

SEAL - front and rear cover

2шт.

6

NSS

NOT SOLD SEPARAT

SEAL - rubber

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - teflon

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE - wear

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

10

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

13

NSS

NOT SOLD SEPARAT

GEAR - idler

1шт.

14

NSS

NOT SOLD SEPARAT

BUSHING - rear cover

2шт.

15

NSS

NOT SOLD SEPARAT

COVER - rear

1шт.

16

NSS

NOT SOLD SEPARAT

SCREW - short

6шт.

17

NSS

NOT SOLD SEPARAT

SCREW - long

4шт.

18

F98069

O-RING

- gear pump

1шт.

22

A47312

COUPLING, BREAK AWAY

COUPLING - gear pump to valve block

1шт.

23

A47412

SCREW,M8 x 100mm

- ferry cap, M8 x 100 mm

2шт.

A47639 is an 8 x 110 mm screw.

1шт.

A47643

SEAL

KIT - seal, gear pump (Includes: Ref. 2 - 17)

1шт.
