Запчасти Case IH 3294 (8-284) - HYDRAULICS, GEAR AND PISTON PUMP ASSEMBLY (CONTD) (08) - HYDRAULICS

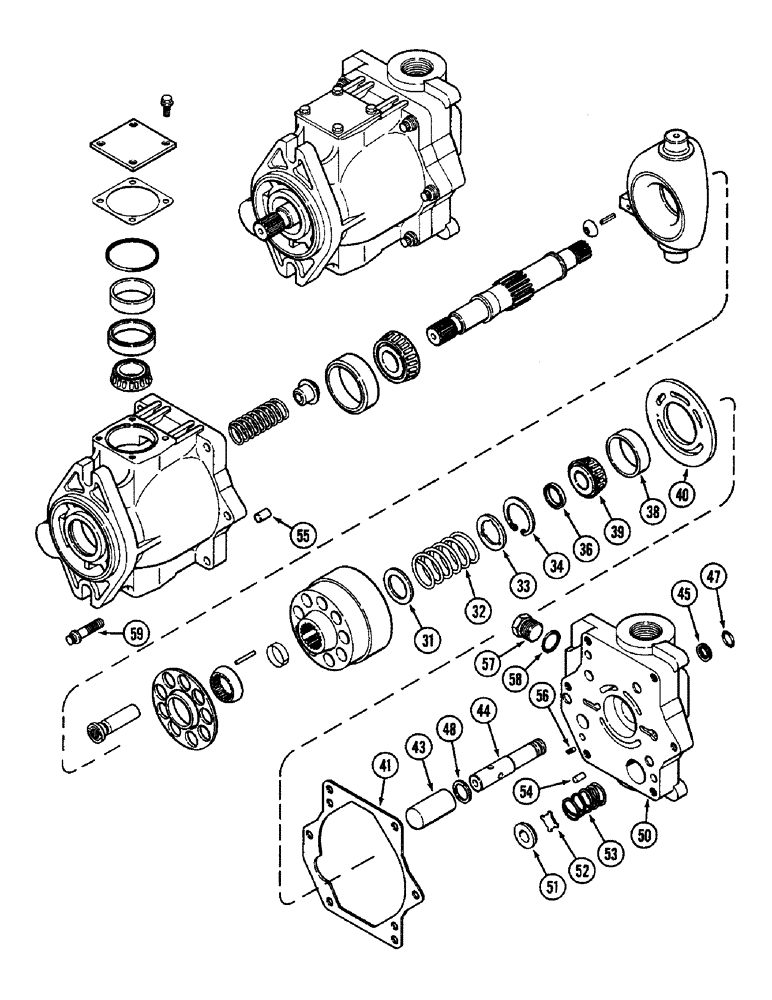

Схема запчастей Case IH 3294 - (8-284) - HYDRAULICS, GEAR AND PISTON PUMP ASSEMBLY (CONTD) (08) - HYDRAULICS
44
51
47
43
50
41
55
53
59
39
58
33
31
48
34
40
56
36
45
54
57
32
52
38

Артикул

Название

Примечание

Количество

A166504

PUMP

ASSEMBLY - complete, hydraulic, Includes: piston type pump assembly and Ref. 31 - 59 in this figure and parts in Figures 8-280, 8-282, 8-286 and 8-288

1шт.

1346425C1

REMAN-HYD PUMP

3294 (1/83-12/85)

1шт.

1346426C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - piston type, Includes: Ref. 31 - 41

1шт.

31

A47299

WASHER

- spring, front

1шт.

Part of Pump Block Kit, P/N N8303

1шт.

32

A47298

SPRING

- cylinder block

1шт.

Part of Pump Block Kit, P/N N8303

1шт.

33

A47300

SPRING WASHER

WASHER - spring, rear

1шт.

34

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, , cylinder block 1.625", Int, #162

1шт.

Part of Pump Block Kit, P/N N8303

1шт.

A47303

KIT

- spacer, rear bearing, Includes: Ref. 36

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.139 inch (3.53 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.142 inch (3.61 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.145 inch (3.68 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.148 inch (3.76 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.151 inch (3.84 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.154 inch (3.91 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.157 inch (3.99 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.160 inch (4.06 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.163 inch (4.14 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.166 inch (4.22 MM)

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.169 inch (4.29 MM)

1шт.

38

FB14849

BEARING CUP

- bearing, 1-31/32 inch (50 MM) OD

1шт.

39

FB14850

ROLLER BEARING

CONE - bearing, 27/32 inch (21 MM) ID

1шт.

40

A47302

PLATE

- wafer

1шт.

41

A47280

GASKET,0.53mm Thk

- body

1шт.

A47305

KIT

- piston rod, Includes: Ref. 43 - 45

1шт.

43

NSS

NOT SOLD SEPARAT

PISTON - rod (Reference no. A47338)

1шт.

44

NSS

NOT SOLD SEPARAT

ROD - piston (Reference no. A47339)

1шт.

45

A47340

RING

- snap, piston rod

1шт.

47

H756783

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

- 1/2 x 11/16 x 3/32 inch (13 x 17 x 2 MM)

1шт.

48

A47479

BUSHING

SPACER - piston limit

1шт.

50

A49434

PIPE

BLOCK - valve

1шт.

51

A47306

PLUG

SEAT - valve block

1шт.

52

A47307

VALVE

- check

1шт.

53

A47308

SPRING

- valve block

1шт.

54

A47309

PIN

- headless, 1/4 x 1/2 inch

1шт.

55

A47301

PIN

- housing to valve body

2шт.

56

221-1849

PLUG

- pipe, 1/8-27 inch

1шт.

57

86512512

PLUG,7/8" - 14 ORB

Valve body Hex Hd, 7/8"-14 ORB

1шт.

58

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 MM)

1шт.

59

166-47

12 PT SCREW,Flg, 3/8" - 16 x 1 1/2", Gr 8

SCREW - 12 point head, 3/8 NC x 1-1/2 inch

6шт.

A47567

KIT

- seal and gasket (See Figure 8-280)

1шт.

N8303

KIT

BLOCK KIT - pump, Includes: Ref. 31, 32, 33, and 34 in this figure and parts in Figure 8-282

1шт.

Выбрано товаров: 45
