Запчасти Case IH 3294 (8-278) - HYDRAULICS, TRANSMISSION LUBRICATION, TRANSMISSION S/N 16264576 AND AFTER (08) - HYDRAULICS

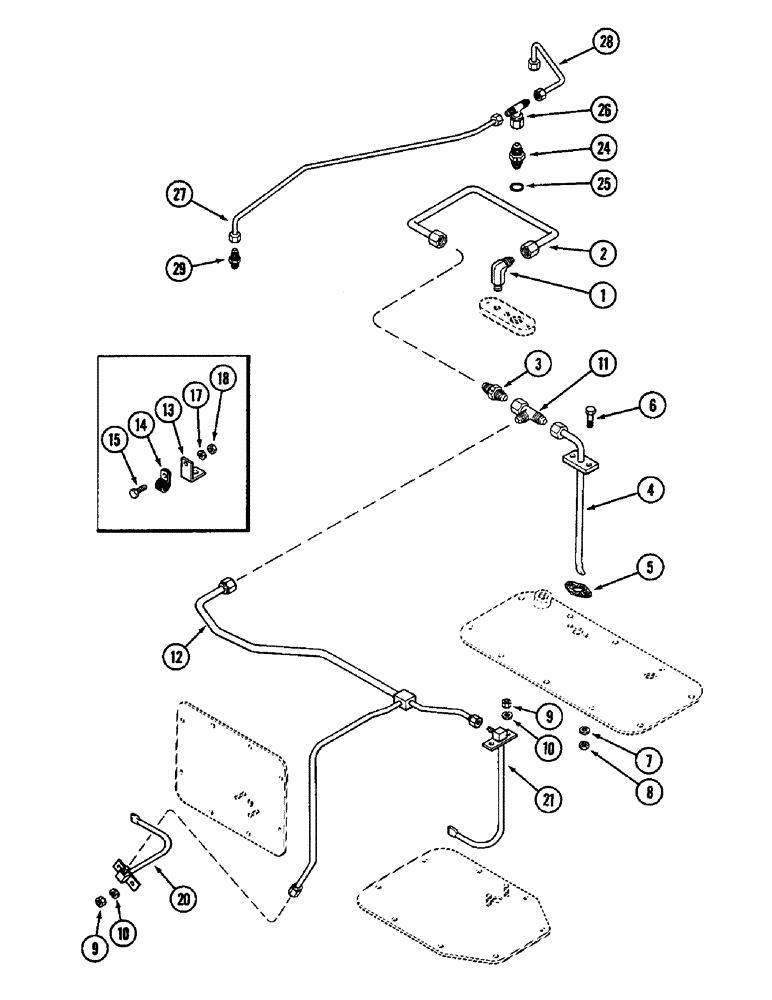

Схема запчастей Case IH 3294 - (8-278) - HYDRAULICS, TRANSMISSION LUBRICATION, TRANSMISSION S/N 16264576 AND AFTER (08) - HYDRAULICS
12
4
29
13
11
28
26
20
8
21
9
9
17
7
14
27
5
8
24
10
18
10
15
25
1
2
3

Артикул

Название

Примечание

Количество

1

218-1084

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2"-12 NPTF, XLG

- 90 degree, 1/2 tube 3/4-16 thread x 1/4 inch PT

1шт.

2

A167843

TUBE

- spiral bevel supply

1шт.

3

A160216

FITTING

VALVE - check, lubrication tube (Replaces A167842)

1шт.

4

A165324

PIPE

TUBE - spiral bevel lubrication

1шт.

5

A38212

GASKET

- lubrication tube

1шт.

6

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

7

92-5

LOCK WASHER,5/16"

2шт.

8

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC

2шт.

9

25-106

NUT,3/8"-16, G5

- hex, 3/8 inch NC

4шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- valve to lubrication tubes

1шт.

12

A177203

TUBE

- lubrication, transmission gear

1шт.

13

A162527

BRACKET

- tube retaining clamp

2шт.

14

49838

CLAMP

- tube retaining

2шт.

15

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

17

92-5

LOCK WASHER,5/16"

2шт.

18

9635082

NUT,5/16" - 18, Gr 5

2шт.

20

A179070

PIPE

TUBE - lubrication, second and third gear

1шт.

21

A168919

PIPE

TUBE - lubrication, transfer gear

1шт.

24

A160216

FITTING

VALVE - check

1шт.

Used on tractors equipped with 3/4 inch tapped hole charge pump outlet cover.

1шт.

26

218-856

TEE,37 Degree, 9/16"-18, x 3/4"-16, Fem Sw Br

ASSEMBLY - swivel, 3/8 tube 9/16-18 x 1/2 tube 3/4-16 inch thread

1шт.

Used on tractors equipped with 3/4 inch tapped hole charge pump outlet cover.

1шт.

27

A180575

TUBE

- planetary lubrication, right

1шт.

28

A180574

TUBE

- planetary lubrication, left

1шт.

29

A149515

CONNECTOR, ELEC

CONNECTOR - straight

2шт.

25

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 inch (13 x 17 MM)

1шт.

Used on tractors equipped with 3/4 inch tapped hole charge pump outlet cover.

1шт.

Выбрано товаров: 28
