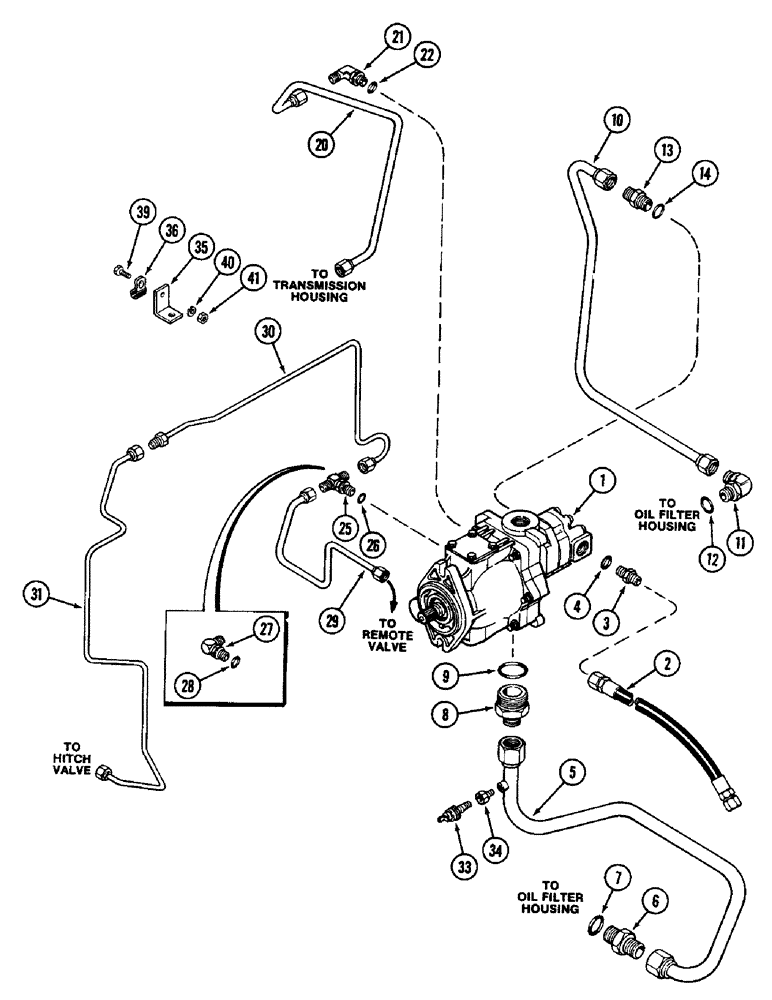

Запчасти Case IH 3294 (8-270) - HYDRAULICS, HYDRAULIC PUMP CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic (See Figure 8-280)

1шт.

2

A166607

HYDRAULIC HOSE,0.50" ID x 37.00", SAE 100R2 Type A per SAE J517

- Pump to brake valve 0.50" ID x 37.00", SAE 100R2 Type A per SAE J517

1шт.

3

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, 1/2 tube 3/4-16 inch thread, Incl. Ref 4

1шт.

5

A160222

TUBE

- suction, Serial Range: filter-pump

1шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, 3/4 tube 1-1/16-12 inch thread, Incl. Ref. 7

1шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1-23/32 x 1/8 inch (30 x 44 x 3 MM)

1шт.

8

A147128

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - straight, pump, Includes: Ref. 9

1шт.

9

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-23/32 x 1-27/32 x 7/64 inch (44 x 47 x 3 MM)

1шт.

10

A160218

TUBE

- suction, steering

1шт.

11

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90 degree adjustable, 5/8 tube 7/8-14 inch thread, Incl. Ref. 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 MM)

1шт.

13

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - straight, 5/8 tube 7/8-14 inch thread, Includes: Ref. 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 MM)

1шт.

20

A160223

TUBE

- pump drain

1шт.

21

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90 degree adjustable, 1/2 tube 3/4-16 x 5/8 tube 7/8-14 inch thread, Includes: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 MM)

1шт.

25

218-5510

TEE,9/16"-18, 37 Degree x 7/16"-20, O-Ring Br

FITTING ASSEMBLY - compensator, 1/4 inch tube x 7/16-20 inch, Includes: Ref. 26

1шт.

26

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/64 inch (9 x 13 x 2 MM)

1шт.

27

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

ASSEMBLY - 90 degree adjustable, 1/4 tube 7/16-20 x 3/8 tube 9/16-18 inch thread (With hitch), Incl. Ref. 28

1шт.

28

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/64 inch (9 x 13 x 2 MM) (With hitch)

1шт.

29

A164627

TUBE

- pump to remote valve

1шт.

30

A162530

PIPE

TUBE - hitch valve pilot, left

1шт.

31

A162529

TUBE

- hitch valve pilot, right

1шт.

33

A66737

SWITCH, PRESSURE

SWITCH - filter pressure sending

1шт.

34

A161432

FITTING

SNUBBER -, Serial Range: switch-tube

1шт.

35

A162527

BRACKET

- clamp retaining

1шт.

36

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- tube retaining

1шт.

39

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

40

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

41

9635082

NUT,5/16" - 18, Gr 5

1шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 MM)

1шт.
