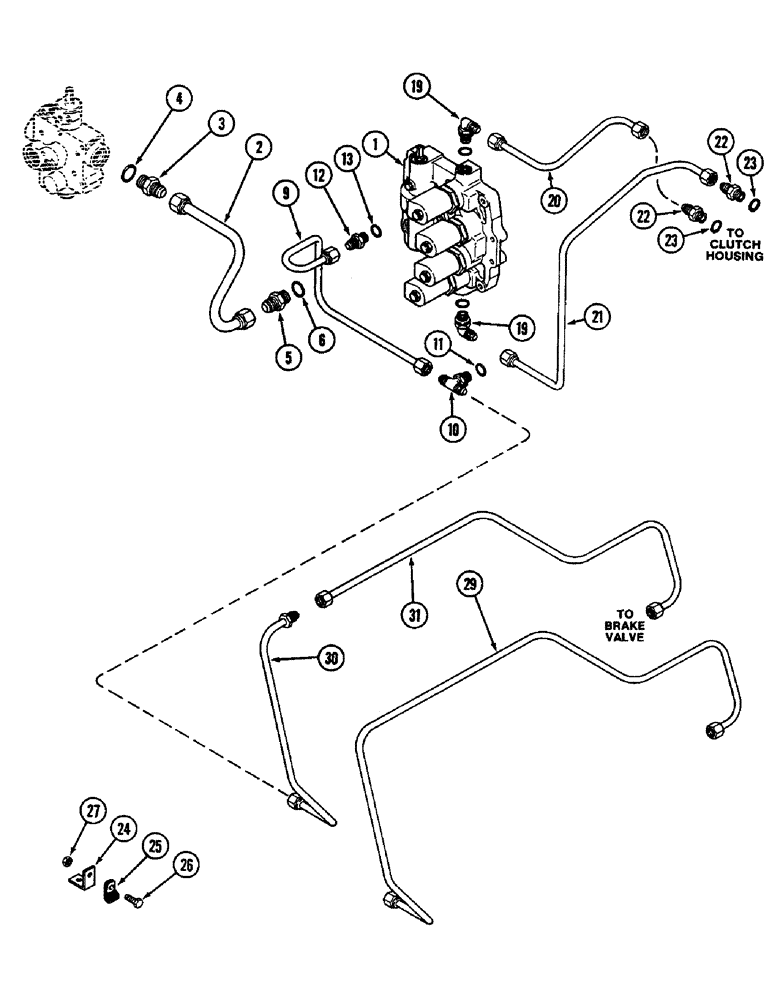

Запчасти Case IH 3294 (8-266) - HYDRAULICS, ELECTRIC SHIFT CONTROL CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

MANIFOLD ASSEMBLY - electric shift (See Figure 6-166)

1шт.

2

A176435

TUBE

- regulator valve to manifold (Replaces A166532)

1шт.

3

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - 3/4 inch 1-1/16-12 inch thread, Incl. Ref. 4

1шт.

4

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 7/64 inch (24 x 29 x 3 MM)

1шт.

5

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR ASSEMBLY - 3/4 tube 1-1/16-12 x 5/8 tube 7/8-14 inch thread, Includes: Ref. 6

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/ 64 x 3/32 inch (19 x 24 x 2 MM)

1шт.

9

A166533

TUBE

- transmission sump to control valve

1шт.

10

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - adjustable, 1/2 tube 3/4-16 inch thread, Includes: Ref. 11

1шт.

12

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, 1/2 tube 3/4-16 inch thread, Incl. Ref 13

1шт.

19

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - adjustable, 1/2 tube 3/4-16 inch thread

2шт.

20

A166531

TUBE

- fill, (C1) clutch

1шт.

21

A166530

TUBE

- fill, (C4) clutch

1шт.

22

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, 1/2 tube 3/4-16 inch thread, Incl. Ref 23

2шт.

24

A164948

BRACKET

- brake tube clamp

1шт.

25

49838

CLAMP

- oil cooler tube retaining

1шт.

26

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

29

NSS

NOT SOLD SEPARAT

TUBE - oil cooler return, J I Case installed (Order ref 30 and 31) (Reference no. A167133)

1шт.

30

A167134

TUBE

- oil cooler return, right (For service)

1шт.

31

A167135

TUBE

- oil cooler return, left (For service)

1шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 MM)

1шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 MM)

1шт.

23

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 MM)

1шт.
