Запчасти Case IH 3294 (1-014) - PICTORIAL INDEX, REMOTE HYDRAULICS (00) - PICTORIAL INDEX

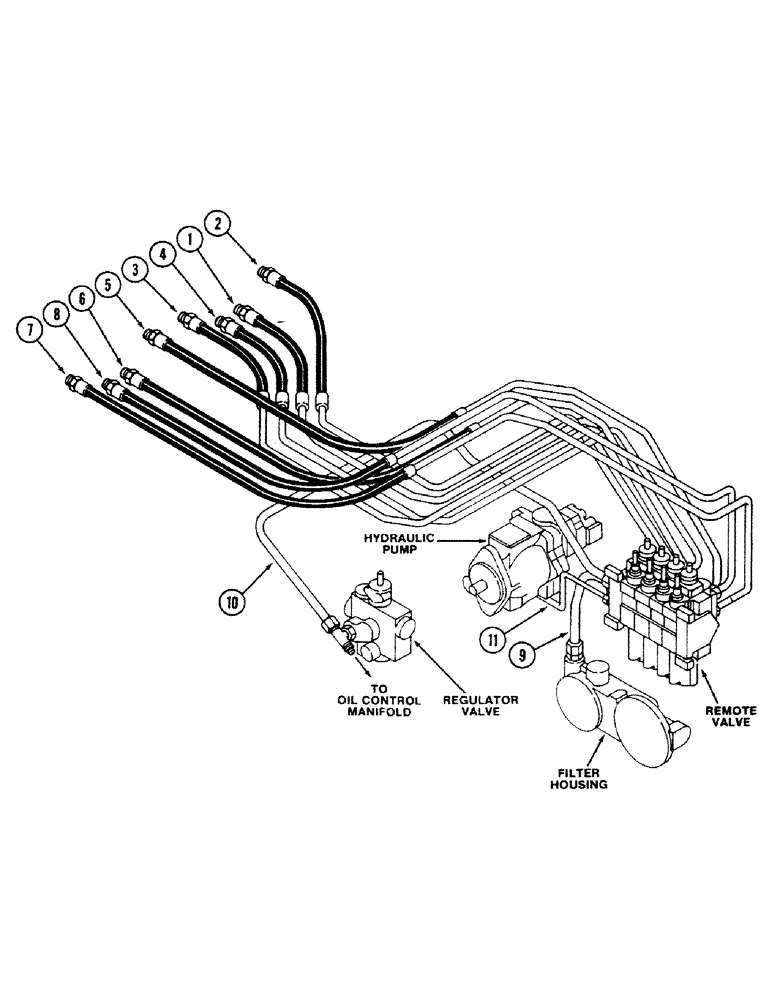

Схема запчастей Case IH 3294 - (1-014) - PICTORIAL INDEX, REMOTE HYDRAULICS (00) - PICTORIAL INDEX
7
6
9
3
2
10
11
8
4
5
1

Артикул

Название

Примечание

Количество

1

No. 1 Remote Coupling Hose, Pages 8-295, 297

1шт.

2

No. 2 Remote Coupling Hose, Pages 8-295, 297

1шт.

3

No. 3 Remote Coupling Hose, Pages 8-295, 297

1шт.

4

No. 4 Remote Coupling Hose, Pages 8-295, 297

1шт.

5

No. 5 Remote Coupling Hose, Pages 8-299 through 8-307

1шт.

6

No. 6 Remote Coupling Hose, Page 8-308

1шт.

7

No. 7 Remote Coupling Hose, Page 8-309

1шт.

8

No. 8 Remote Coupling Hose, Page 8-309

1шт.

9

Remote Valve to Filter Housing Tube, Pages 8-295, 297

1шт.

10

Regulator Valve to Remote Valve Tube, Pages 8-295, 297

1шт.

11

Pump to Remote Valve Tube, Page 8-271

1шт.

Выбрано товаров: 11
