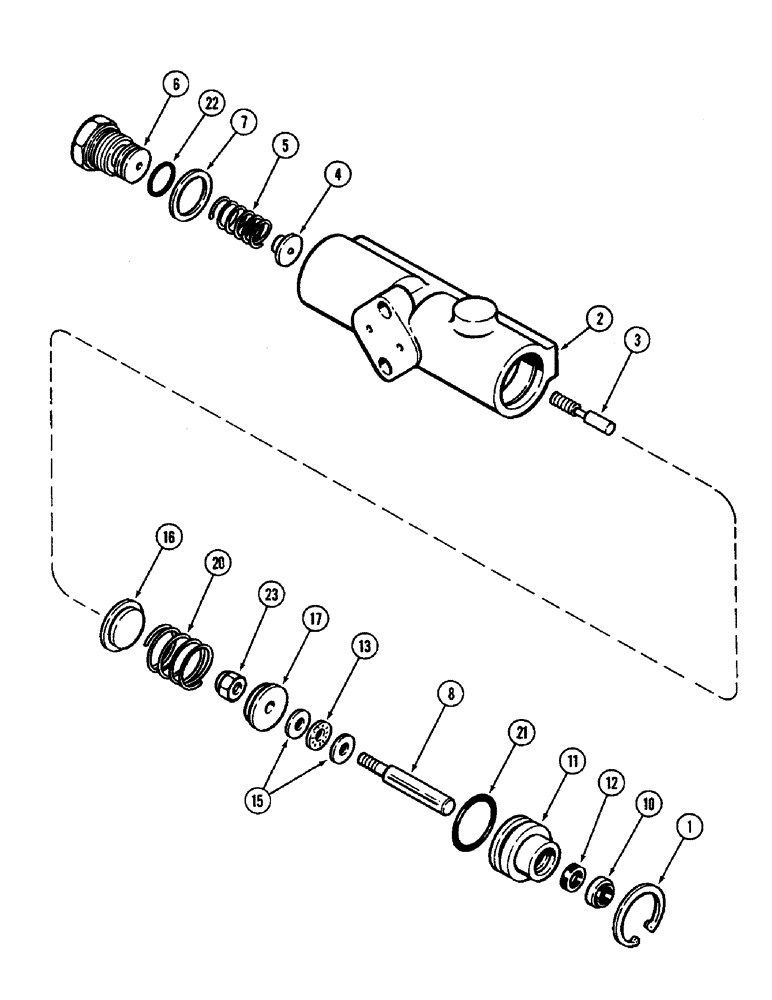

Запчасти Case IH 3294 (7-258) - PRESSURE REGULATOR VALVE, IF EQUIPPED (07) - BRAKES

A147690

VALVE

ASSEMBLY - pressure regulating, Includes: Ref. 1 - 23 and valve seal kit

1шт.

1

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve (Order A147690) (Reference no. A47859)

1шт.

3

A47860

SPOOL

- valve

1шт.

4

A47861

GUIDE

- spring

1шт.

5

A47962

VALVE POPPET

SPRING - spool

1шт.

6

A47863

PLUG

- orifice

1шт.

7

A47864

WASHER

- orifice plug, copper

1шт.

Part of Valve Seal Kit, P/N A48463

1шт.

8

A47865

STEM

- valve

1шт.

10

A47866

WIPER SEAL

- valve stem

1шт.

Part of Valve Seal Kit, P/N A48463

1шт.

11

A47867

GLAND

- valve stem

1шт.

12

A47868

RING

- gland

1шт.

Part of Valve Seal Kit, P/N A48463

1шт.

13

A47869

BEARING

- thrust

1шт.

15

A47870

SHIM

RACE - thrust bearing

2шт.

16

A47871

GUIDE

- spring

1шт.

17

A47872

GUIDE

- spring

1шт.

20

A47873

SPRING

- valve

1шт.

21

D54277

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

- gland

1шт.

Part of Valve Seal Kit, P/N A48463

1шт.

22

L33213

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

- orifice plug

1шт.

Part of Valve Seal Kit, P/N A48463

1шт.

23

131-30

LOCK NUT,1/4"-28, G8

NUT - hex lock, 1/4 inch NF

1шт.

A48463

SEAL

KIT - valve, Includes: Ref. 7, 10, 12, 21 and 22

1шт.
