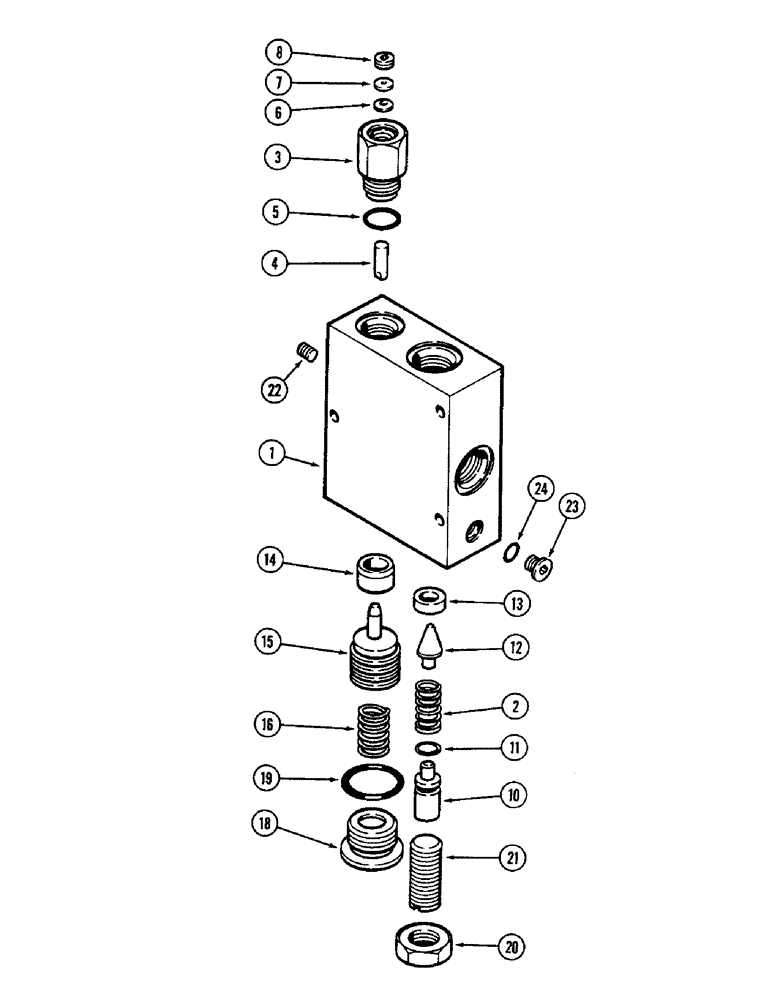

Запчасти Case IH 3294 (7-256) - PRESSURE CONTROL VALVE, IF EQUIPPED (07) - BRAKES

A147688

VALVE

ASSEMBLY - pressure control, Includes: Ref. 1 - 24

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve (Order A147688) (Reference no. A47874)

1шт.

2

A47875

SPRING

- valve

1шт.

A47876

ADAPTER

KIT - unloading, Includes: Ref. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

ADAPTER - unloading (Order A47876) (Reference no. A47877)

1шт.

4

A47878

PISTON

- adapter

1шт.

6

A47879

WASHER

- stop

1шт.

7

A47880

WASHER

- orifice

1шт.

8

A47881

SCREW,Lock, 7/16" - 20 x 1.56"

- lock

1шт.

10

S115827

RETAINER

- spring

1шт.

11

S115828

O-RING,0.301" ID x 0.441" OD x 0.7"

- retainer (Order N8539)

1шт.

12

S115830

CONE

- valve

1шт.

13

S115831

SEAT

- valve cone

1шт.

14

S115835

SEAT

- valve

1шт.

15

S115836

PISTON

- valve

1шт.

16

S115837

SPRING

- piston

1шт.

18

S115845

PLUG

- special

1шт.

19

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8 inch (19 x 23 x 3 MM)

1шт.

20

129-167

JAM NUT,Jam, 5/8"-18, G5

- hex jam, 5/8 inch NF

1шт.

21

176-291

SCREW,Sl Hdls, 5/8" - 18 x 1 1/2", Flat Pt

- set, 5/8 NF x 1-1/2 inch

1шт.

22

178-1302

SCREW,Hdls Hex Skt, #10 - 32 x 1/4", Flat Pt

- hex socket set, no. 10-32 x 1/4 inch

1шт.

23

278548

PLUG,Hex, 7/16"-20 ORB

Assy, 1/4 tube, Incl Ref 24 Hex Soc, 7/16"-20 ORB

1шт.

24

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/64 inch (9 x 13 x 2 MM)

1шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32 inch (13 x 17 x 2 MM)

1шт.
