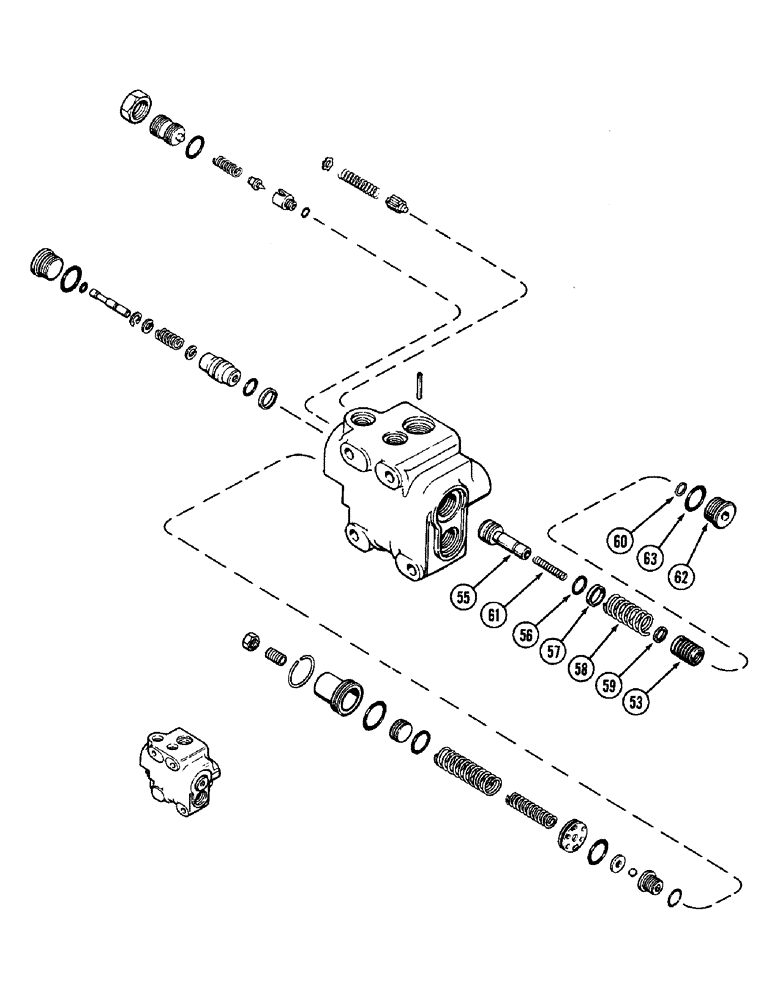

Запчасти Case IH 3294 (7-244) - BRAKE VALVE ASSEMBLY (CONTD) (07) - BRAKES

G105128

VALVE, BRAKE

VALVE ASSEMBLY - brake, Includes: valve pressusre regulator assembly and Ref. 53 - 63 in this figure and parts in Figure 7-242

1шт.

NSS

NOT SOLD SEPARAT

PRESSURE REGULATOR ASSEMBLY - valve (Reference no. G105034), Includes: Ref. 53 - 60

1шт.

53

G105038

SPOOL

- pressure regulator

1шт.

NSS

NOT SOLD SEPARAT

PISTON ASSEMBLY - pressure regulator (Reference no. G105035), Includes: Ref. 55 - 57

1шт.

55

G105037

PISTON

- pressure regulator

1шт.

56

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- piston

1шт.

57

G100797

RING

SEAL - ring

1шт.

58

G105036

SPRING

- regulator piston

1шт.

59

G102104

WASHER

- orifice

1шт.

60

G100792

RING

- retaining

1шт.

61

G100794

SPRING

- regulator piston return, 1/4 inch (6 MM) OD

1шт.

62

86625138

PLUG,7/18" - 14

Assy, Piston, Includes Ref. 63 Hex Soc, 7/8"-14 ORB

1шт.

63

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 5/8 x 3/32 inch (19 x 16 x 2 MM)

1шт.
