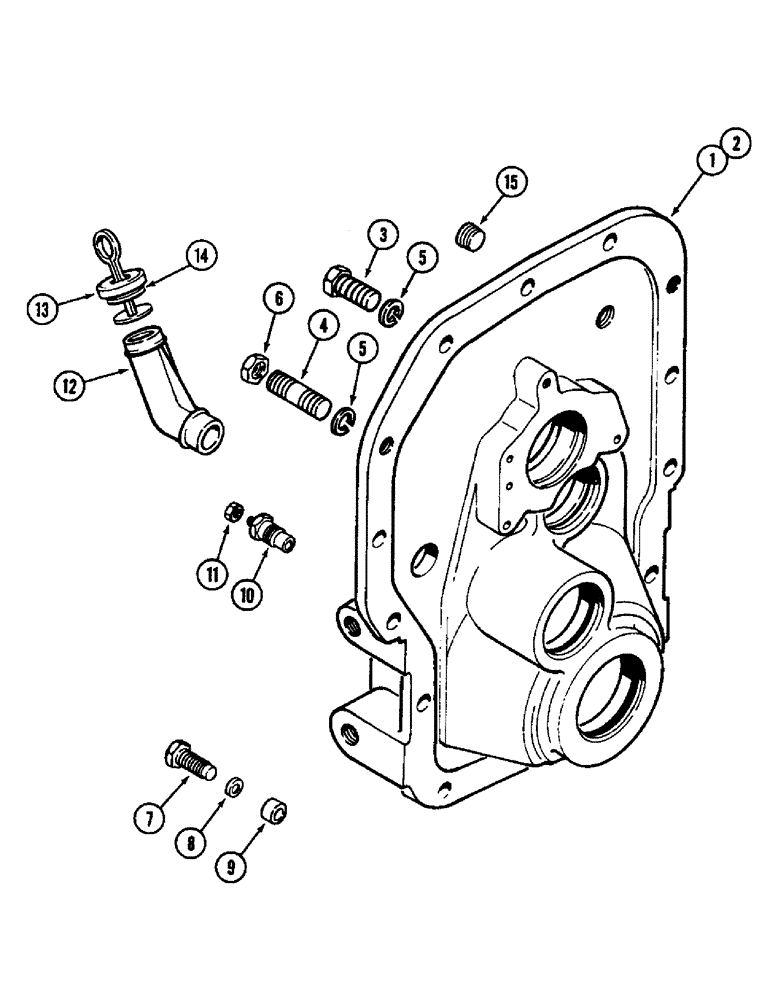

Запчасти Case IH 3294 (6-230) - PTO HOUSING (06) - POWER TRAIN

1

NSS

NOT SOLD SEPARAT

HOUSING - PTO (Order A67537 kit) (Reference no. A156900)

1шт.

3

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

10шт.

4

A29396

STUD

- 5/8 NC/NF x 2-7/8 inch

2шт.

5

A64303

WASHER

- lock, 5/8 inch

12шт.

6

129-127

NUT,5/8"-18, G5

2шт.

7

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

8

L30674

WASHER

- hardened

2шт.

9

A50011

SLEEVE

BUSHING - bolt

2шт.

10

A154283

SWITCH

- transmission temperature sending

1шт.

11

193-1000

NUT,Keps, w/LW,#10-32

- hex Keps, no. 10-32

1шт.

12

A150353

TUBE

- oil filler

1шт.

13

A64404

BREATHER

COVER - oil filler tube, Includes: Ref. 14

1шт.

14

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- breather

1шт.

15

221-845

PLUG,Hex Soc, 3/4"-14

- socket head, 3/4 inch PT

1шт.
