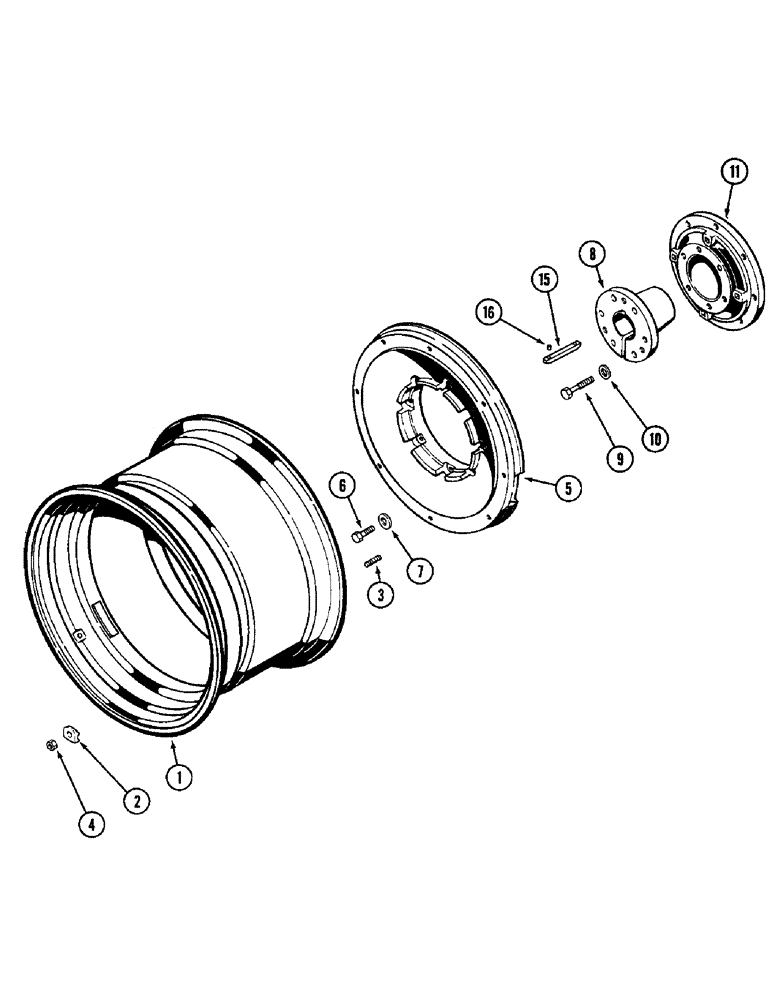

Запчасти Case IH 3294 (6-220) - REAR WHEELS, WITH 34 INCH (864 MM) RIMS (06) - POWER TRAIN

1

A33460

RIM

- wheel (For 23.1 x 34 tire)

2шт.

2

A166501

CLAMP

-, Serial Range: rim-wheel

16шт.

3

A60047

STUD

- 5/8 NC x 2-7/16 inch

16шт.

4

A27183

NUT

- hex, special, 5/8 inch NC

16шт.

5

A181844

WHEEL

- rear, universal hub (Replaces A57686)

2шт.

6

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- hex, 5/8 NC x 2-1/2 inch

16шт.

7

D31328

WASHER

- hardened (Replaces A64303)

16шт.

8

A59792

HUB

BUSHING - rear wheel hub

2шт.

9

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub

12шт.

10

D31328

WASHER

- 1-5/8 inch (41 MM)

12шт.

11

A59791

HUB

- universal

2шт.

15

A34890

BUCKET TOOTH KEY

KEY -, Serial Range: wheel-shaft

2шт.

16

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.
