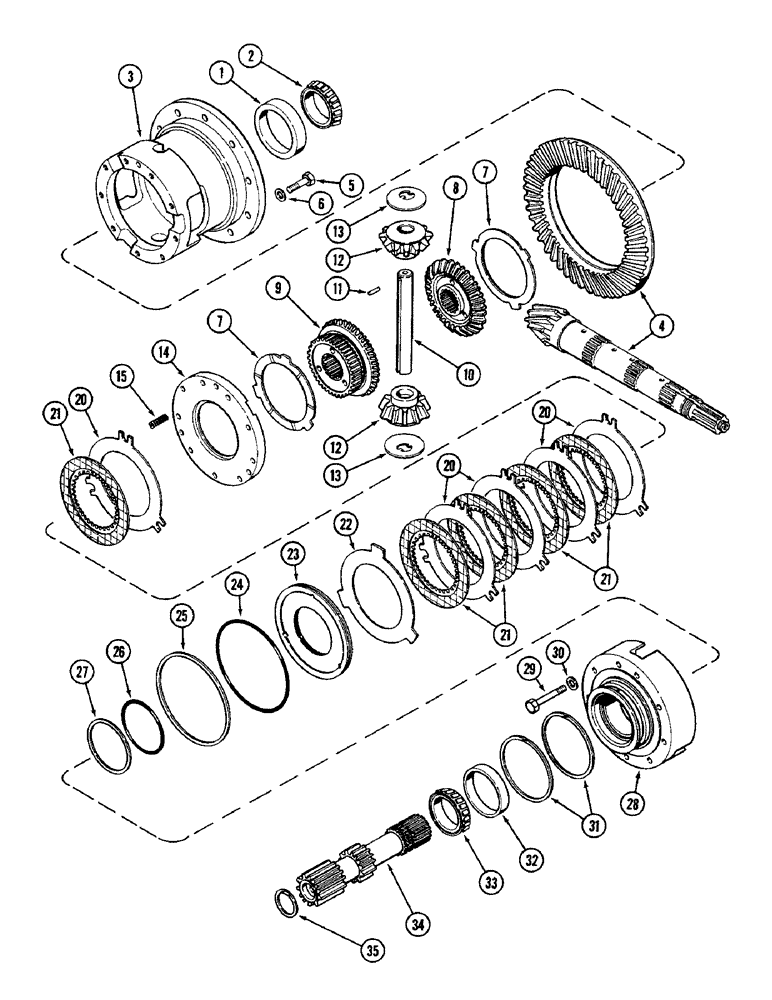

Запчасти Case IH 3294 (6-210) - DIFFERENTIAL ASSEMBLY, PINION GEAR, CLUTCH AND CAGE (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A67327
BEARING CUP,120 mm OD x 25 mm
CUP - bearing, cage 4-3/4 inch (121 MM) OD
1шт.
2
A67328
ROLLER BEARING,74.98mm ID x 29.5mm W
CONE - bearing, cage 1-5/32 inch (29 MM) ID
1шт.
3
A179507
HOUSING
CAGE - differential gear
1шт.
4
A168189
GEAR
SET - spiral bevel and countershaft (Matched set) (See Figure 6-208)
1шт.
5
26-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 8
- hex, 5/8 NC x 2 inch (Grade 8)
10шт.
6
A64303
WASHER
- 1-1/16 inch (27 MM)
10шт.
7
A153988
THRUST WASHER,137.92mm ID x 191.52mm OD x 2.39mm Thk
- thrust
2шт.
8
A154890
GEAR
- bevel, left
1шт.
9
A154891
GEAR
- bevel, right
1шт.
10
A168064
PIN,31.74mm OD x 254mm L
- differential pinion
1шт.
12
A179575
PINION
GEAR - pinion
2шт.
13
A179590
THRUST WASHER,32.05mm ID x 80mm OD x 2.39mm Thk
- thrust
2шт.
14
A154013
PLATE
- reaction, differential lock
1шт.
15
A152187
SPRING
- differential lock return
3шт.
20
A67334
PLATE
- clutch, steel
5шт.
21
A136340
PLATE
- clutch, sintered
5шт.
22
A67335
PLATE
- piston return
1шт.
23
A146670
PISTON
- differential lock
1шт.
24
A150753
O-RING,7.84" ID x 0.107"
- 7-29/32 inch (201 MM)
1шт.
25
A146682
RING
- seal, 8-9/32 inch (210 MM) OD
1шт.
26
A150754
O-RING,4.718" ID x 0.107"
- 4-25/32 inch (121 MM)
1шт.
27
A146683
RING
- seal, 4-15/32 inch (114 MM) ID
1шт.
28
A142728
HOUSING
CAGE - differential lock
1шт.
29
26-856
BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8
- hex, 1/2 NC x 3-1/2 inch (Grade 8)
9шт.
30
A150672
WASHER
- 7/8 inch (22 MM)
9шт.
31
A67370
RING
- seal, differential lock, 59/64 inch (23 MM) width
2шт.
32
L33303
BEARING CUP
CUP - bearing, cage, differential lock, 4-17/32 inch (115 MM) OD
1шт.
33
L33297
ROLLER BEARING
CONE - bearing, cage, differential lock, 2-61/64 inch (75 MM) ID
1шт.
34
REF
INSTRUCTION
SHAFT - brake and sun gear (See Figure 6-212)
2шт.
35
REF
INSTRUCTION
RING - snap, sun gear shaft (See Figure 6-212)
2шт.
Выбрано товаров: 31
