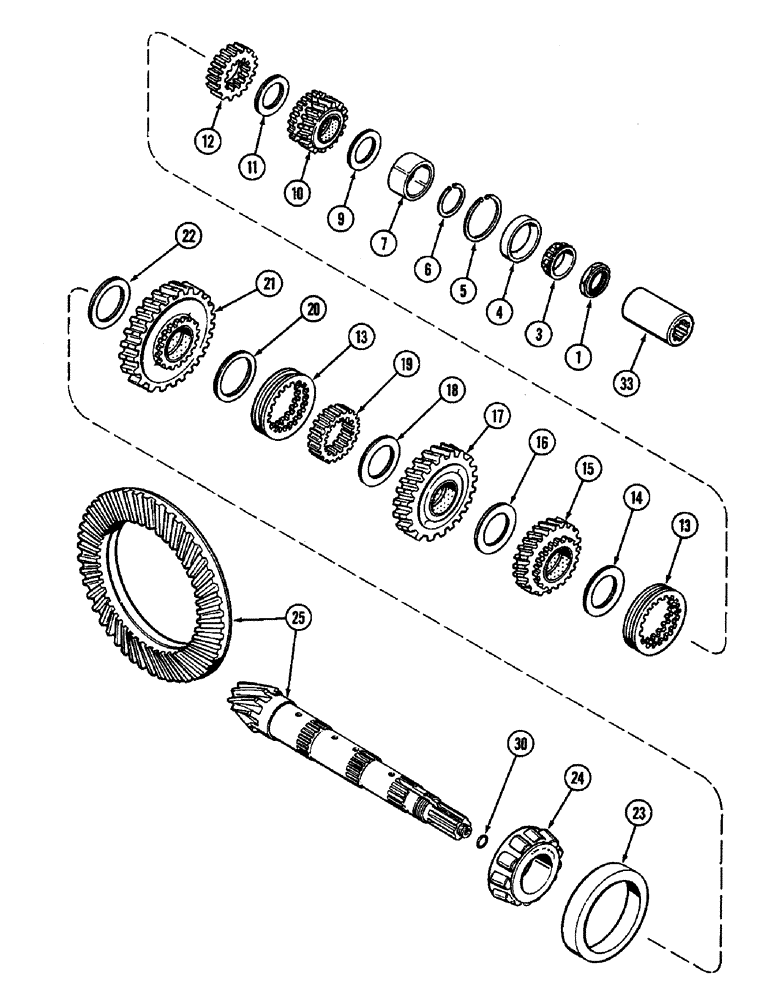

Запчасти Case IH 3294 (6-208) - TRANSMISSION COUNTERSHAFT (06) - POWER TRAIN

1

A156561

NUT

- bearing lock (Carraro no. 113095)

1шт.

3

R32217

ROLLER BEARING,50 mm ID x 21.5 mm

CONE - bearing, countershaft front, 1-31/32 inch (50 MM) ID

1шт.

4

R32216

BEARING CUP,82 mm OD x 17 mm

CUP - bearing, countershaft front, 3-15/64 inch (82 MM) OD

1шт.

5

A152194

RING

- snap, bearings

1шт.

6

A150930

RING

- snap, 0.078 inch (1.98 MM)

1шт.

6

A152278

RING

- snap, 0.088 inch (2.24 MM)

1шт.

6

A152279

RING

- snap, 0.098 inch (2.49 MM)

1шт.

6

A152280

RING

- snap, 0.108 inch (2.74 MM)

1шт.

6

A152281

RING

- snap, 0.118 inch (3.0 MM)

1шт.

6

A152282

RING

- snap, 0.128 inch (3.25 MM)

1шт.

6

A152283

RING

- snap, 0.138 inch (3.51 MM)

1шт.

7

A168074

SPACER

1шт.

9

A152706

WASHER

- thrust, 0.109 inch (2.77 MM)

1шт.

10

A157394

GEAR

- driven, fourth, 19 and 31 teeth

1шт.

11

A152705

WASHER

- thrust, 0.203 inch (5.16 MM)

1шт.

12

A153892

HUB

- third and fourth gear (39 internal, 31 external teeth)

1шт.

13

A168028

COLLAR

- shift, sliding

2шт.

14

A152704

WASHER

- thrust, 0.156 inch (3.96 MM)

1шт.

15

A157396

GEAR

- driven, third (29 and 31 teeth)

1шт.

16

A152703

WASHER, THRUST

WASHER - thrust, 0.436 inch (11.07 MM)

1шт.

17

A157398

GEAR

- driven, second (29 and 31 teeth)

1шт.

18

A152702

WASHER

- thrust, 0.156 inch (3.96 MM)

1шт.

19

A153891

HUB

- first, second and reverse gear (43 internal, 31 external teeth)

1шт.

20

A152701

WASHER

- thrust, 0.156 inch (3.96 MM)

1шт.

21

A157400

GEAR

- driven, first (42 and 31 teeth)

1шт.

22

A152700

WASHER

- thrust, 0.250 inch (6.35 MM)

1шт.

23

A140553

LAMP

- bearing, countershaft rear, 6-3/4 inch (171 MM) OD

1шт.

24

A63089

ROLLER BEARING,76.2mm ID x 46.11mm W

CONE - bearing, countershaft rear, 3 inch (76 MM) ID

1шт.

25

REF

INSTRUCTION

GEAR SET - spiral bevel and countershaft (Matched set) (See Figure 6-210)

1шт.

30

A153571

O-RING,0.799" ID x 1.005" OD x 0.103"

- countershaft, 51/64 x 1 x 7/64 inch (20 x 25 x 3 MM)

1шт.

33

A156562

COUPLING, BREAK AWAY

COUPLING - countershaft (Carraro no. 109932)

1шт.
