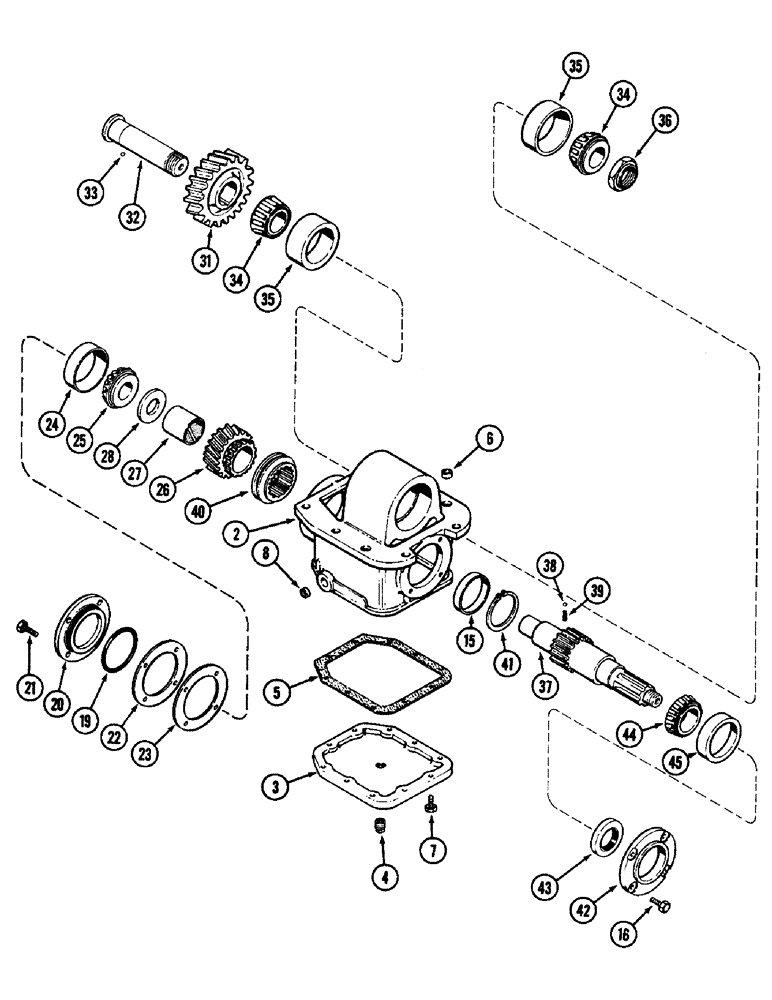

Запчасти Case IH 3294 (6-206) - TRANSFER GEARBOX, CONSTANT LOCK, TRANSMISSION S/N 16239354 AND AFTER (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
A179666
BOX
GEARBOX ASSEMBLY - transfer (Replaces A168843), Includes: Ref. 2 - 45
1шт.
2
A168844
HOUSING
- transfer gearbox
1шт.
3
A156588
COVER
- gearbox, bottom
1шт.
4
A156873
PLUG, DRAIN,M22 x 1.5
1шт.
5
A157216
GASKET
- cover
1шт.
6
A156567
PIN
RING - dowel
2шт.
7
813-6020
BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd
- hex, M6 x 1 x 20 MM
10шт.
8
A157155
PLUG
- rail
1шт.
15
A157473
BUSHING
SPACER - shifting collar
1шт.
16
813-10025
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd
- hex, M10 x 1.5 x 25 MM
4шт.
19
G104038
O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro
- cover
1шт.
20
A179683
COVER
- gearbox, rear (Replaces: A156584)
1шт.
21
813-10025
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd
- hex, M10 x 1.5 x 25 MM
4шт.
22
A156587
SHIM
- rear cover, 0.002 inch (0.05 MM)
1шт.
23
A156586
SHIM
- rear cover 0.005 inch (0.13 MM)
1шт.
24
A138433
BEARING CUP
CUP - bearing
1шт.
25
A156596
ROLLER BEARING,1.625" ID x 1.1563"
CONE - output shaft, rear
1шт.
26
A168848
GEAR
ASSEMBLY - output, 22 teeth, Includes: Ref. 27
1шт.
27
NSS
NOT SOLD SEPARAT
BUSHING - output gear (Reference no. A156575)
1шт.
28
A179682
WASHER
- thrust (Replaces: A156576)
1шт.
31
A168847
GEAR
- idler, 32 teeth
1шт.
32
A157332
SHAFT
- idler
1шт.
33
211-7
BALL,1/4" Dia
(6 mm) 1/4" Dia
1шт.
34
40436
ROLLER BEARING,1.9375" ID x 1.751"
CONE - idler shaft
2шт.
35
40435
BEARING CUP
- idler shaft
2шт.
36
A156571
NUT
- bearing adjusting
1шт.
37
A156572
SHAFT
- output
1шт.
38
211-7
BALL,1/4" Dia
- detent (6 mm) 1/4" Dia
3шт.
39
A156579
SPRING
- detent
3шт.
40
A156578
COLLAR
- shift
1шт.
41
A157130
RING
- retaining
1шт.
42
A156585
COVER
- gearbox, front
1шт.
43
A156577
OIL SEAL
- output shaft oil
1шт.
44
S113921
TAPERED BEARING
CONE - output shaft, front
1шт.
45
A138433
BEARING CUP
CUP - bearing
1шт.
Выбрано товаров: 35
