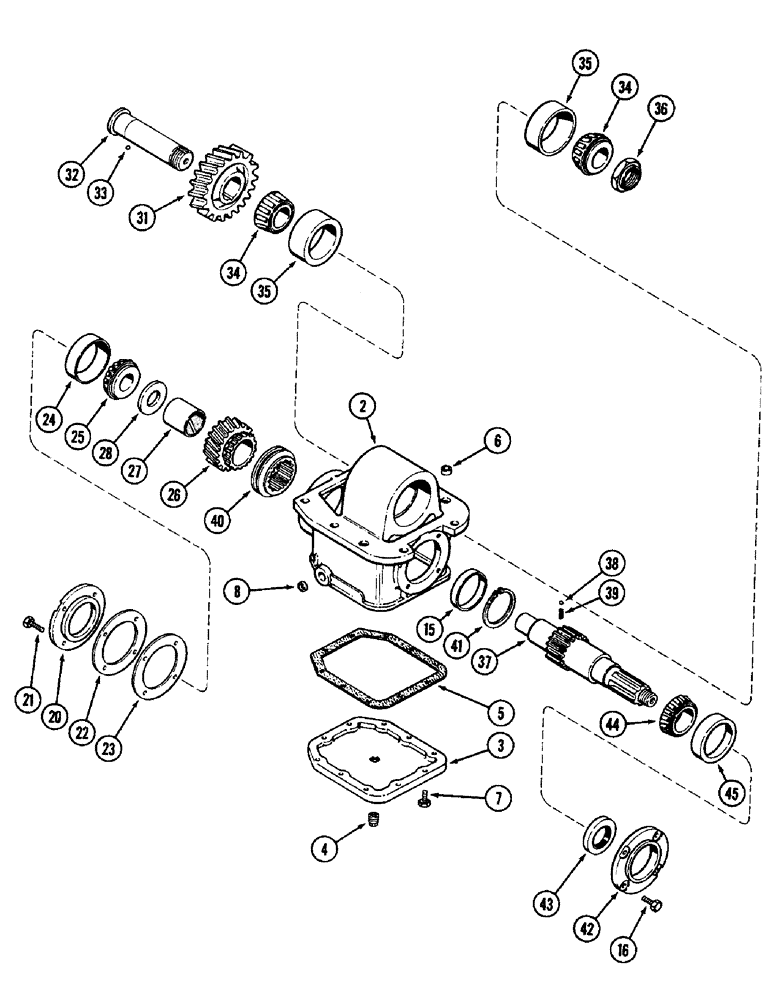

Запчасти Case IH 3294 (6-204) - TRANSFER GEARBOX, CONSTANT LOCK, PRIOR TO TRANSMISSION S/N 16239354 (06) - POWER TRAIN

A157471

GEARBOX

ASSEMLBY - transfer (Carraro no. 113040) (Order A179666), Includes: Ref. 2 - 45

1шт.

2

A156355

HOUSING

- transfer gearbox (Carraro no. 112824) (Order A168844)

1шт.

3

A156588

COVER

- gearbox, bottom (Carraro no. 112828)

1шт.

4

A156873

PLUG, DRAIN,M22 x 1.5

(Carraro no. 92270) M22 x 1.5

1шт.

5

A157216

GASKET

- cover (Carraro no. 110718)

1шт.

6

A156567

PIN

RING - dowel (Carraro no. 97191)

2шт.

7

813-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, M6 x 1 x 20 MM

10шт.

8

A157155

PLUG

- rail

1шт.

15

A157473

BUSHING

SPACER - shifting collar

1шт.

16

813-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, M10 x 1.5 x 25 MM

4шт.

20

A156584

COVER

- gearbox, rear (Carraro no. 112830)

1шт.

21

813-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, M10 x 1.5 x 25 MM

4шт.

22

A156587

SHIM

- rear cover, 0.002 inch (0.05 MM) (Carraro no. 113018)

1шт.

23

A156586

SHIM

- rear cover, 0.005 inch (0.13 MM) (Carraro no. 113017)

1шт.

24

A138433

BEARING CUP

CUP - bearing

1шт.

25

A156596

ROLLER BEARING,1.625" ID x 1.1563"

CONE - output shaft, rear

1шт.

26

A168848

GEAR

ASSEMBLY - output, 22 teeth (Carraro no. 113005) (Replaces: A156573), Includes: Ref. 27

1шт.

27

NSS

NOT SOLD SEPARAT

BUSHING - output gear (Carraro no. 109979) (Reference no. A156575)

1шт.

28

A156576

WASHER

- thrust (Carraro no. 113006)

1шт.

31

A157333

GEAR

- idler, 32 teeth

1шт.

32

A157332

SHAFT

- idler

1шт.

33

211-7

BALL,1/4" Dia

- gear retaining (6 mm) 1/4" Dia

1шт.

34

40436

ROLLER BEARING,1.9375" ID x 1.751"

CONE - idler shaft

2шт.

35

131481A1

HARNESS

- idler shaft

2шт.

36

A156571

NUT

- bearing adjusting (Carraro no. 113003)

1шт.

37

A156572

SHAFT

- output (Carraro no. 113004)

1шт.

38

211-7

BALL,1/4" Dia

- detent (6 mm) 1/4" Dia

3шт.

39

A156579

SPRING

- detent (Carraro no. 97199)

3шт.

40

A156578

COLLAR

- shift (Carraro no. 109962)

1шт.

41

A157130

RING

- retaining snap

1шт.

42

A156585

COVER

- gearbox, front

1шт.

43

A156577

OIL SEAL

- output shaft oil

1шт.

44

S113921

TAPERED BEARING

CONE - output shaft, front

1шт.

45

A138433

BEARING CUP

CUP - bearing

1шт.
