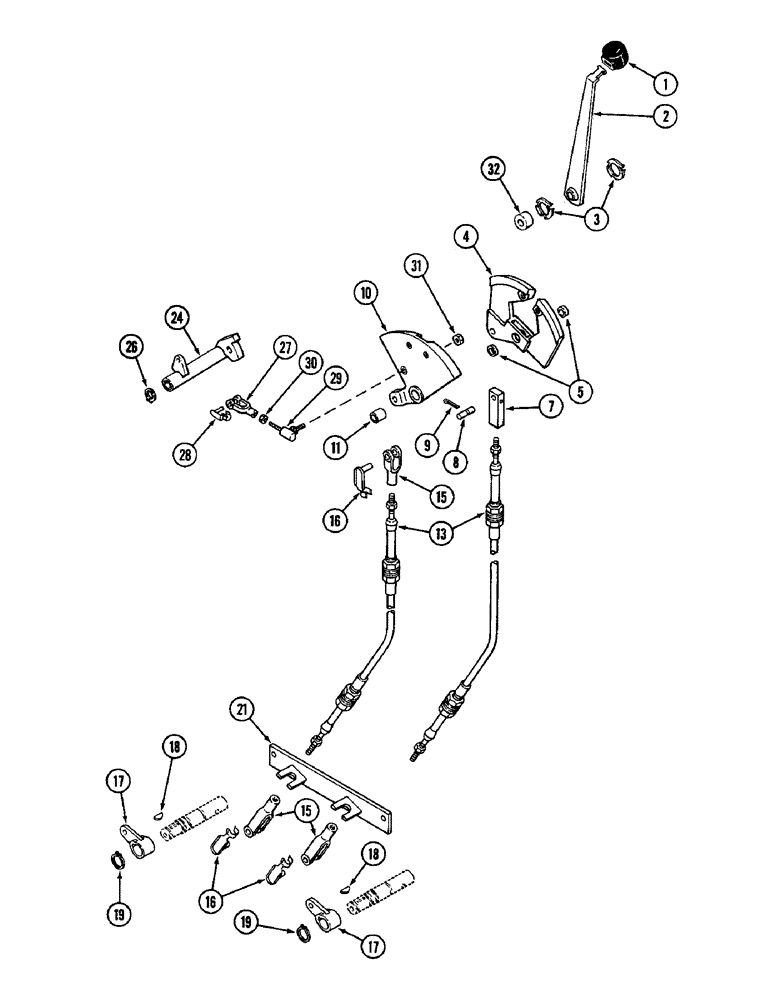

Запчасти Case IH 3294 (6-178) - POWER SHIFT TRANSMISSION, GEAR SHIFT LINKAGE (06) - POWER TRAIN

1

A177436

KNOB

- hand lever (Red)

1шт.

2

A149899

LEVER

- hand

1шт.

3

A162628

WASHER,25.4mm ID x 39.5mm OD x 1.57mm Thk

- pivot

2шт.

4

A61869

QUADRANT

ASSEMBLY - shift, first and second gear, Includes: Ref. 5

1шт.

5

A61871

BUSHING,15.95mm ID x 19.13mm OD x 6.48mm L

- pivot

2шт.

7

A160511

EYE

- connector, cable to quadrant, 5/16 inch NF thread

1шт.

8

A145484

PIN,9.46mm OD x 28.57mm L

- quadrant

1шт.

9

132-316

COTTER PIN,3/32" x 1 1/4"

PIN, SPLIT (COTTER), 3/32" x 1 1/4"

1шт.

10

A135170

QUADRANT

ASSEMBLY - shift, third and fourth gear, Includes: Ref. 11

1шт.

11

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- pivot

1шт.

13

A160512

CABLE

- quadrant to lower lever, 5/16 inch NF thread

2шт.

15

A160630

CLEVIS,5/16" - 24

YOKE - cable, 5/16 inch NF thread

3шт.

16

A147652

PIN

- yoke

3шт.

17

A67298

LEVER

- transmission shift

2шт.

18

126-118

WOODRUFF KEY,#10, 5/32" x 7/8", HT

KEY - Woodruff, 5/32 x 3/4 inch

2шт.

19

F62023

SNAP RING,#93, Ext

Ring, Snap, , lever #93, Ext

2шт.

21

A160516

STRAP

- control cable

1шт.

24

A176757

LEVER

- reverse lockout

1шт.

26

D32101

SNAP RING,#62, Ext

Ring, Snap, , reverse lockout lever #62, Ext

1шт.

27

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - reverse lockout

1шт.

28

A163098

PIN

- clevis

1шт.

29

A163017

BALL

JOINT - reverse lockout

1шт.

30

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

31

129-123

NUT,3/8"-24, G5

1шт.

32

A75379

BUSHING

SPACER - shift lever

1шт.
