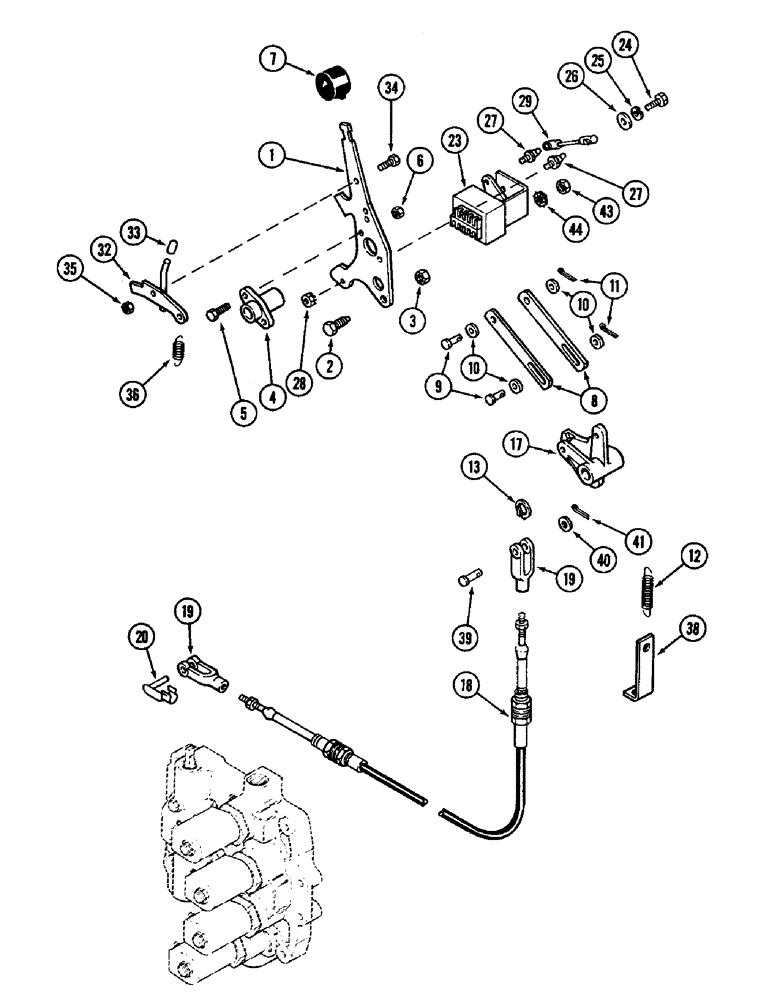

Запчасти Case IH 3294 (6-176) - POWER SHIFT TRANSMISSION, POWER SHIFT LINKAGE (06) - POWER TRAIN

1

A176861

LEVER

- power shift range (Replaces A165025)

1шт.

2

A161797

SCREW,3/8" - 16, Gr 8

- lever stop

1шт.

3

131-1306

JAM NUT,Jam, 3/8"-16

NUT - hex jam, 3/8 inch NC

1шт.

4

A160860

BUSHING

BEARING - control lever

1шт.

5

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

6

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

7

A177441

KNOB

- shift lever, red

1шт.

8

A177185

LINK

- lever return

2шт.

Part of Range Interlock Kit, P/N A180125

1шт.

9

141-52

CLEVIS PIN,1/4" x .770"

PIN - clevis, 1/4 inch

2шт.

10

195-102

WASHER,1/4"

- flat, 3/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

4шт.

11

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

2шт.

12

A164415

SPRING

- lever return (Replaces A163012)

1шт.

Part of Range Interlock Kit, P/N A180125

1шт.

13

D32101

SNAP RING,#62, Ext

Ring, Snap, , lever #62, Ext

1шт.

17

A176545

LEVER

- reverse interlock

1шт.

18

A160981

CABLE

- reverse interlock

1шт.

19

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - cable, 1/4 inch

2шт.

20

A163098

PIN

- cable spring (If equipped)

2шт.

23

A180201

SWITCH

ASSEMBLY - power shift (Replaces A164974)

1шт.

24

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - hex self-tapping, 1/4 x 1/2 inch

1шт.

25

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

26

195-102

WASHER,1/4"

- flat, 3/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

1шт.

27

A161786

STUD

- ball joint

2шт.

28

193-1000

NUT,Keps, w/LW,#10-32

- Keps, no. 10-32

1шт.

29

A161787

HOUSING

ROD ASSEMBLY - ball joint

2шт.

32

A176859

LATCH

- range lever

1шт.

33

A177232

CAP

- latch

1шт.

34

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

35

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

36

A163012

SPRING

- lock retaining

1шт.

38

A146252

BRACKET

- retaining

1шт.

39

A8823

PIN,6.29mm OD x 26.99mm L

- clevis

1шт.

Part of Range Interlock Kit, P/N A180125

1шт.

40

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

1шт.

Part of Range Interlock Kit, P/N A180125

1шт.

41

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

1шт.

A180125

KIT

- range interlock, Includes: ref. nos. 8, 12, 38, 39, 40, 41

1шт.
