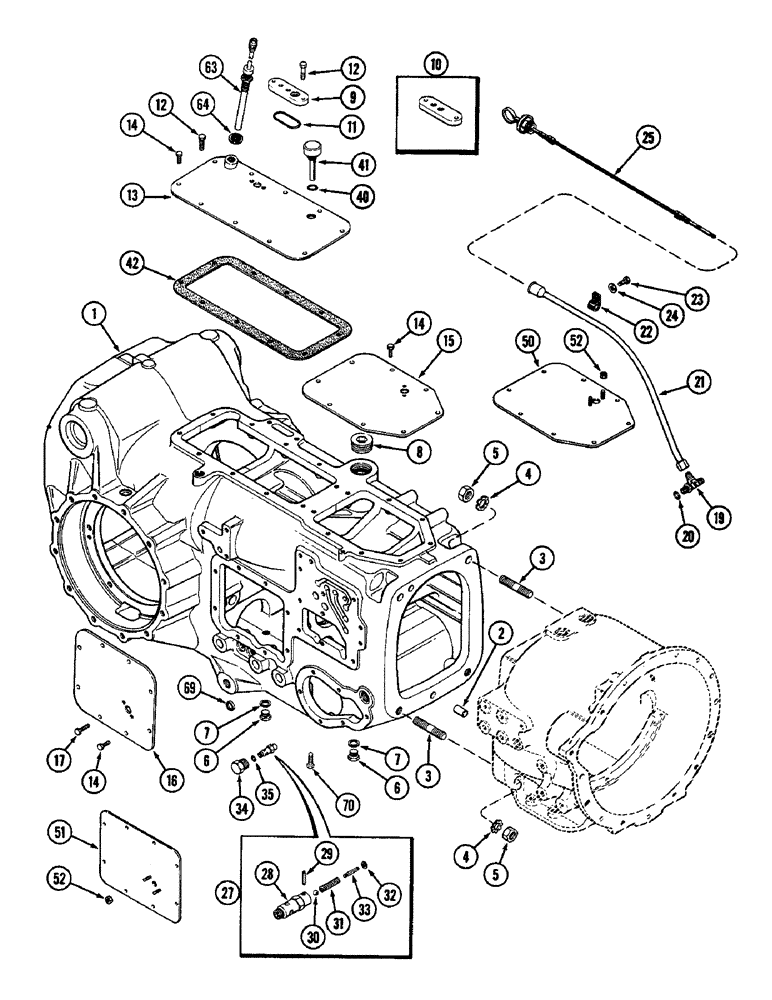

Запчасти Case IH 3294 (6-172) - POWER SHIFT TRANSMISSION, TRANSMISSION HOUSING (06) - POWER TRAIN

1

A168111

HOUSING

- transmission

1шт.

2

A28269

PIN

- dowel

2шт.

3

A151866

STUD

- 7/8 NF x 4 inch

4шт.

4

193-75

LOCK WASHER,7/8"

WASHER - internal lock, 7/8 inch

4шт.

5

129-129

NUT,7/8"-14, G5

- hex, 7/8 inch NF

4шт.

6

A140222

PLUG

- drain

2шт.

7

A58608

GASKET

- plug

2шт.

8

221-97

DRAIN PLUG,Sq Soc, 2"-11 1/2, NTPF

PLUG - square socket head, 2 inch PT

1шт.

9

A179657

COVER

- charge pump outlet, with 3/4 inch NF tapped hole

1шт.

10

A157626

PLATE

COVER - charge pump outlet, without 3/4 inch NF tapped hole

1шт.

11

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- 2-3/4 inch (70 MM)

1шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

5шт.

13

A156743

COVER

- transmission top, rear

1шт.

14

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

15

A168060

COVER

- front transmission top (Without studs, see Ref 50)

1шт.

16

A168061

COVER

- side transmission (Without studs, (See Ref 51)

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

19

A161146

FITTING

CONNECTOR ASSEMBLY - tee dipstick, Includes: Ref. 20

1шт.

20

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 x 3/4 x 7/64 inch (23 x 19 x 2 MM)

1шт.

21

A144056

TUBE

- dipstick

1шт.

22

49838

CLAMP

CLIP - tube

1шт.

23

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

24

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 (10 x 21 x 2 MM)

3шт.

25

A144055

DIPSTICK

- transmission oil

1шт.

27

A60890

VALVE

ASSEMBLY - relief, lubrication oil, Includes: Ref. 28 - 33

1шт.

28

NSS

NOT SOLD SEPARAT

BODY - relief valve (Reference no. A37579)

1шт.

29

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

30

211-9

BALL,5/16" Dia

- chrome steel, 5/16 inch (8 MM) diameter

1шт.

31

A60889

SPRING

- relief valve

1шт.

32

195-6

WASHER,#6

- flat, 5/32 x 5/16 x 1/32 inch (4 x 8 x 1 MM)

1шт.

33

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

34

A67369

PLUG

- oil relief valve

1шт.

35

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 x 3/4 x 7/64 inch (23 x 19 x 3 MM)

1шт.

40

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

- breather

1шт.

41

A154691

BREATHER

- transmission

1шт.

42

A144226

GASKET

- cover

1шт.

50

A179059

COVER

- front, transmission top (With studs, see Ref 15)

1шт.

51

A179060

COVER

- side, transmission (With studs, see Ref 16)

1шт.

52

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

63

A158683

TRANSMITTER

SENSOR - speed

1шт.

64

A75995

SEAL

- sensor

1шт.

69

41-1016

PLUG,Cup, 1"

- expansion, park lock hole

1шт.

70

113-2263

PREV TORQUE BOLT,Locking, 3/8"-16 x 1 1/4", G5

BOLT - hex lock, 3/8 x 1-1/4 inch

2шт.
