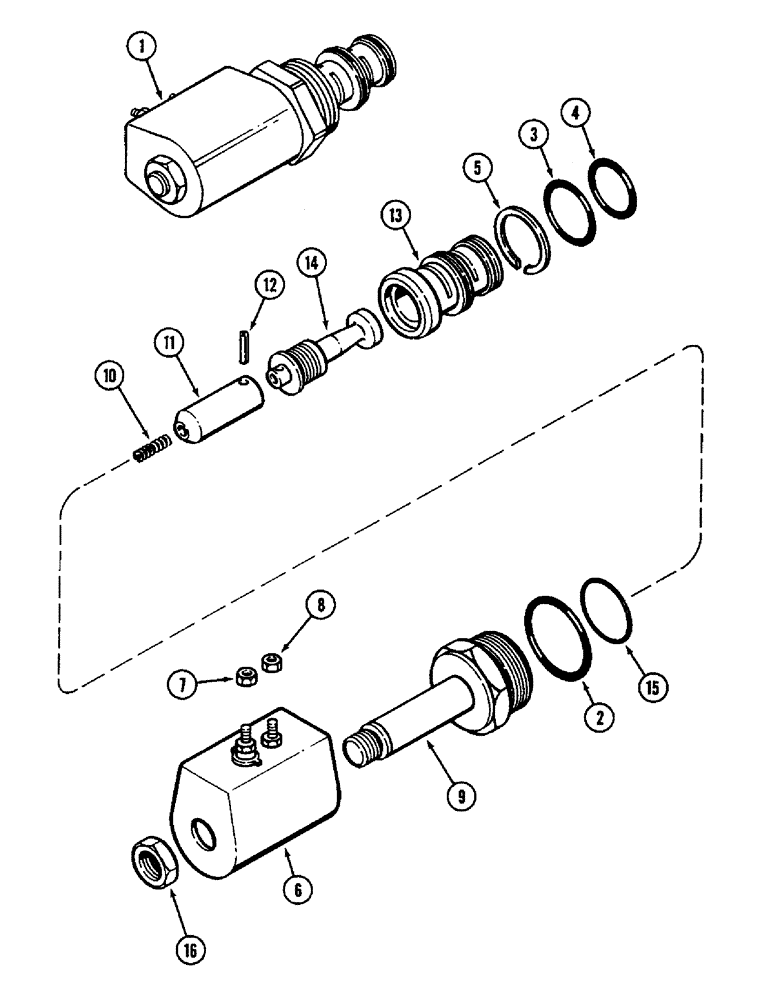

Запчасти Case IH 3294 (6-170) - POWER SHIFT SOLENOID ASSEMBLY (06) - POWER TRAIN

A160899

VALVE

SOLENOID ASSEMBLY - power shift, Includes: Ref. 1 - 16

4шт.

1

A49488

SWITCH

CARTRIDGE ASSEMBLY - solenoid, Includes: solenoid seal kit and Ref. 2 - 5

1шт.

A49489

SEAL

KIT - solenoid

1шт.

2

NSS

NOT SOLD SEPARAT

O-RING - rubber, 2-1/15 inch (52 MM) ID

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - rubber, 1-9/16 inch (40 MM) ID

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - rubber, 1-5/16 inch (33 MM) ID

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining, 1-9/16 inch (40 MM) ID

1шт.

6

A49486

SWITCH

COIL ASSEMBLY - solenoid, Includes: Ref. 7 and 8

1шт.

7

129-16

NUT,#8-32

2шт.

8

129-17

NUT,Hex, #10 - 24

NUT - hex, no. 10-32 inch NC

2шт.

9

NSS

NOT SOLD SEPARAT

TUBE - solenoid valve

1шт.

10

A49487

SPRING

- coil

1шт.

11

NSS

NOT SOLD SEPARAT

PLUNGER - solenoid

1шт.

12

NSS

NOT SOLD SEPARAT

PIN - roll, spool retaining

1шт.

13

NSS

NOT SOLD SEPARAT

CAGE - solenoid

1шт.

14

NSS

NOT SOLD SEPARAT

SPOOL - solenoid pressure

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - cage sealing, 1-11/16 inch ID

1шт.

16

131-60

LOCK NUT,5/8"-18

NUT - hex lock, 5/8-18 inch NF

1шт.
