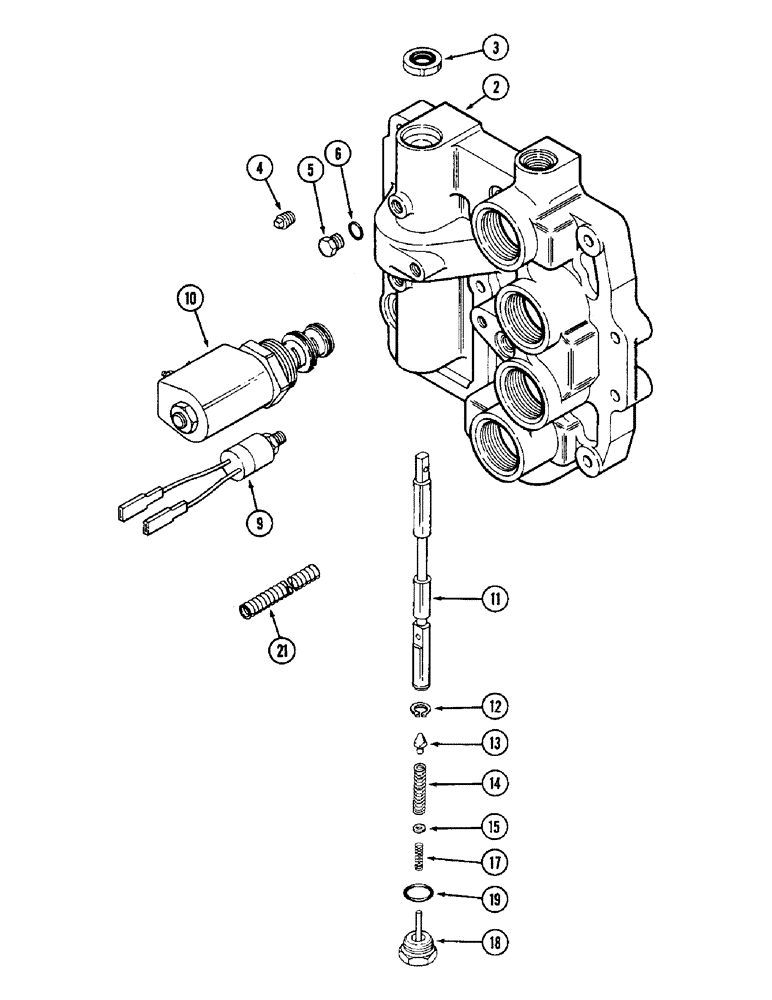

Запчасти Case IH 3294 (6-168) - HYDRAULIC MANIFOLD ASSEMBLY, ELECTRIC SHIFT (06) - POWER TRAIN

NSS

NOT SOLD SEPARAT

MANIFOLD ASSEMBLY - electric shift (Order individual items), Includes: Ref. 2 - 19 and solenoid ground harness

1шт.

2

A158153

MANIFOLD

- electric shift

1шт.

3

A37558

SEAL,14.27mm ID x 28.7mm OD x 6.73mm Thk

- oil

1шт.

4

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG ASSEMBLY - square head, 1/8 inch PT

4шт.

5

9672438

PLUG,7/16" - 20 ORB

1/4" tube, Incl. Ref. 6 Hex Hd, 7/16"-20 ORB

5шт.

6

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/64 inch (9 x 13 x 2 MM)

1шт.

9

A156555

SWITCH

ASSEMBLY - oil pressure (See Figure 4-078)

3шт.

10

A160899

VALVE

ASSEMBLY - solenoid (See Figure 6-170)

4шт.

11

A151914

SPOOL

- modulator

1шт.

12

G46176

SNAP RING,#56, Ext

Ring, Snap, , spool #56, Ext

1шт.

13

A61991

POINT

- modulator

1шт.

14

A60155

SPRING

- modulator primary

1шт.

15

A61989

WASHER,4.95mm ID x 9.27mm OD x 1.02mm Thk

- separator

1шт.

17

A61988

SPRING

- modulator secondary

1шт.

18

A61985

PLUG

ASSEMBLY - modulator, Includes: Ref. 19

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32 inch (19 x 24 x 2 MM)

1шт.

A156760

HARNESS

- solenoid ground (See Figure 4-078)

1шт.

21

A168840

CONDUIT

- wiring

1шт.
