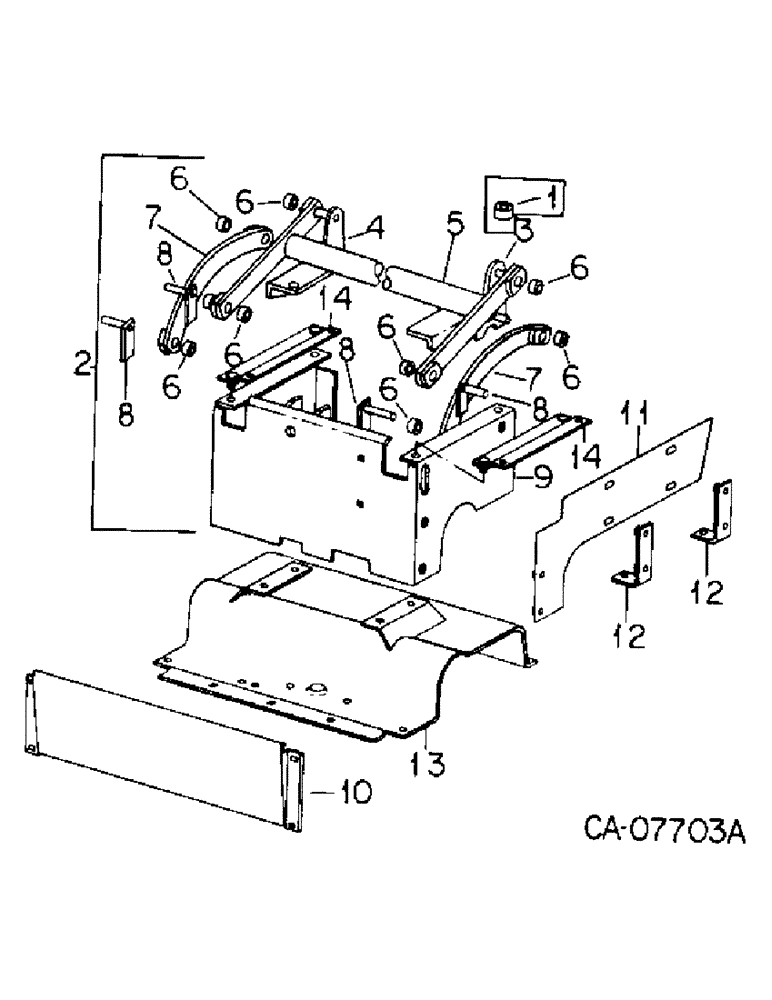

Запчасти Case IH 3288 (13-17) - SUPERSTRUCTURE, SUSPENSION, HYDRAULIC SEAT (05) - SUPERSTRUCTURE

1

120196C1

SPACER

3088 tractors, 3288 w/Serial no. 1024 and below and 1190 and above, 3688 w/Serial no. 1792 and below and 2320 and above

4шт.

2

148617C93

SUPPORT

SUSPENSION ASSY, seat

1шт.

3

534388R3

SUPPORT

ASSY, seat suspension LH

1шт.

4

534389R3

SUPPORT

ASSY, seat suspension RH

1шт.

931834R1

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

M12 x 30 class 8.8

2шт.

933966R1

LOCK WASHER,M12

WASHER, 12 mm lock

2шт.

21796R1

WASHER

.656 x 1.000 x .054

2шт.

5

144167C91

LINK

ASSY, seat upper

1шт.

6

534398R1

BUSHING,15.95mm ID x 19.13mm OD x 22.35mm L

seat linkage bar

8шт.

7

534399R1

BAR

ASSY, seat lower link

2шт.

8

534402R1

PIN

ASSY, frt pivot

4шт.

9

148618C3

SUPPORT

ASSY, seat

1шт.

30167R1

NUT,M8, Cl 10

M8 phc class 10

2шт.

934309R1

LOCK WASHER,M8

2шт.

10

1251905C2

PANEL

front seat suspension

1шт.

1276064C1

PREV TORQUE BOLT,Cross Pan Hd, M8 x 12mm

SCREW, M8 x 12 polyseal ph/cr mach

2шт.

11

1251906C1

PANEL

ASSY, side seat suspension

1шт.

1276064C1

PREV TORQUE BOLT,Cross Pan Hd, M8 x 12mm

SCREW, M8 x 12 polyseal ph/cr mach

6шт.

12

1251908C1

BRACKET

BRACE ASSY, side seat panel

2шт.

931562R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

M8 x 16 phc class 8.8

2шт.

13

143914C3

COVER

ASSY, seat support

1шт.

14

1267297C1

BRACKET

SUPPORT ASSY, offset seat, 3288 w/Serial no. 1025 - 1189, 3688 w/Srial no. 1793 - 2319

1шт.

14

1267402C1

BAR

SUPPORT ASSY, offset seat, 3088 tractors, 3288 w/Serial no. 1190 and above, 3688 w/Serial no. 2320 and above

1шт.

21496R1

WASHER

.344 x .750 x .105

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

8шт.
