Запчасти Case IH 3288 (07-50) - DRIVE TRAIN, TRANSFER CASE, TRACTORS WITH ALL WHEEL DRIVE, WITH TWO PIECE DRIVE SHAFT (04) - Drive Train

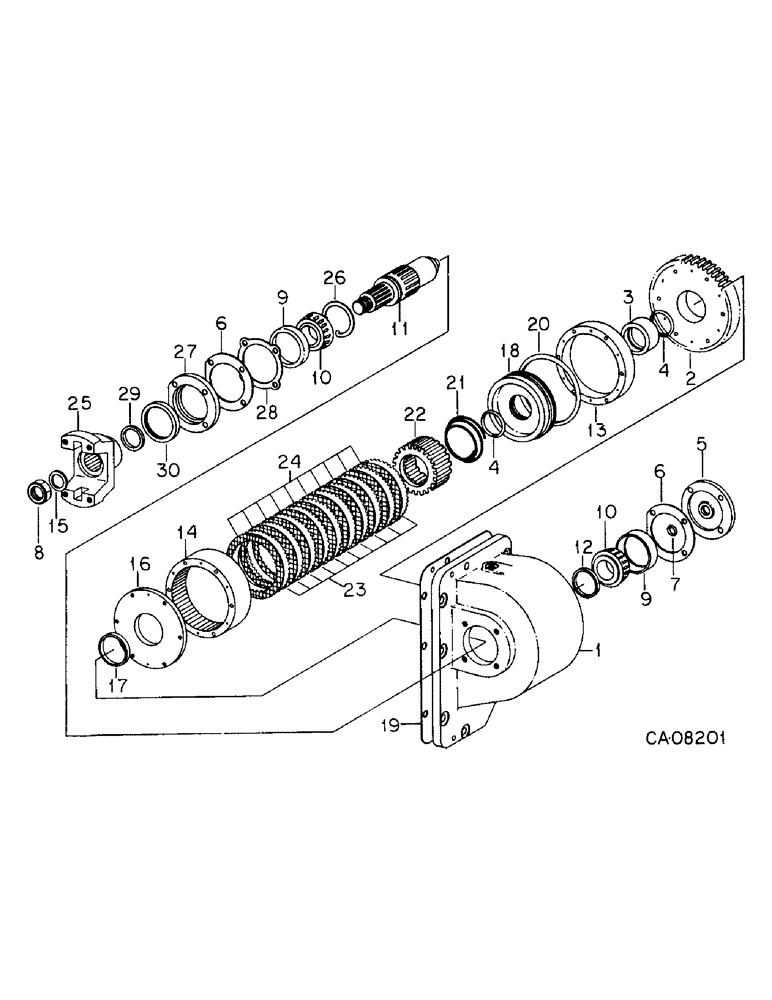

Схема запчастей Case IH 3288 - (07-50) - DRIVE TRAIN, TRANSFER CASE, TRACTORS WITH ALL WHEEL DRIVE, WITH TWO PIECE DRIVE SHAFT (04) - Drive Train
1
15
4
11
8
19
30
16
10
26
18
3
6
14
10
27
7
21
13
24
23
9
12
9
29
20
2
6
5
22
4
25

Артикул

Название

Примечание

Количество

1

1264605C1

HOUSING

transfer case, 38T

1шт.

208100H1

CAPSCREW,Flange, 1/2" x 1.25", Alloy Steel

SCREW, 1/2 x 1.250 pln ast 12pt flg

6шт.

20024R1

PIN

3/8 x 1.000 pln hdn dowel

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

2шт.

2

1264606C1

GEAR

38T

1шт.

1264614C1

PIN

3/16 x 2.5 hardened dowel

6шт.

1264622C1

SCREW,1/4" - 20 x 4", Gr 8

1/4-20 x 4.0 sh machine

6шт.

3

1264611C1

BUSHING

clutch shaft rear

1шт.

4

1264688C1

O-RING,1.737" ID x 1.943" OD x 0.103"

O-RING, 1-3/4 ID

2шт.

5

1264607C1

CAP

rear

1шт.

1264609C1

COPPER WASHER

3/8 copper

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

4шт.

6

1264782C1

GASKET

front and rear bearing

2шт.

7

1264687C1

O-RING,0.647" ID x 0.88" OD x 0.103"

O-RING

1шт.

8

148761C1

NUT

lock

1шт.

9

148722C1

BEARING CUP,72.01mm OD x 14.29mm W

cup

2шт.

10

148723C91

ROLLER BEARING,1.3775" ID x 2.8351" OD x 0.6704"

cone

2шт.

11

1264608C1

SHAFT

clutch drive

1шт.

12

1264610C1

SPACER

gear bushing

1шт.

13

1264612C1

HOUSING

hyd piston

1шт.

14

1264613C1

HUB

clutch drive

1шт.

19878R1

DOWEL,3/16" x 1"

PIN, 3/16 x 1.000 pln hdn dowel

1шт.

15

148760C1

WASHER

1шт.

16

1264615C1

PLATE

clutch hsg back

1шт.

17

1264616C1

BUSHING

clutch hsg back plate

1шт.

18

1264617C1

PISTON

1шт.

19

385757R2

GASKET

housing

1шт.

20

1264689C1

O-RING,4.487" ID x 4.693" OD x 0.103"

O-RING, 4-1/2 ID

1шт.

21

1264618C1

SPRING

hyd piston

1шт.

22

1264619C1

HUB

clutch drive shaft

1шт.

23

1264620C1

PLATE

separator

10шт.

24

1264621C1

LARGE PLATE

PLATE, friction

10шт.

25

148734C1

YOKE

end

1шт.

26

1264623C1

RING

clutch pack retaining

1шт.

27

1264624C1

CAP

seal

1шт.

28

1264625C1

SHIM

seal cap .005

1шт.

28

1264626C1

SHIM

seal cap .007

1шт.

28

1264648C1

SHIM

seal cap .020

1шт.

29

1264627C1

SPACER

yoke

1шт.

30

1251590C1

SEAL

SEAL

1шт.

Выбрано товаров: 40
