Запчасти Case IH 3288 (07-49) - DRIVE TRAIN, DRIVE SHAFT, TRACTORS WITH ALL WHEEL DRIVE WITH TWO PIECE DRIVE SHAFT (04) - Drive Train

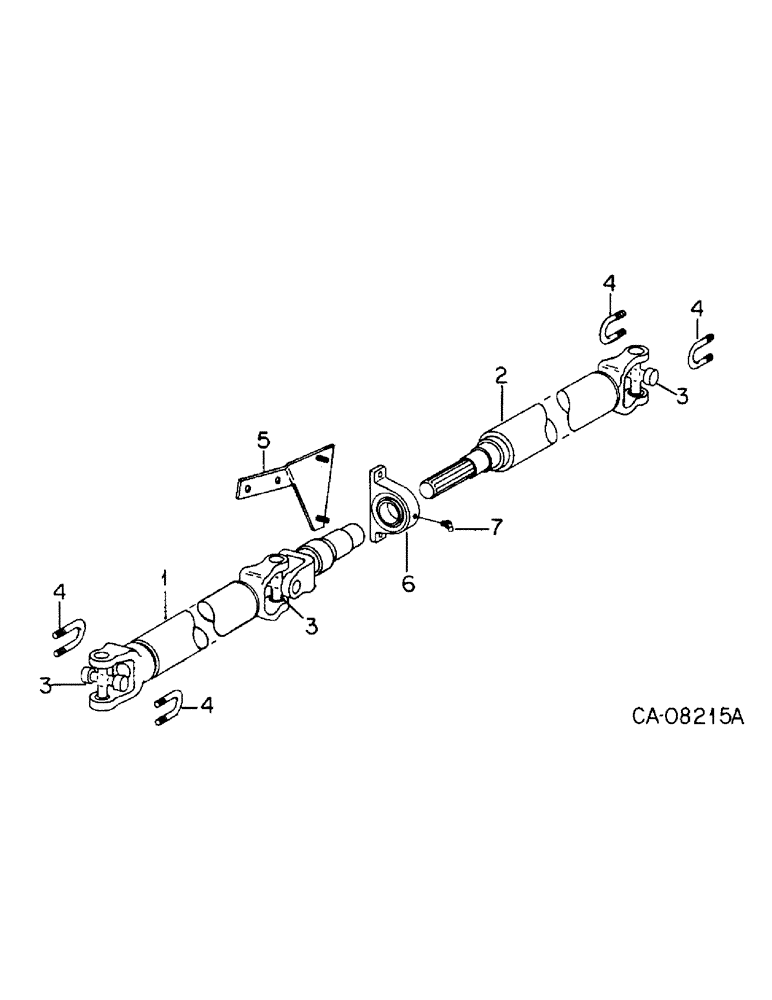

Схема запчастей Case IH 3288 - (07-49) - DRIVE TRAIN, DRIVE SHAFT, TRACTORS WITH ALL WHEEL DRIVE WITH TWO PIECE DRIVE SHAFT (04) - Drive Train
3
6
1
4
2
4
4
4
5
7
3
3

Артикул

Название

Примечание

Количество

1

1264657C1

SHAFT ASSY.

SHAFT ASSY, front drive

1шт.

1

1264694C1

SHAFT

ASSY, rear drive

1шт.

3

133137C91

KIT

SPIDER ASSY, cross and brg

3шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

3шт.

4

204138R1

BOLT,7/16" - 20 x 2 1/4"

U-BOLT

4шт.

5

1264669C1

PLATE ASSY.

BRACKET ASSY, center bearing

1шт.

495-11081

WASHER,3/4", SAE

.812 x 1.469 x .108

2шт.

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

2шт.

6

1264658C1

FLANGED BEARING

ASSY, center

1шт.

Bearing in this assembly is P/N 664175R92

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

7

16964R91

FITTING

1/4 90 deg. lub

1шт.

Выбрано товаров: 13
