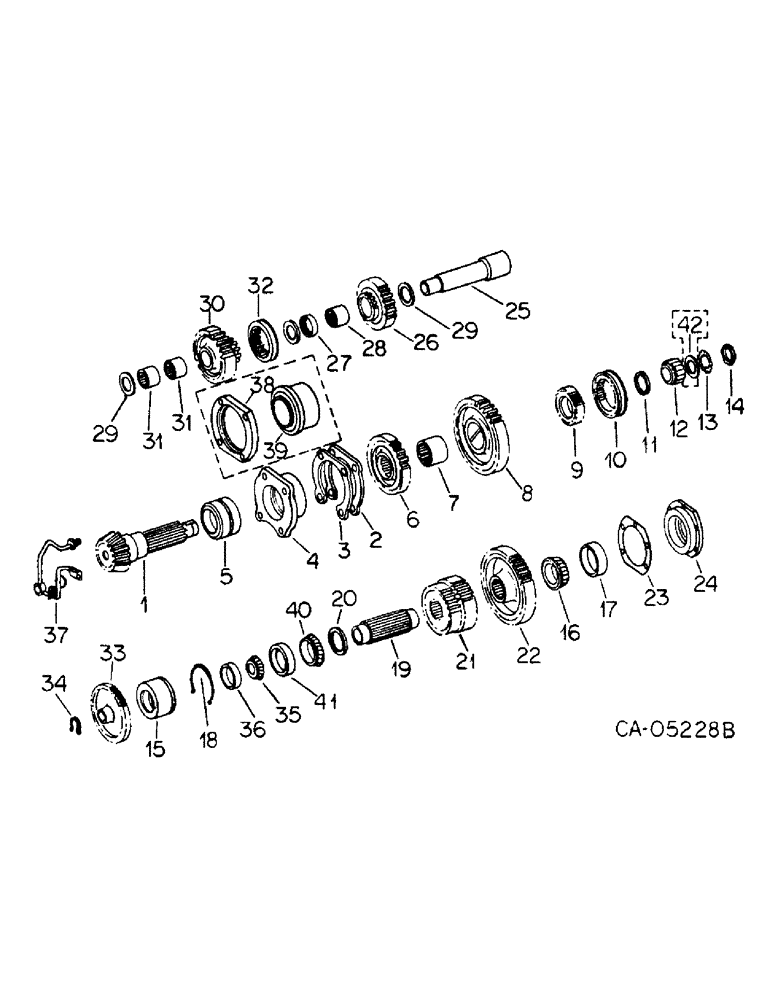

Запчасти Case IH 3288 (07-10) - DRIVE TRAIN, RANGE TRANSMISSION, IN REAR FRAME (04) - Drive Train

1

GEAR, bevel, 3088, 3288 and 3688 tractors, Not serviced separately, Order package 120265C91

1шт.

1

68529C91

GEAR-SET

GEAR, matched set, bevel, 3688HC tractors

1шт.

2

380283R2

SHIM

main shaft brg (Or as required)

1шт.

3

380284R2

SHIM

main shaft brg (Or as required)

2шт.

4

380285R1

CAGE

main shaft brg, 3088, 3288 and 3688HC tractors

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

3088 and 3288 tractors Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

380286R1

BOLT,Flg, 1/2" - 13 x 1 1/2"

SCREW, 1/2 x 1.500 pln ast 12pt flg, 3688HC tractors

2шт.

5

ST2174

TAPERED BEARING,2.5" ID x 4.4375" OD x 1.1875"

BEARING ASSY, main shaft rear, 3088 and 3288 tractors

1шт.

5

ST2127

BEARING ASSY,63.5mm ID x 112.71mm OD x 68.15mm W

BERAING ASSY, main shaft rear, 3688HC tractors

1шт.

6

138764C2

GEAR

reverse driven, 35T

1шт.

7

380289R1

CARRIER

hi-lo driven gear

1шт.

8

528683R11

GEAR

ASSY, hi-low driven, 45T

1шт.

9

533927R1

CARRIER

shift collar

1шт.

10

393521R1

COLLAR

hi-lo shift

1шт.

11

380294R1

SPACER

main shaft

1шт.

12

380295R91

BEARING, ROLLER, CYL,40mm ID x 69.58mm OD x 30.16mm W

main shaft front roller, 3088 and 3288 tractors

1шт.

12

391897R91

BEARING ASSY,40mm ID x 77.62mm OD x 30mm W

main shaft front roller, 3688 and 3688HC tractors

1шт.

13

359081R1

WASHER,38.89mm ID x 61.91mm OD x 1.52mm Thk

main shaft locking

1шт.

14

359082R2

NUT

main shaft

1шт.

15

68523C1

CAGE

ASSY, countershaft rear brg

1шт.

16

625742C91

BEARING

ASSY, countershaft cone

1шт.

17

625743C1

BEARING CUP,90mm OD x 18.5mm W

BEARING, countershaft cup

1шт.

18

26522R1

SNAP RING,4.625", Int, #462

RING, 5.076 int. ret.

1шт.

19

528680R2

SHAFT

COUNTERSHAFT, 3088 and 3288 tractors

1шт.

19

531799R1

SHAFT

COUNTERSHAFT, 3688 and 3688HC tractors

1шт.

20

583564R1

SNAP RING,#250, 2.356, Ext

RING, 2.356 ext rect sect ret

1шт.

21

528681R1

GEAR

lo drive, 28T - 33T

1шт.

22

406028R1

GEAR

constant mesh, 50T

1шт.

23

380280R1

SHIM

countershaft brg, 3088 and 3288 tractors (Or as required)

2шт.

23

67603C1

SHIM

countershaft br .004/.005, 3688 and 3688HC tractors (Or as required)

1шт.

23

67604C1

SHIM

countershaft br .0299, 3688 and 3688HC tractors (Or as required)

1шт.

23

67605C1

SHIM

countershaft brg .012, 3688 and 3688HC tractors (Or as required)

2шт.

23

67606C1

SHIM

countershaft brg .007, 3688 and 3688HC tractors (Or as required)

1шт.

23

67607C1

SHIM

countershaft brg .0035/.0025, 3688 and 3688HC tractors (Or as required)

1шт.

24

528682R1

CAGE

countershaft front brg

1шт.

NLS

NO LONGER SERVICED

4шт.

25

67774C1

SHAFT

ASSY, reverse idler

1шт.

127562C1

PLUG

lube oil

1шт.

26

393523R1

GEAR

reverse idler, 30T

1шт.

27

205369R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 15.88mm W

BEARING, idler gear rear

1шт.

28

166957R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 31.75mm W

BEARING, idler gear front

1шт.

29

380300R1

THRUST WASHER,41.66mm ID x 60.96mm OD x 2.54mm Thk

idler gear thrust

3шт.

30

393525R2

GEAR

reverse drive, 34T

1шт.

31

166957R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 31.75mm W

BEARING, drive gear

2шт.

32

393524R1

COLLAR

forward reverse shift

1шт.

33

380319R1

PINION

GEAR, pump drive, 61T, 3088 and 3288 tractors

1шт.

33

128064C1

GEAR

pump drive, 61T, 3688 and 3688HC tractors

1шт.

34

384341R1

RING, SNAP

RING, pump drive gear retaining, 3088 and 3288 tractors

1шт.

34

152450R1

SNAP RING,#125, Ext

RING, 1.156 ext ret, 3688 and 3688HC tractors

1шт.

35

ST2135

BEARING ASSY,33.34mm ID x 19.58mm W

IPTO driven shaft cone

1шт.

36

ST991

BEARING CUP

BEARING, IPTO driven shaft cup

1шт.

37

TUBE ASSY, transmission lube, Refer to rear frame and cover listing, this group

1шт.

38

135770C2

RETAINER

main shaft rear brg, 3688 tractors

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1шт.

39

528684R1

BEARING

ASSY, main shaft rear, 3688 tractors

1шт.

40

625742C91

BEARING

ASSY, countershaft cone, 3088 and 3288 tractors

1шт.

40

ST2010

BEARING ASSY,52.39mm ID x 25.4mm W

BEARING, countershaft cone, 3688 and 3688HC tractors

1шт.

41

625743C1

BEARING CUP,90mm OD x 18.5mm W

BEARING, countershaft cup, 3088 and 3288 tractors

1шт.

41

ST2164

BEARING ASSY,90mm OD x 19.99mm W

BEARING, countershaft cup, 3688 and 3688HC tractors

1шт.

42

380300R1

THRUST WASHER,41.66mm ID x 60.96mm OD x 2.54mm Thk

SPACER, 3688 and 3688HC tractors

1шт.

120265C91

GEAR-SET

PACKAGE, bevel gear and pinion, Consists of

1шт.

SHAFT, 13T (NSS)

1шт.

GEAR, 51T (NSS)

1шт.

380283R2

SHIM

1шт.

380284R2

SHIM

2шт.

135770C2

RETAINER

1шт.

528684R91

BEARING ASSY,63.5mm ID x 133.4mm OD x 70.48mm W

ASSY, or

1шт.

74765C91

BEARING

ASSY

1шт.

359081R1

WASHER,38.89mm ID x 61.91mm OD x 1.52mm Thk

1шт.

359082R2

NUT

1шт.

INSTRUCTIONS (NSS)

1шт.
