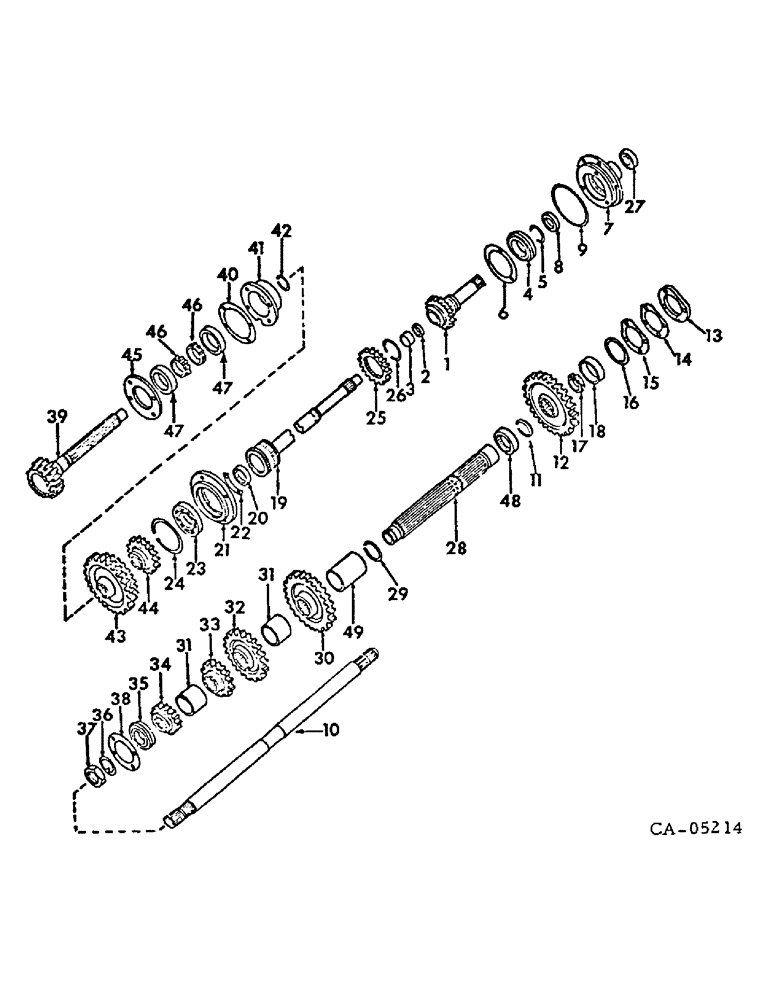

Запчасти Case IH 3288 (07-08) - DRIVE TRAIN, SPEED TRANSMISSION, IN CLUTCH HOUSING (04) - Drive Train

1

528676R1

SHAFT

IPTO drive, 28T

1шт.

2

535208R92

SEAL,30.23mm ID x 44.6mm OD x 7.92mm Thk

drive shaft oil

1шт.

3

384185R1

BUSHING,38.18mm ID x 44.58mm OD x 12.7mm L

drive shaft

1шт.

4

ST266

BALL BEARING

BEARING, drive shaft ball, 3088 and 3288 tractors

1шт.

4

ST343A

BALL BEARING,55mm ID x 100mm OD x 21mm W

BEARING, drive shaft, 3688 and 3688HC tractors

1шт.

5

384337R1

RING

shaft brg retaining

1шт.

6

384184R1

RETAINER

shaft brg

1шт.

26310R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 phc p/t type 8

3шт.

7

384079R2

CAGE

drive shaft brg

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

5шт.

8

535209R92

SEAL,49.02mm ID x 66.72mm OD x 7.92mm Thk

shaft brg cage oil

1шт.

9

22414R1

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

5-1/2 x 5-3/4 class 5, shaft brg cage sealing

1шт.

10

65357C1

SHAFT

IPTO driven

1шт.

11

359141R1

RING, SNAP

RING, IPTO driven ring snap

1шт.

12

68512C1

GEAR

IPTO driven, 58T

1шт.

13

67757C1

RETAINER

driven shaft brg

1шт.

26310R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 phc p/t type 8

4шт.

14

67758C1

SHIM

shaft brg retainer

1шт.

15

67760C1

SHIM

shaft brg retainer (Or as required)

3шт.

16

67761C1

SEAL RETAINER

front brg retainer

1шт.

17

533729R91

ROLLER BEARING,1.968" ID x 3.2283" OD x 0.8465"

ASSY, frt cone

1шт.

18

376463C1

BEARING CUP

BEARING, frt cup

1шт.

19

380076R4

SHAFT

transmission drive

1шт.

20

572181R91

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

main shaft front

1шт.

21

380080R1

CAGE

constant mesh drive gear brg

1шт.

22

380081R1

PLATE

constant mesh drive gear brg, cage lock

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8 x 1-1/8 pln type 5

4шт.

23

ST3025

BALL BEARING,75mm ID x 130mm OD x 22mm W

BEARING, constant mesh drive gear

1шт.

24

392683R1

RING

contant mesh drive brg cage int snap

1шт.

25

528670R1

GEAR WHEEL

GEAR, constant mesh drive, 26T

1шт.

26

381330R1

RING

constant mesh drive gear ext snap

1шт.

27

524598R91

BALL BEARING,20mm ID x 52mm OD x 15mm W

clutch pilot

1шт.

27

524598R91GV

BEARING

Value, Ball Bearing

1шт.

28

148951C2

SHAFT

COUNTERSHAFT

1шт.

29

357035R1

RING

constant mesh gear snap

1шт.

30

528673R3

GEAR WHEEL

GEAR, ocnstant mesh, 47T

1шт.

31

380126R2

SPACER

countershaft gears

2шт.

32

528671R1

GEAR

3rd speed driving, 42T

1шт.

33

528672R1

GEAR

2nd speed driving, 32T

1шт.

34

406473R1

GEAR

1st speed driving, 27T

1шт.

35

ST3021

BALL BEARING,60mm ID x 110mm OD x 22mm W

BEARING, countershaft rear, 3088 and 3288 tractors

1шт.

35

539163R91

BEARING ASSY,2.3622" ID x 4.3307" OD x 0.8661"

countershaft rear, 3688 and 3688HC tractors

1шт.

36

NOT USED THIS APPLICATION

1шт.

37

148952C2

NUT

countershaft brg lock, left hand thread

1шт.

38

380093R1

RETAINER

countershaft rear brg

1шт.

NLS

NO LONGER SERVICED

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

39

380094R2

SHAFT

main, 3088, 3288 and 3688HC tractors w/o torque amplifier

1шт.

39

529282R2

SHAFT

main, 23T, 3688 tractors w/o torque amplifier

1шт.

39

382350R2

SHAFT

main, 3088, 3288 and 3688HC tractors with torque amplifier

1шт.

39

529434R2

SHAFT

main, 3688 tractors with torque amplifier

1шт.

40

380095R1

SHIM

main shaft rear brg (Or use as required)

1шт.

41

384089R2

CAGE

main shaft rear brg, 3088, 3288 and 3688HC tractors

1шт.

41

529283R2

CAGE

main shaft rear brg, 3688 tractors

1шт.

42

380097R1

RING

main shaft rear brg snap

1шт.

43

528674R1

GEAR

1st & 2nd speed sliding, 41 and 46T

1шт.

44

528675R1

GEAR

3rd & 4th speed sliding, 31T

1шт.

45

380098R2

RETAINER

main shaft rear brg

1шт.

NLS

NO LONGER SERVICED

4шт.

46

384169R91

BEARING ASSY,55.58mm ID x 96.84mm OD x 26.26mm W

main shaft rear roller, 3088, 3288 and 3688HC tractors

2шт.

46

529207R91

BEARING ASSY,54.99mm ID x 29mm W

BEARING ASSY, main shaft rear cone, 3688 tractors

2шт.

47

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

BEARING ASSY, main shaft rear cup, 3688 tractors

2шт.

48

384114R91

NEEDLE BEARING

countershaft front needle, Refer to clutch housing this group

1шт.

49

384091R3

SPACER

constant mesh gear, tractors w/torque amplifier

1шт.
