Запчасти Case IH 3288 (07-06) - DRIVE TRAIN, REAR FRAME AND COVERS (04) - Drive Train

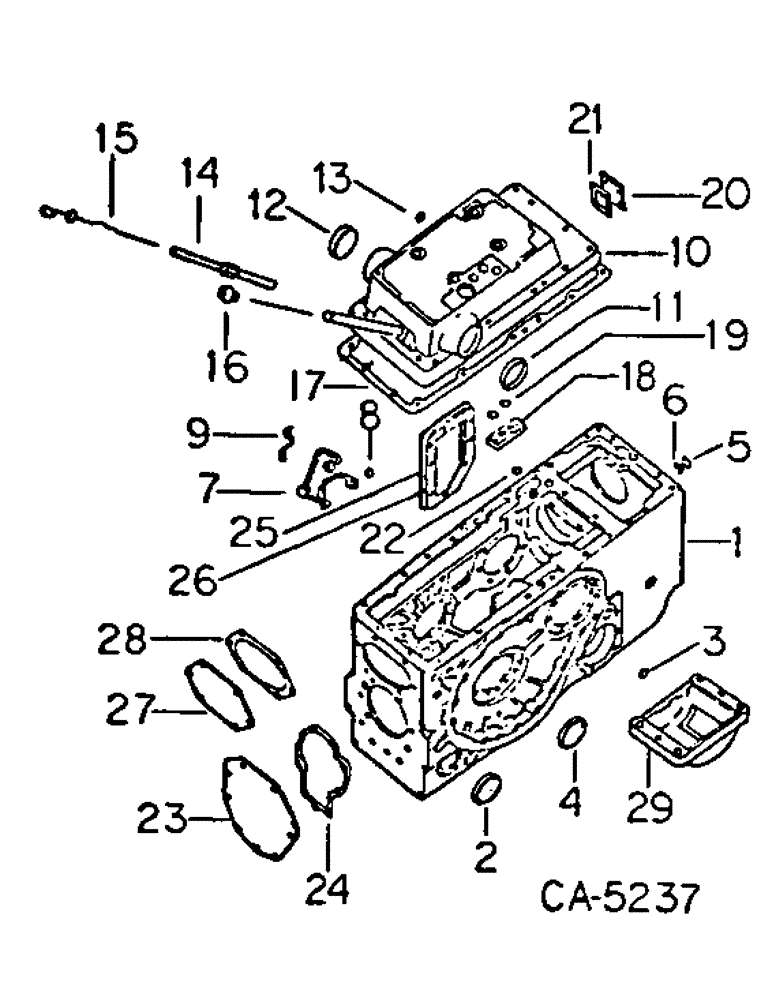

Схема запчастей Case IH 3288 - (07-06) - DRIVE TRAIN, REAR FRAME AND COVERS (04) - Drive Train
6
28
21
27
25
1
2
17
24
11
20
26
15
4
3
12
10
13
19
18
29
14
22
16
8
9
7
5
23

Артикул

Название

Примечание

Количество

1

127910C91

FRAME

ASSY, rear, Consists of

1шт.

FRAME W/TUBES (NSS)

1шт.

PIN (NSS)

7шт.

BUSHING (NSS)

1шт.

383331R1

PLUG,Cup, 4.26"

2шт.

444788

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG, or

2шт.

445751

2шт.

9409948

PLUG,Sq Soc, 3/4"-14 NPTF

or

1шт.

537545R92

SEAL

1шт.

172574

PLUG,Exp, 1 1/2"

1шт.

172558

PLUG,Exp, 1 1/4"

1шт.

INSTRUCTIONS (NSS)

1шт.

2

383331R1

PLUG,Cup, 4.26"

4.260 OD cup

2шт.

3

172574

PLUG,Exp, 1 1/2"

1-1/2 expansion pump suction port

1шт.

4

172558

PLUG,Exp, 1 1/4"

1-1/4 pln expansion diff lub tube

1шт.

5

707253R1

O-RING,-222, 70 Duro, 1.484" ID x .139" Thk

1-1/2 x 1-3/4 x 1/8 clutch housing suction tube

1шт.

6

127903C1

RETAINER

sealing ring

1шт.

7

68688C1

TUBE

RETAINER, sealing ring

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1шт.

406579R1

WASHER

lub tube mounting bracket

3шт.

380286R1

BOLT,Flg, 1/2" - 13 x 1 1/2"

SCREW, 1/2 x 1.500 pln ast 12pt flg, lub tube bracket, upper

1шт.

8

67745C1

SEALING RING

mainshaft fitting

1шт.

9

67748C2

TUBE

ASSY, diff ret upper lub, 3088, 3288 and 3688 tractors

1шт.

9

68685C1

TUBE,12.7 mm OD, 96.01, 67.82 mm Length

ASSY, diff lub upper, 3688HC tractors

1шт.

380286R1

BOLT,Flg, 1/2" - 13 x 1 1/2"

SCREW, 1/2 x 1.500 pln ast 12pt flg, lub tube bracket, lower

1шт.

10

COVER ASSY, rear frame, Refer to rear frame cover this group for list of components

1шт.

20203R1

BOLT,Hex, 5/8" - 11 x 3 7/8", Gr 5

5/8 x 3-7/8 pln type 5

16шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 pln type 5

4шт.

444776

PLUG,Sq Soc, 1/4"-18 NPTF

1/4-18 pln sq/skt auto drain

1шт.

444782

PLUG,Sq Soc, 3/8"-18 NPTF

3/8-18 pln sq/skt auto drain

1шт.

11

380173R1

PLUG,Cup, 3.762"

Rockshaft opening RH Cup, 3.762"

1шт.

12

380174R1

PLUG,Cup, 3.510"

Rockshaft opening LH Cup, 3.510"

1шт.

13

380263R1

PLUG

eccentric shaft and mounting bolt opening cup

5шт.

14

1259628C1

TUBE,4.52" Length

ASSY, oil level gauge

1шт.

15

104164C1

DIPSTICK

GAUGE ASSY, oil level

1шт.

16

367677R91

BREATHER

ASSY, oil filler tube cup

1шт.

17

380264R2

GASKET

rear frame cover

1шт.

18

382758R1

COVER

draft control port

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

19

387926R2

RING

draft control port cover seal

1шт.

20

382415R1

COVER

valve adj opening, tractors w/o hyd draft control

1шт.

179814

SPACER

5/16 x 5/8 pln type 5

5шт.

28253R1

BOLT

5/16 x 5/8 phc p/t type 5

1шт.

21

382416R1

GASKET

valve adj opening cover

1шт.

22

388306R1

RING,32.77mm ID x 39.12mm OD x 3.17mm Thk

SEAL, rear frame pressure port oil

1шт.

23

380272R1

COVER

independent PTO opening, tractors w/o IPTO

1шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

1/2 x 1-1/8 pln type 5

9шт.

24

381467R1

GASKET

independent PTO opening cover, tractors w/o IPTO

1шт.

25

380330R3

COVER

drive att opening

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

8шт.

26

385757R2

GASKET

drive att opening cover

1шт.

27

383329R1

COVER

draft control adj opening

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

BOLT, 5/8 x 1-1/4 pln type 5

6шт.

28

383330R1

GASKET

draft control adj opening cover

1шт.

29

72475C1

SUPPORT

ASSY, swinging drawbar pivot

1шт.
