(12-04) - POWER, ENGINE MOUNTING, 3088 AND 3288 TRACTORS

Запчасти Case IH 3288 (12-04) - POWER, ENGINE MOUNTING, 3088 AND 3288 TRACTORS Power

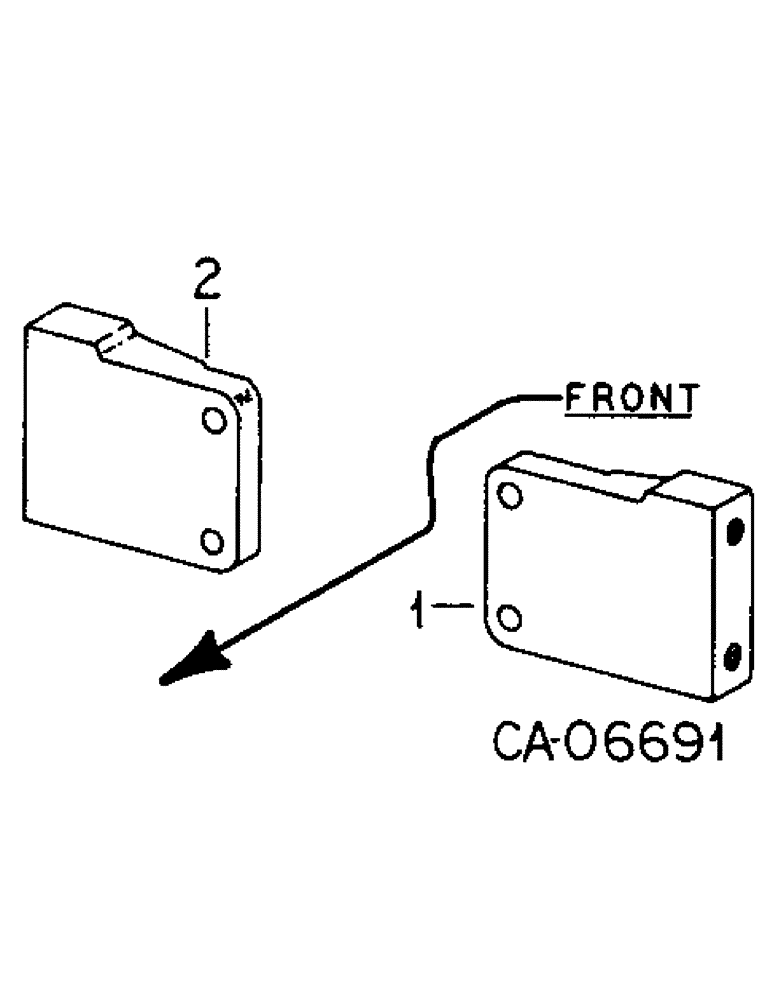

Схема запчастей Case IH 3288 - (12-04) - POWER, ENGINE MOUNTING, 3088 AND 3288 TRACTORS Power
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

130051C1

SUPPORT

LH front engine

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8 x 2-1/4 type 5

2шт.

2

130052C1

SUPPORT

RH front engine

1шт.

271724

PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5

5/8 x 2-1/4 type 5

2шт.

375362R1

PIN,12.69mm OD x 34.8mm L

dowel, engine flywheel housing to clutch housing

2шт.
