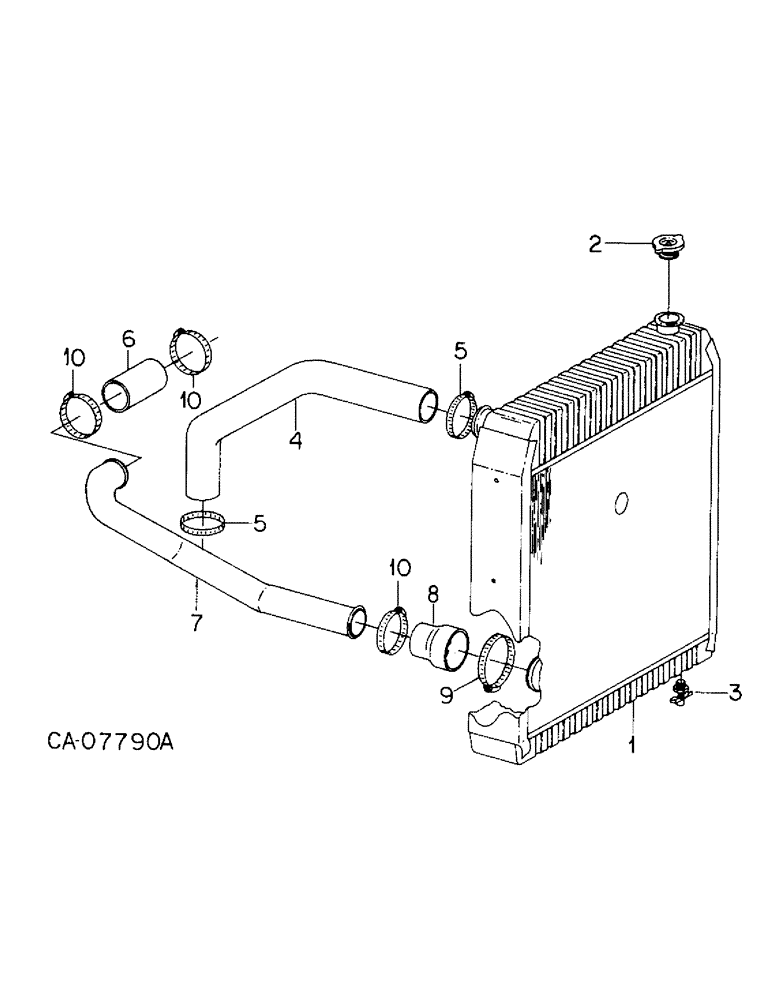

Запчасти Case IH 3288 (06-07) - COOLING, RADIATOR & CONNECTIONS, 3088 AND 3288 TRACTORS Cooling

1

146412C2

RADIATOR ASSY, less filler cap, tractors w/rops or non rops

1шт.

1

146405C1

RADIATOR

ASSY, less filler cap, tractors w/cab

1шт.

2

532673R1

CAP

ASSY

1шт.

3

614201R1

VALVE

radiator drain

1шт.

4

130295C1

RADIATOR HOSE,50.80 mm ID x 546.00 mm, SAE 20R4

Upper 50.80 mm ID x 546.00 mm, SAE 20R4

1шт.

5

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

CLAMP, no. 44 shoe type F hose

2шт.

6

HOSE, water pump inlet, lower, Furnish 76 mm from bulk roll marked 407008R1

1шт.

7

146433C2

HYD TUBE,2" OD, 847.896 mm Length

TUBE, radiator outlet, lower

1шт.

8

1252883C1

RADIATOR HOSE,73.80 mm ID, 98.80 mm ID x 180.00 mm

3.80 mm ID, 98.80 mm ID X 180.00 mm, Outlet adapter, Lower

1шт.

9

27392R1

HOSE CLAMP,#48, 2.56/3.50 Type F Worm, W/liner

CLAMP, no. 48 shoe type F hose

1шт.

10

279038R91

HOSE CLAMP,#32, 1.56/2.50 Type F Worm

CLAMP, no. 32 type F hose

3шт.
