Запчасти Case IH 3288 (08-28) - ELECTRICAL, RADIO EQUIPMENT, AM/FM AND TAPE PLAYERS (06) - ELECTRICAL

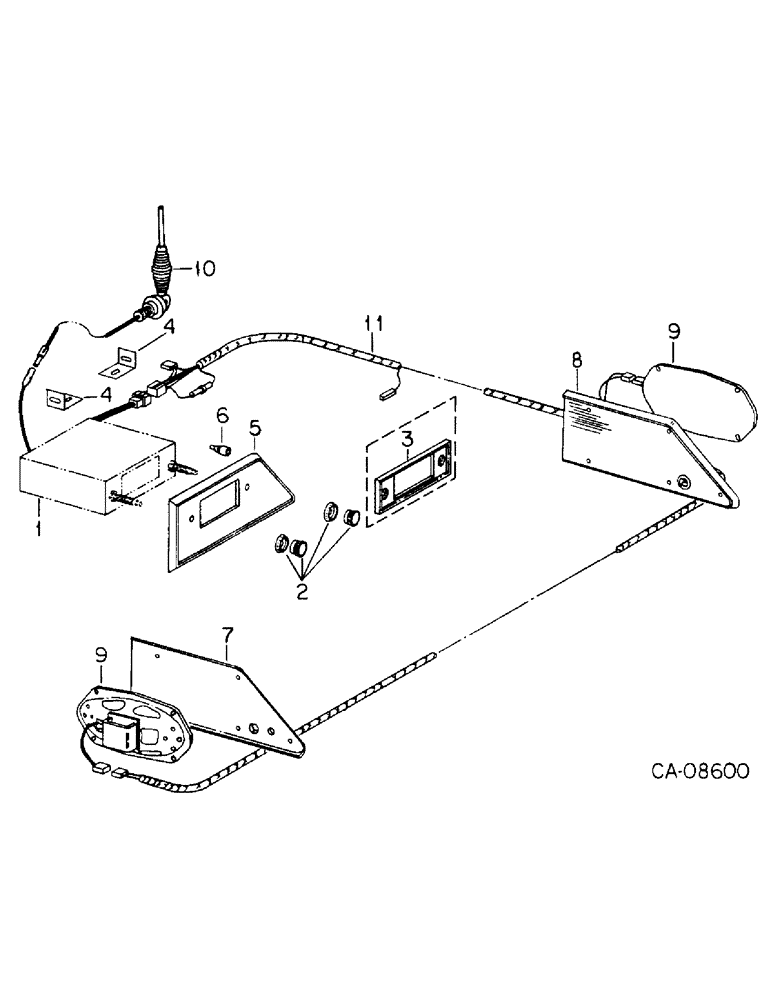

Схема запчастей Case IH 3288 - (08-28) - ELECTRICAL, RADIO EQUIPMENT, AM/FM AND TAPE PLAYERS (06) - ELECTRICAL
4
11
2
4
6
9
5
7
1
3
9
10
8

Артикул

Название

Примечание

Количество

111640C92

RADIO

PARTS ACCESSORY, AM radio w/fader control, Consists of radios, 111643C1 or 111644C1, Ref. 2 - 12 and instructions

1шт.

111641C92

RADIO

PARTS ACCESSORY, AM/FM monaural radio w/fader control, Consists of radios, 111645C1 or 111646C1, Ref. 2 - 12 and instructions

1шт.

111642C92

RADIO

PARTS ACCESSORY, AM/FM multiplex radio w/8 track tape player, Consists of radio, 111647C1, Ref. 2 - 12 and instructions

1шт.

146558C91

RADIO

PARTS ACCESSORY, AM/FM push button multiplex stereo radio, Consists of radio, 146560C1, Ref. 2 - 12 and instructions

1шт.

146559C91

PACKAGE

PARTS ACCESSORY, AM/FM stereo push button radio w/cassette tape player, Consists of radio, 111648C1, Ref. 2 - 12 and instructions

1шт.

1

111643C1

RADIO

AM w/fader, Boman, or

1шт.

1

111644C1

RADIO, AM w/fader, Motorola

1шт.

1

111645C1

RADIO

AM/FM monaural, Boman, or

1шт.

1

111646C1

RADIO, AM/FM monaural, Motorola

1шт.

1

111647C1

RADIO

AM/FM w/8 track tape, Boman

1шт.

1

111648C1

RADIO

AM/FM stereo cassette push-button, Boman

1шт.

1

146560C1

RADIO

AM/FM stereo push-button, Boman

1шт.

142919C1

NUT

large shaft, (For use w/Boman radios)

2шт.

142920C1

WASHER

shaft, (For use w/Boman radios)

2шт.

142921C1

NUT

small shaft, (For use w/Boman radios)

2шт.

25056R1

WASHER

shaft, (For use w/Motorola radios)

2шт.

328505C1

NUT

mounting, (For use w/Motorola radios)

2шт.

2

117993C1

PACKAGE

KIT, radio control knobs, (For use w/Boman radios), Consists of

1шт.

KNOB, chrome (NSS)

2шт.

KNOB, volume (NSS)

1шт.

KNOB, tuning (NSS)

1шт.

2

385531C1

KNOB

tone and balance, (For use w/Motorola radios)

2шт.

3

117992C1

PLATE

trim, (For use w/Boman radios)

1шт.

4

117818C1

ANGLE

radio mounting

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 type 1

2шт.

4

143124C1

ANGLE

radio mounting, For use w/factory installed radio, 111648C1 on burgundy and western cabs

2шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT, 1/4 x 3/4 crg type 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 ext-int tooth lock

2шт.

143059C1

NUT

1/2-20 tamper resistant

1шт.

5

118376C1

PANEL

radio trim, (For use w/Boman radios)

1шт.

5

142955C1

PANEL

radio trim, (For use w/Motorola radios)

1шт.

1276052C1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, trim panel mtg

5шт.

6

117995C1

PACKAGE

KIT, trim, panel fastener, Consists of 5 fasteners

3шт.

7

111042C2

PANEL, speaker trim LH

1шт.

1276052C1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, trim panel mtg

5шт.

117730C1

PLUG

plastic

1шт.

142940C1

PLUG

plastic 5/8 hole

1шт.

8

111403C1

PANEL

speaker trim RH

1шт.

1276052C1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, trim panel mtg

5шт.

9

142956C1

SPEAKER

4 x 8 4 OHM

2шт.

10

111237C1

ANTENNA

ASSY, complete

1шт.

169850C1

CLIP

1шт.

11

143177C1

HARNESS

ASSY, radio and speaker

1шт.

445635

FUSE,3 Amp, Type 1AG

1AG 3 amperes

1шт.

70566C91

JACK

PARTS ACCESSORY, headphone connecting jack, tractors w/cab, Consists of

1шт.

CABLE (NSS)

1шт.

118154C91

ACCESSORIES

PARTS ACCESSORY, headphone connecting jack, tractors w/rops frame, Consists of

1шт.

CABLE (NSS)

1шт.

HARNESS ASSY, ear phone jack ext. (NSS)

1шт.

118106C1

WASHER

cup trim

1шт.

INSTRUCTIONS (NSS)

1шт.

118258C1

PANEL

2шт.

28058R1

SCREW

8шт.

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

8шт.

142995C1

CABLE

ASSY

1шт.

118070C1

CABLE

ASSY

1шт.

187626C2

ANGLE

1шт.

118120C1

SUPPORT

1шт.

24198R1

SELF-TAP SCREW,Hex Hd, 1/4" x 5/8"

SCREW

1шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

187625C1

COVER ASSY

COVER

1шт.

365919R1

GROMMET,3/8" ID x 5/8" Groove Dia

1шт.

365501R1

TERMINAL CONNECTOR

TERMINAL

1шт.

118441C1

LARGE PLATE

PLATE

1шт.

1252467C1

COVER

1шт.

Выбрано товаров: 69
