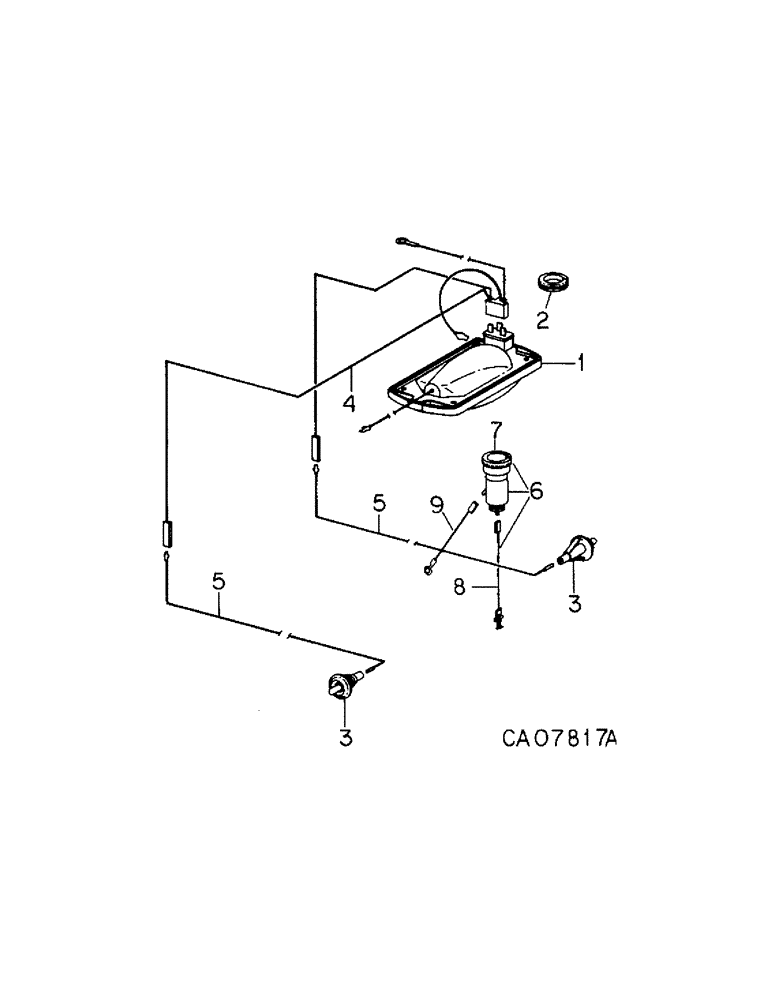

Запчасти Case IH 3288 (08-14) - ELECTRICAL, CIGAR LIGHTER, DOME LIGHT AND CONNECTIONS, TRACTORS WITH DELUXE CONTROL CENTER (06) - ELECTRICAL

1

1262111C91

LAMP

LIGHT ASSY, dome, Only serviceable Refs are

1шт.

117940C1

LENS

dome light

1шт.

33686

BULB

LAMP, type C-6 trade #1141

1шт.

1262109C1

SWITCH

dome light

1шт.

1276099C1

SELF-TAP SCREW,Cross Oval Hd, #8 x 3 3/4"

SCREW, no. 8-18 x 2-3/4 polyseal tap

4шт.

118171C1

PACKAGE

KIT, fastener, 2.0 TGL type

1шт.

2

117736C1

GROMMET

dome light split

1шт.

3

1262107C1

SWITCH

ASSY, door

2шт.

4

1262108C1

HARNESS

ASSY, dome light

1шт.

5

1262106C1

CABLE

ASSY, dome light

2шт.

111619C1

STRAP

adjustable

2шт.

CONDUIT, convoluted RH, Use 31.0 in. from bulk roll marked 2643122R1

1шт.

CONDUIT, convoluted, LH, Use 31.0 in. from bulk roll marked 2643048R1

1шт.

6

1265632C91

CIGAR LIGHTER

LIGHTER ASSY, cigar, 12 volt, Replaces 1250545C2

1шт.

7

378781R91

PACKAGE

LIGHTER, pop-out unit

1шт.

8

1265633C1

CABLE

ASSY, cigar lighter

1шт.

9426334

FUSE,10 Amp, Type 3AG

3AG 10 amperes

1шт.

9

1267323C1

CABLE

ASSY, cigar lighter grd, If required

1шт.

328388C1

SCREW,Cross Pan Hd, #10 x 1/2"

no. 10-16 x 1/2 cad c/r s/d tap

1шт.
