(13-15) - SUPERSTRUCTURE, DELUXE HYDRAULIC SEAT, GRAMMER, WESTERN INTERIOR CAB

Запчасти Case IH 3088 (13-15) - SUPERSTRUCTURE, DELUXE HYDRAULIC SEAT, GRAMMER, WESTERN INTERIOR CAB (05) - SUPERSTRUCTURE

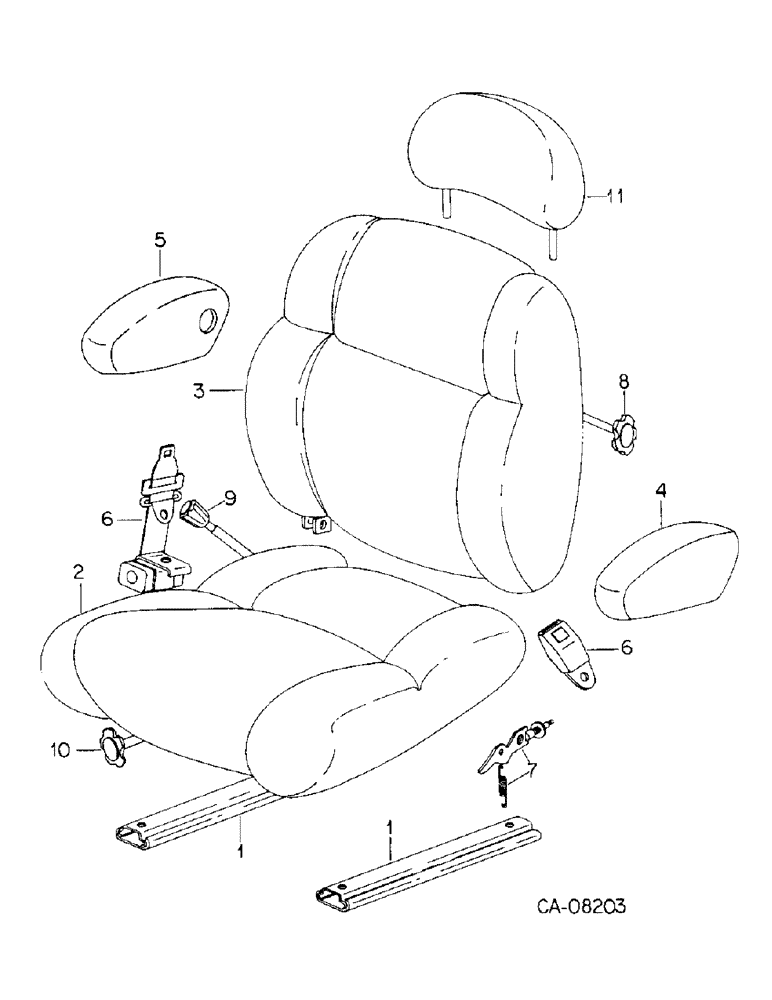

Схема запчастей Case IH 3088 - (13-15) - SUPERSTRUCTURE, DELUXE HYDRAULIC SEAT, GRAMMER, WESTERN INTERIOR CAB (05) - SUPERSTRUCTURE
3
4
9
5
1
1
6
6
10
8
2
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1267386C91

SEAT

ASSY, hydraulic, brown, Consists of Ref. 1 - 10

1шт.

1

143443C1

SLIDE

ASSY w/o handle

2шт.

2

143450C1

CUSHION

seat

1шт.

3

143451C1

CUSHION

back

1шт.

4

1262284C1

ARMREST

ASSY, LH

1шт.

5

143453C1

ARM

REST ASSY, RH

1шт.

6

1262285C1

SAFETY BELT

SAFETY BELT

1шт.

7

1267560C1

ADJUSTER

LH armrest

1шт.

8

1267561C1

KNOB

ASSY, lumbar adj

1шт.

9

1267562C1

HANDLE

ASSY, backrest tilt

1шт.

10

1267563C1

KNOB

ASSY, seat cushion tilt

1шт.

11

1262062C1

CUSHION

upper backrest

1шт.
