Запчасти Case IH 3088 (13-12) - SUPERSTRUCTURE, DELUXE HYDRAULIC SEAT, WESTERN INTERIOR CAB (05) - SUPERSTRUCTURE

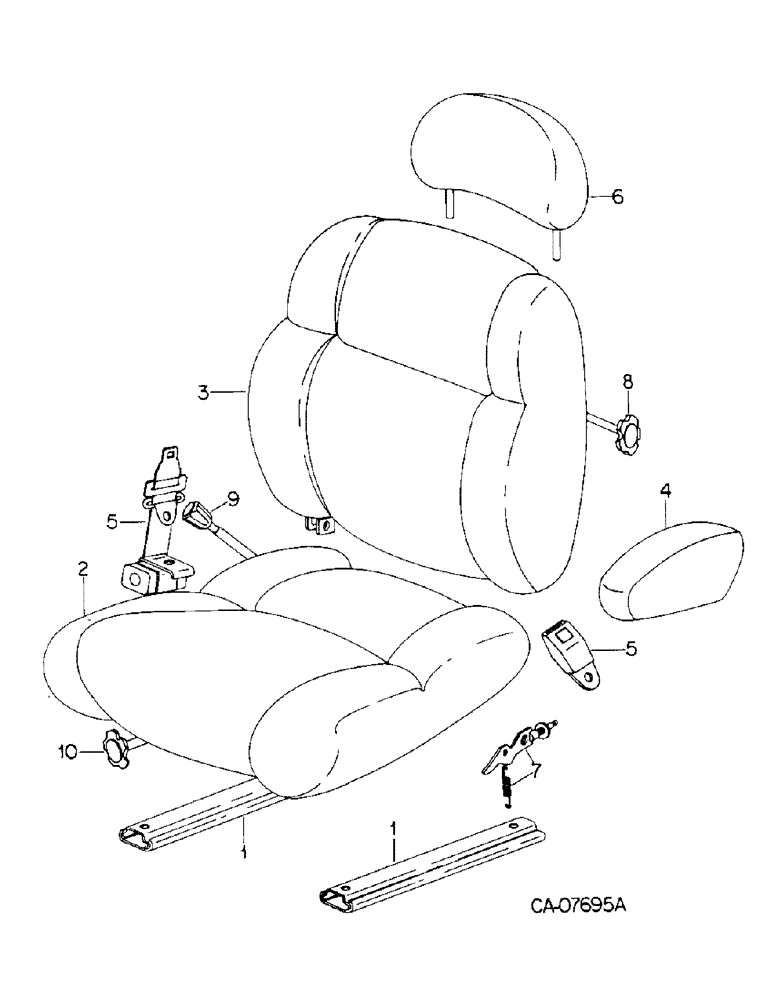

Схема запчастей Case IH 3088 - (13-12) - SUPERSTRUCTURE, DELUXE HYDRAULIC SEAT, WESTERN INTERIOR CAB (05) - SUPERSTRUCTURE
4
1
2
6
8
5
9
5
3
1
10

Артикул

Название

Примечание

Количество

1262090C91

SEAT ASSY.

SEAT ASSY, hydraulic, western

1шт.

1

143443C1

SLIDE

ASSY, w/o handle

2шт.

2

143450C1

CUSHION

seat

1шт.

3

143451C1

CUSHION

back

1шт.

4

1262284C1

ARMREST

ASSY, LH

1шт.

5

1262285C1

SAFETY BELT

SAFETY BELT

1шт.

6

1262062C1

CUSHION

upper backrest, Not furnished as part of seat

1шт.

7

1267560C1

ADJUSTER

LH wide armrest

1шт.

8

1267561C1

KNOB

ASSY, lumbar adj

2шт.

9

1267562C1

HANDLE

ASSY, backrest tilt

1шт.

10

1267563C1

KNOB

ASSY, seat cushion tilt

1шт.

Выбрано товаров: 11
