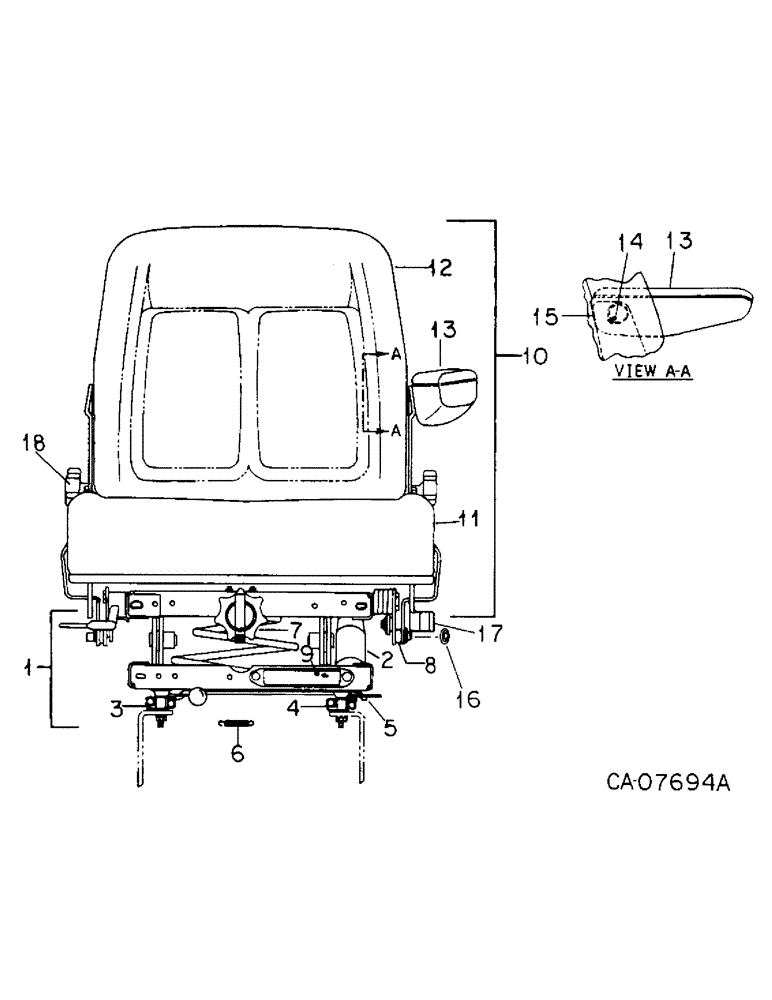

Запчасти Case IH 3088 (13-10) - SUPERSTRUCTURE, DELUXE VERTICAL ACTING SEAT (05) - SUPERSTRUCTURE

SEAT ASSY, vertical acting, cloth, On orders for seat assy 1250602C91 furnish Ref. 1, 10, 16, 17 and 18

1шт.

SEAT ASSY, vertical acting, vinyl, On orders for seat assy 1250601C91 furnish Ref. 1, 10, 16, 17 and 18

1шт.

Vinyl upholstery material is for tractors equipped w/rops or non-rops frame.

1шт.

1

118580C91

SUPPORT

ASSY, Consists of Ref. 2 - 9

1шт.

See Figure 9-52 in 2594 catalog 8-1973 for parts breakdown.

1шт.

2

64918C1

SHOCK ABSORBER

ABSORBER, shock

1шт.

3

139062C1

SLIDE

ASSY w/ handle

1шт.

4

139064C1

SLIDE

ASSY w/o handle

1шт.

5

139065C1

ROD

latch connecting

1шт.

6

64926C1

SPRING

slide adjusting

2шт.

7

118578C1

BUTTON

KNOB, weight adjusting

1шт.

8

1250509C1

BUSHING

S, suspension

1шт.

9

139061C1

INDICATOR

ride height

1шт.

10

1255793C91

SEAT

ASSY, cloth, Consists of Ref. 11, 12, 13, 14 and 15

1шт.

Cloth upholstery material is for tractors equipped w/cab.

1шт.

10

1255792C91

SEAT

ASSY, vinyl, Consists of Ref. 11, 12, 13, 14 and 15

1шт.

Vinyl upholstery material is for tractors equipped w/rops or non-rops frame.

1шт.

11

142885C1

CUSHION

cloth

1шт.

11

72937C1

CUSHION

vinyl

1шт.

12

142886C1

CUSHION

back, cloth

1шт.

12

142887C1

CUSHION

back, vinyl

1шт.

13

143432C1

ARM

REST ASSY, LH, cloth

1шт.

13

139069C1

ARMREST

ASSY, LH, vinyl

1шт.

14

139067C1

SCREW,1/4" - 20 x 0.38"

armrest stop

1шт.

15

139071C1

PLATE

cover LH

1шт.

27049R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 5/8"

SCREW, no. 10-16 x 5/8 phc p/hdcr tap

1шт.

16

59793C1

FASTENER

push-on

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

17

1267544C1

LEVER

ASSY, seat tilt, Replaces 1267545C1

1шт.

18

1267543C1

KNOB

ASSY, backrest adj

2шт.

130676A1

KIT

spring kit

1шт.

1987124C1

CUSHION, SEAT

seat kit

1шт.

128887A1

SEAT ASSY.

If looking for a service replacement seat use: 128887A1, this is w/suspn., black vinyl fits I.H. 786, 886, 986, 1086, 1486, 1586, hydro 186, 4386, 4586, 4786, 5088, 5288, 5488, 3088, 3288, 3388, 3488, 3588, 3688, 3788, 6388, 6588, 6788, case 1490, 1690, 2

1шт.
