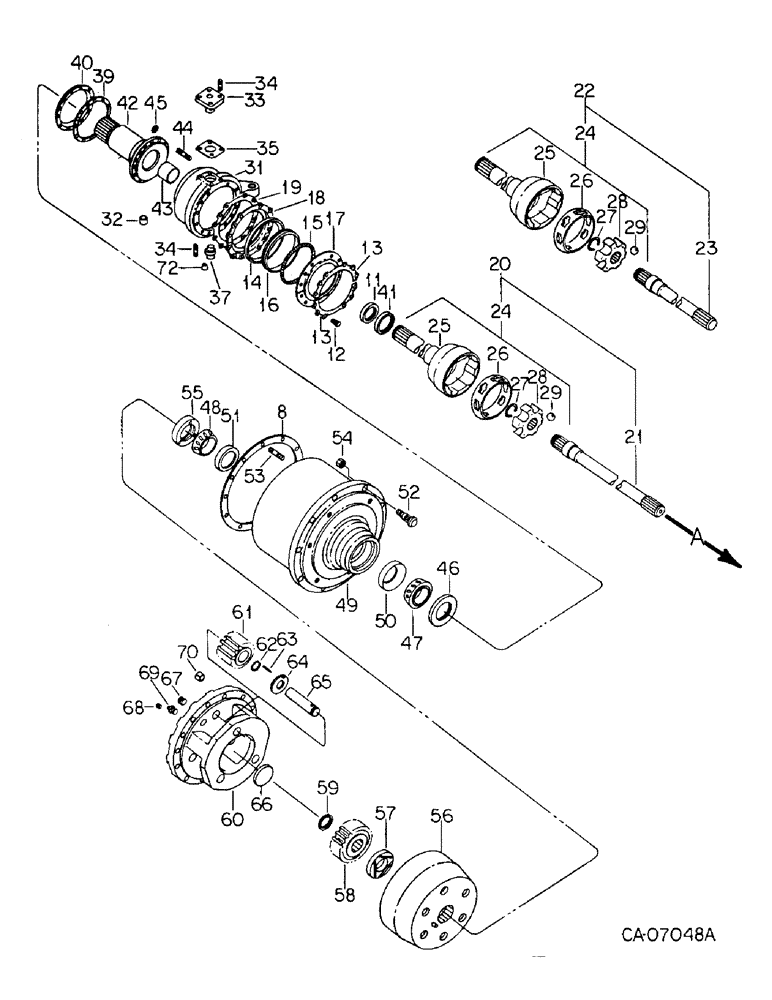

Запчасти Case IH 3088 (07-34) - DRIVE TRAIN, PLANETARY STEERING AXLE, TRACTORS WITH ALL WHEEL DRIVE, WITH ONE PIECE DRIVE SHAFT (04) - Drive Train

8

939177C1

GASKET

sealant, 3 oz. tube

2шт.

11

78879C91

OIL SEAL

SEAL, oil

2шт.

12

78789C1

BOLT (SPREADER),Lock, 5/16" - 18 x 1/2"

BOLT

24шт.

13

503080C1

RETAINER

oil seal

4шт.

14

503083C1

FELT SEAL

SEAL, knuckle felt

2шт.

15

503079C1

VALVE SPRING

SPRING, coil tension

2шт.

16

503082C1

OIL SEAL

SEAL, oil

2шт.

17

503091C1

RETAINER

oil seal

2шт.

18

503081C1

RETAINER

oil seal

2шт.

19

473016C1

GASKET

oil seal

2шт.

20

78797C91

JOINT

ASSY, RH shaft

1шт.

21

78799C1

SHAFT

1шт.

22

78796C91

BALL JOINT

JOINT ASSY, LH shaft

1шт.

23

78798C1

SHAFT

1шт.

24

78800C91

UNIVERSAL JOINT

JOINT ASSY

2шт.

25

SHAFT, Not serviced separately, Order joint assy 78800C91

2шт.

26

CAGE, Not serviced separately, Order joint assy 78800C91

2шт.

27

RING, Not serviced separately, Order joint assy 78800C91

2шт.

28

RACE, Not serviced separately, Order joint assy 78800C91

1шт.

29

BALL, 1-1/16 grade 25 metal, Not serviced separately, Order joint assy 78800C91

12шт.

31

78806C2

STEERING KNUCKLE

KNUCKLE, RH steering, knuckle only

1шт.

32

1264631C1

BRACE

BUSHING, steering knuckle hsg

2шт.

33

503087C1

CYLINDER END CAP

CAP, king pin

2шт.

34

78808C1

STUD

dowel

16шт.

9411648

LOCK NUT,1/2"-20, GC

NUT, 1/2-NF phc p/t lock type 8

16шт.

35

78809C1

SHIM

knuckle brg .005

3шт.

35

78810C1

SHIM

knuckle brg .010

3шт.

37

78812C1

SPARE PART

PIN, king

2шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 ptf short 65 deg. lub

2шт.

26577R1

NUT,Jam, 1 1/8"-12, G8

1-1/8-NF phc jam type 8

2шт.

39

78814C1

RETAINER

spacer

2шт.

40

78815C1

RETAINER

hub oil, slinger

2шт.

41

78880C91

OIL SEAL

SEAL, oil

2шт.

42

78816C1

SHAFT

spindle

2шт.

43

472988C1

BUSHING

spindle

2шт.

44

78817C1

STUD

dowel

24шт.

45

78818C1

WASHER

flat

24шт.

273896

HYDRAULIC PUMP

NUT, 7/16-NF phc p/t lock type 8

24шт.

46

442671C1

OIL SEAL

SEAL, oil

2шт.

47

572900R91

ROLLER BEARING,76.2mm ID x 23.01mm W

cone

2шт.

48

238661R91

CRANKSHAFT BEARING

BEARING, cone

2шт.

49

78819C1

HUB

2шт.

50

572901R1

BEARING, CUP,121.4552 mm OD x 24.7091 mm

2шт.

51

54538H

BEARING CUP

BEARING, cone

2шт.

52

78820C2

BOLT (SPREADER),3/4" - 16 x 2.6", Grade 8

BOLT, wheel stud

10шт.

53

78821C1

STUD

dowel

24шт.

54

382536R1

NUT, wheel

10шт.

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

.812 x 1.500 x .134 hdn

10шт.

55

1251800C1

NUT

lock

2шт.

56

1251801C1

GEAR WHEEL

GEAR, planetary ring, 61T

2шт.

57

78825C1

BUSHING

flat spacer

2шт.

58

78826C1

GEAR WHEEL

GEAR, sun

2шт.

59

78827C1

RING

retaining

2шт.

60

78828C1

FLANGE

planetary drive

2шт.

61

78829C1

PINION

GEAR, planet

6шт.

62

78830C1

WASHER

planet gear

6шт.

63

78831C1

NEEDLE ROLLER,Needle, 3.17mm OD x 24.43mm L

PIN, planet gear needle brg

300шт.

64

78832C1

WASHER

planet gear

12шт.

65

78833C1

PIN

planet gear shaft

6шт.

553686R1

LOCK PIN,3/16" x 1 1/2", Slotted

Pin, 3/16" x 1 1/2", Slotted

6шт.

66

78834C1

AXLE PIN

PIN, thrust washer

2шт.

67

445751

1/2-14 pln sq/skt auto pipe

4шт.

68

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, , pln Slotted, Headless, 1/8" NPT

2шт.

69

27632R1

LUBE NIPPLE,1/8"-27 NPT x .50" lg, Press Relief

FITTING, 1/8 ptf short pressure lub

2шт.

70

78836C1

BUSHING

stud

24шт.

232-4617

LOCK NUT,7/16"-20, GC

NUT, 7/16-NF phc p/t lock type 8

24шт.

72

78838C1

PIN

stud adapter

8шт.

73

78839C1

STUD

dowel

6шт.

273896

HYDRAULIC PUMP

NUT, 7/16-NF phc p/t lock type 8

10шт.
