Запчасти Case IH 3088 (12-11) - POWER, GOV CHOKE AND FUEL SHUT-OFF CONTROLS Power

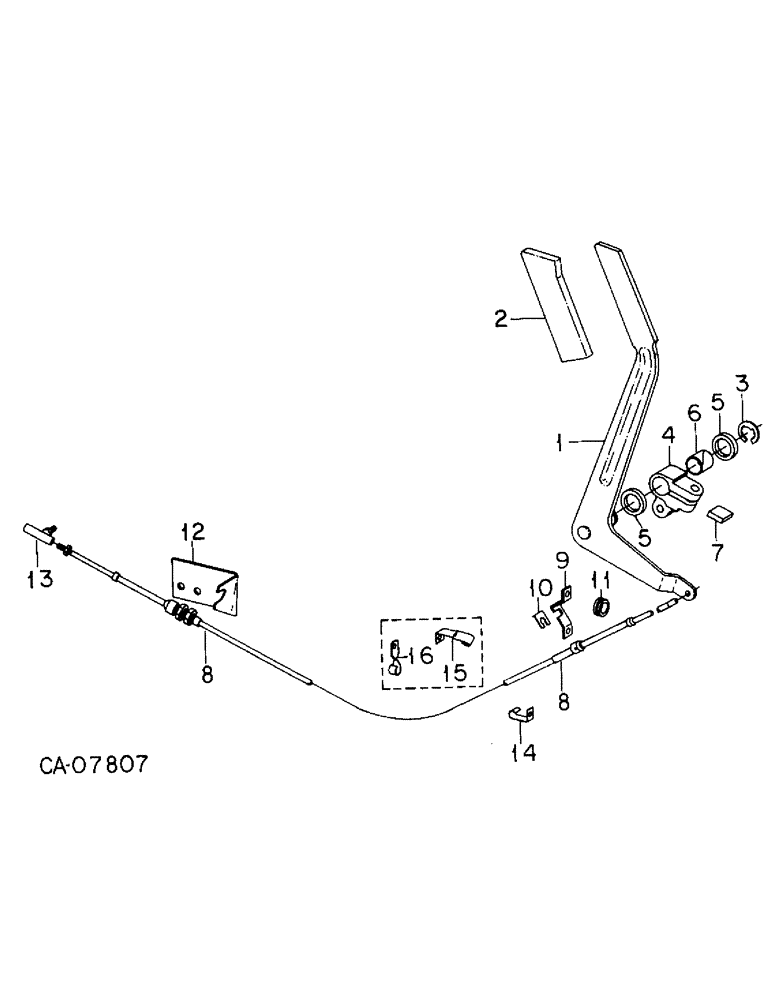

Схема запчастей Case IH 3088 - (12-11) - POWER, GOV CHOKE AND FUEL SHUT-OFF CONTROLS Power
16
11
15
6
1
14
8
7
4
8
12
3
5
9
2
10
5
13

Артикул

Название

Примечание

Количество

1

104076C2

LEVER

ASSY, governor control

1шт.

2

1259765C1

GRIP

governor control lever

1шт.

3

373523R1

SNAP RING,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

1шт.

4

104084C1

CLAMP

friction adjusting

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

181345

BOLT,Hex, 5/16" - 24 x 1 3/4", Gr 5

1шт.

137544C1

NUT

5/16-24 sq

1шт.

532409R1

SPRING WASHER

.331 x .512 x .031 spring

1шт.

5

535684R1

WASHER

lever stop felt, split

2шт.

6

533210R1

BUSHING,19.07mm ID x 20.79mm OD x 17.02mm L

BEARING, friction

1шт.

7

535685R1

SPACER

felt

1шт.

8

1251797C2

CABLE

ASSY, governor control

1шт.

3479

WASHER,7/32" x 9/16" x .060"

.219 x .562 x .054 pln

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 pln cot

1шт.

9

104080C1

SUPPORT

gov. cable, bracket

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

104081C1

CLIP

gov. control

1шт.

11

52118D

GROMMET

governor control cable

1шт.

12

104082C1

SUPPORT

gov. control cable, lower, 3688 and 3688HC tractors, For 3088 and 3288 tractors, see ENG-5 catalog

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

13

120319C2

BALL JOINT

JOINT, over travel ball

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-NF type 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

14

NOT USED THIS APPLICATION

1шт.

15

120049C1

CLAMP

CLIP, gov. control cable, mounted on firewall

1шт.

16

363660R1

CLIP

gov. control cable, mtd rear face of eng block

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

5/16 x 1/2 pln type 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

Выбрано товаров: 29
