Запчасти Case IH 3088 (10-14) - HYDRAULICS, HYDRAULIC POWER STEERING CONNECTION, 3088 AND 3288 TRACTORS (07) - HYDRAULICS

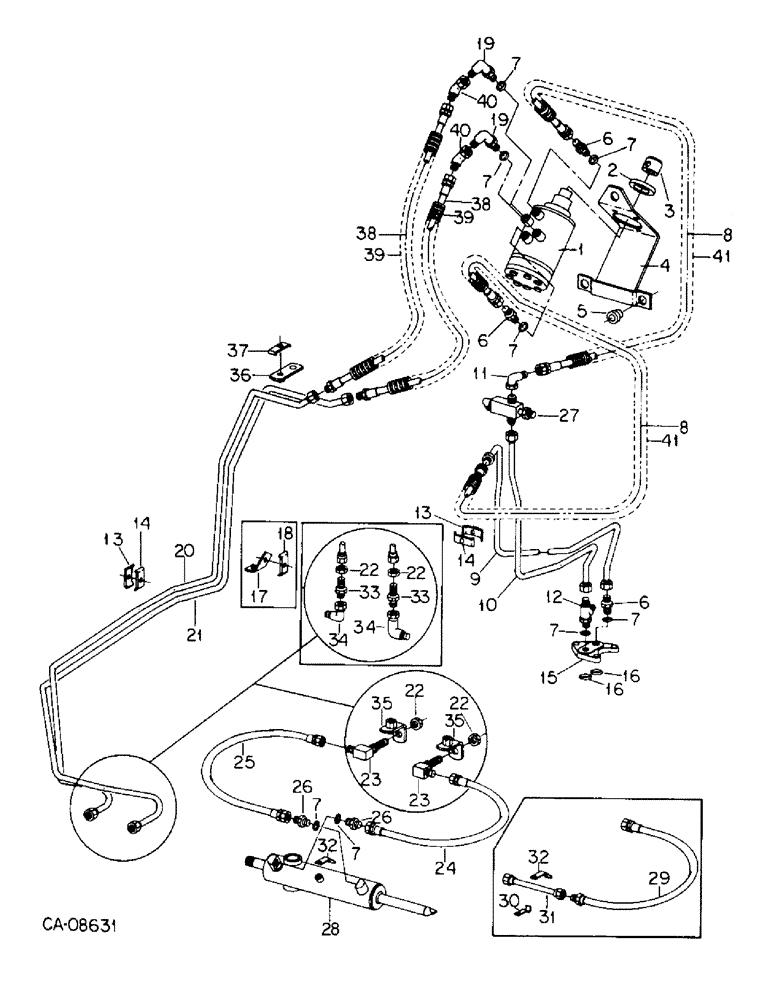

Схема запчастей Case IH 3088 - (10-14) - HYDRAULICS, HYDRAULIC POWER STEERING CONNECTION, 3088 AND 3288 TRACTORS (07) - HYDRAULICS
39
28
26
38
7
2
6
17
26
13
11
35
32
1
16
34
13
25
7
37
7
21
8
36
33
7
10
29
35
20
19
19
22
22
33
8
9
3
14
23
18
7
31
12
15
6
41
39
40
34
7
16
30
38
22
40
22
32
23
24
27
5
41
14
4

Артикул

Название

Примечание

Количество

1

1263446C91

PUMP

ASSY, power steering hand, Replaces 224675C91, Refer to power steering hand pump this group for list of components

1шт.

1

1263446C91R

REMAN-STEERING VALVE

3088, 3288, Both INTERNATIONAL DIESEL TRACTOR, ASSY, power steering hand (1/81-12/86)

1шт.

1

1263446C91C

CORE-STEERING VALVE

Return Number

1шт.

*

617944R1

PIN,3/8" x 1 3/4", Coiled

1шт.

2

104007C1

SEAL

hand pump shaft dust, tractors w/o tilt steering

1шт.

2

148481C1

SEAL,40mm ID x 58mm OD x 8mm Thk

hand pump shaft dust, tractors w/tilt steering

1шт.

3

104008C1

RUBBER INSULATOR

INSULATOR, pump shaft vibration

1шт.

4

104853C1

BRACKET

ASSY, hand pump mtg

1шт.

*

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

5/16 x 5/8 pln type 5

4шт.

5

104809C1

ISOLATOR,27.94mm OD x 18.29mm L

hand pump bracket

3шт.

*

536642R1

WASHER

3шт.

*

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

3шт.

6

324273R1

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, C-Z hyd fld 1/2 to 3/8 sht

3шт.

7

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

8шт.

8

144140C1

HOSE,9.53mm ID x 787.4mm L, SAE 100R1

power strg pressure & return

2шт.

9

120052C3

HYD TUBE,0.5" OD, 389.64, 352.24 mm Length

TUBE ASSY, power steering pressure

1шт.

10

120051C1

HYD TUBE

TUBE ASSY, steering return lower

1шт.

11

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1/2 C-Z hyd fld 90 deg. swivel

1шт.

12

673526R1

TEE

3/4-16 37 deg hyd flared tube

1шт.

13

384855R11

CLAMP

ASSY, steering tubes

2шт.

14

384855R1

CLAMP

steering tubes

2шт.

*

179795

TILLAGE BLADE

1/4 x 3/4 pln type 5

2шт.

*

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

537840R1

BLOCK

power steering manifold

1шт.

*

NLS

NO LONGER SERVICED

3шт.

16

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 class 5

2шт.

17

537844R2

BRACKET

ASSY, power steering tube, Use w/steering tubes, 1252785C1 and 1252786C1

1шт.

18

535307R1

CLAMP

Use w/steering tubes, 1252785C1 and 1252786C1

1шт.

*

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

*

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

*

95-11034

WASHER,1/4"

.344 x .688 x .051 pln

1шт.

*

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

19

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90 deg.

2шт.

20

1280929C1

HYD TUBE

TUBE ASSY, right turn steering, Replaces 1252785C1 by also ordering bulkhead elbow, 1272240C1 and package, 1287523C91

1шт.

21

1280930C1

HYD TUBE

TUBE ASSY, left turn steering, Replaces 1252786C1 by also ordering bulkhead elbow, 1272240C1 and package, 1287523C91

1шт.

22

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT, 3/8 C-Z bulkhead union lock

2шт.

23

1272240C1

ELBOW

3/8 C-Z hyd fld 90 deg. bulkhead

2шт.

24

148487C1

HOSE

ASSY, power steering, LH, 736 mm (29.00) long

1шт.

25

74871C1

HOSE,9.53mm ID x 22.75mm L, SAE 100R7

ASSY, power steering, RH

1шт.

26

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z fld short swivel

2шт.

27

108863C91

VALVE

ASSY, brake check, Refer to brake check valve this group for list of components

1шт.

28

CYLINDER ASSY, hyd power steering, Refer to power steering cylinder this group for list of components

1шт.

29

70312C1

HOSE,9.53mm ID x 577.85mm L, SAE 100R7

ASSY, power steering LH, 578 mm (22.75 in.) long

1шт.

30

533578R2

CLAMP

tube, For use w/hose assy, 70312C1

1шт.

31

533579R2

TUBE

ASSY, cyl to LH strg hose, For use w/hose assy, 70312C1

1шт.

32

533577R2

CLAMP

hose

1шт.

*

181331

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5

5/16-NF x 1/2 pln type 5

1шт.

33

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION, 3/8 C-Z fld tube bulkhead, Use w/tubes 1252785C1 and 1252786C1

2шт.

34

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3/8 C-Z hyd fld 90 deg. swivel, Use w/tubes 1252785C1 and 1252786C1

2шт.

35

1280644C1

SUPPORT

ASSY, bulkhead fitting, Use w/steering tubes, 1280929C1 and 1280930C1

2шт.

*

930052R1

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

M12 x 25 pln class 8.8

2шт.

*

933966R1

LOCK WASHER,M12

WASHER, 12 mm lock

2шт.

36

1280670C1

SUPPORT

ASSY, steering tubes, top of clutch housing, Use w/ steering tubes, 1280929C1 and 1280930C1

1шт.

*

180171

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1/2 x 3/4 type 5

1шт.

37

384855R1

CLAMP

steering tube, Use w/steering tubes, 1280929C1 deg. 1280930C1

1шт.

*

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

*

95-11034

WASHER,1/4"

.344 x .688 x .051 pln

1шт.

38

1270510C1

HOSE,9.53mm ID x 515mm L, SAE 100R1

ASSY, steering, Use w/steering tubes, 1280929C1 and 1280930C1

2шт.

39

CONDUIT, convoluted, Use 495 mm from bulk roll marked 1266756C1

2шт.

40

9410254

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3/8 C-Z hyd fld 45 deg. swivel, Use w/steering tubes, 1280929C1 and 1280930C1

2шт.

41

CONDUIT, convoluted, Use 787 mm from bulk roll marked 1266755C1

2шт.

*

1287523C91

HOSE ASSY.

PACKAGE, left and right steering lines service, Consists of

1шт.

*

1280929C1

HYD TUBE

TUBE ASY, right turn steering

1шт.

*

1280930C1

HYD TUBE

TUBE ASSY, left turn steering

1шт.

*

1280644C1

SUPPORT

ASSY, bulkhead fitting

2шт.

*

30042R1

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

M12 x 30 phc class 10.9

2шт.

*

933966R1

LOCK WASHER,M12

WASHER, 12 mm lock

2шт.

*

1272240C1

ELBOW

3/8 90 deg. bulkhead

2шт.

*

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT, 3/8 C-Z bulkhead union lock

2шт.

*

1280670C1

SUPPORT

ASSY, strg tubes

1шт.

*

180171

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1/2 x 3/4 type 5

1шт.

*

384855R1

CLAMP

1шт.

*

1797979

BOLT, 1/4 x 1 pln type 5

1шт.

*

95-11034

WASHER,1/4"

.344 x .688 x .051 pln

1шт.

*

1270510C1

HOSE,9.53mm ID x 515mm L, SAE 100R1

ASSY, steering upper

2шт.

*

TUBING, corrugated, 495 mm

2шт.

*

9410254

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3/8 C-Z hyd fld 45 deg. swivel

2шт.

*

384855R11

CLAMP

ASSY, Serial Range: tube-tube

1шт.

*

384855R1

CLAMP

1шт.

*

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4 x 3/4 pln type 5

1шт.

*

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

*

INSTRUCTIONS (NSS)

1шт.

Выбрано товаров: 82
