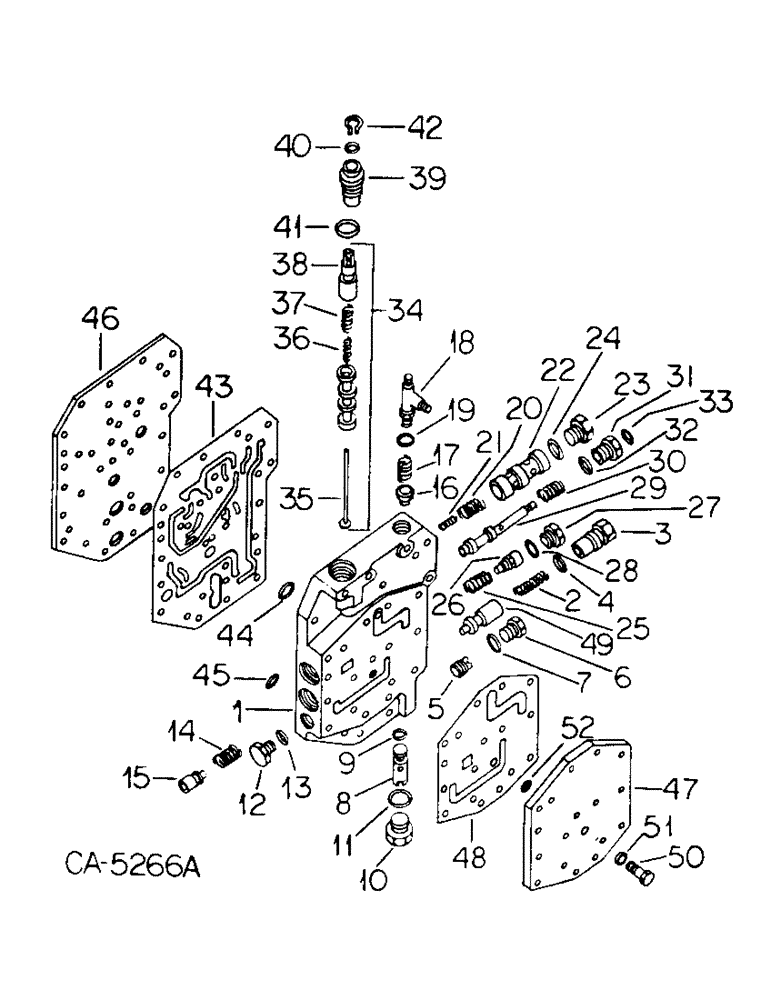

Запчасти Case IH 3088 (10-09) - HYDRAULICS, MULTIPLE CONTROL VALVE, TRACTORS WITH TORQUE AMPLIFIER (07) - HYDRAULICS

VALVE ASSY, multiple control, 2000 PSI, 1263439C91

1шт.

186623

BELT,Hex, 5/16" - 18 x 1 3/8", Gr 8

5/16 x 1-3/8 pln type 8

1шт.

445625

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 8

5/16 x 1-3/4 pln type 8

1шт.

454865

BOLT,Hex, 5/16" - 18 x 2 1/4", Gr 8

5/16 x 2-1/4 pln type 8

8шт.

26525R1

BOLT,Hex, 5/16" - 18 x 2 5/8", Gr 8

5/16 x 2-5/8 pln type 8

10шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

1

BODY ASSY, multiple control valve, Not serviced separately, Order service package 1263289C92

1шт.

2

379211R1

SPRING

flow control valve

1шт.

3

382297R1

PLUG

flow control valve

1шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6, flow control valve plug

1шт.

5

63723C1

VENT

flow control, orifice

1шт.

6

9410357

PLUG

5/16 C-Z str thd o-ring boss, flow control orifice port

1шт.

8

384443R92

VALVE

ASSY, safety, 2000 PSI

1шт.

9

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 x 9/16 class 6, safety valve

1шт.

10

536855R1

PLUG

3/4-16 znd str thd o-ring boss, safety valve

1шт.

11

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6, safety valve plug

1шт.

12

9410355

PLUG,Hex Hd, 3/8"-24 ORB

3/16 C-Z str thd o-ring boss, power steering input port

1шт.

13

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, 3/16 OD tube class 6, Power steering input port plug

1шт.

14

123357C1

SPRING

oil cooler by-pass valve

1шт.

15

123356C1

VALVE

by-pass

1шт.

103697

PIN,1/8" x 1 3/8"

1/8 x 1-3/8 pln chamf str

1шт.

16

382304R1

CHECK VALVE

VALVE, brake check

1шт.

17

113936C1

SPRING

brake check valve

1шт.

18

123051C1

TEE

hyd. tube

1шт.

18

143622C1

ELBOW

hyd tube, tractors with vertical acting seat

1шт.

19

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6, regulator pressure port

1шт.

20

382306R1

SPRING

pressure regulator valve outer

1шт.

21

390819R1

VALVE SPRING

SPRING, pressure regulator valve inner

1шт.

22

382307R11

VALVE

ASSY, pressure regulator

1шт.

23

536855R1

PLUG

3/4-16 znd str thd o-ring boss, pressure regulator valve

1шт.

24

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6, pressure regulator valve plug

1шт.

25

382312R1

SPRING

lube regulator

1шт.

26

382301R1

LOCK VALVE

VALVE

1шт.

103697

PIN,1/8" x 1 3/8"

1/8 x 1-3/8 pln chamf str

1шт.

27

384403R1

PLUG

lube regulator by-pass valve

1шт.

28

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6, lube regulator by-pass valve plug

1шт.

29

391942R2

VALVE

clutch dump

1шт.

30

382310R1

SPRING

clutch dump valve

1шт.

31

387934R2

PLUG

clutch dump valve

1шт.

32

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6, dump valve plug

1шт.

33

529883R91

OIL SEAL

clutch dump valve plug

1шт.

34

382313R94

VALVE

ASSY, drive selector

1шт.

35

382315R2

GUIDE

1шт.

36

382317R1

SPRING

selector valve inner

1шт.

37

390820R1

VALVE SPRING

SPRING, valve rod

1шт.

38

382319R2

PIN,20.32mm OD x 93.98mm L

1шт.

20347R1

PIN,5/64" x 3/4", Coiled

1шт.

39

382321R2

SCREW,1 3/16" - 18 x 1.60"

drive selector valve retaining

1шт.

40

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 class 5, drive selector valve stem

1шт.

41

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1-1/16 x 1-1/4 class 5, valve retaining screw

1шт.

42

382627R1

SNAP RING,#59, Ext

RING, .550 ext ret

1шт.

43

382323R3

GASKET

multiple control valve inner

1шт.

44

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

13/16 x 1 class 6

1шт.

45

470585R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1/2 x 11/16 clas 6, power steering input port

1шт.

46

382324R1

PLATE ASSY.

PLATE, multiple control valve inner

1шт.

47

1263290C1

COVER

multiple control valve outer

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

48

382326R4

GASKET

multiple control valve outer cover

1шт.

49

VALVE, flow control, Not serviced separately, Order service package 1263289C92

1шт.

50

25828R1

BOLT,Hex, 9/16" - 18 x 1", Gr 8

9/16NF x 1 phc type 8

1шт.

51

138260C1

SEAL

Dyna

1шт.

52

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

-016, 90 Duro, .614" ID x .070" Thk

1шт.

1263289C92

PACKAGE

multiple control valve service, Consists of Ref. 1 - 52 and parts not required for this application

1шт.

7

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube, class 6, Flow control orifice port plug

1шт.
