Запчасти Case IH 3088 (13-42) - SUPERSTRUCTURE, NON-ROPS FRAME, 3088 TRACTORS (05) - SUPERSTRUCTURE

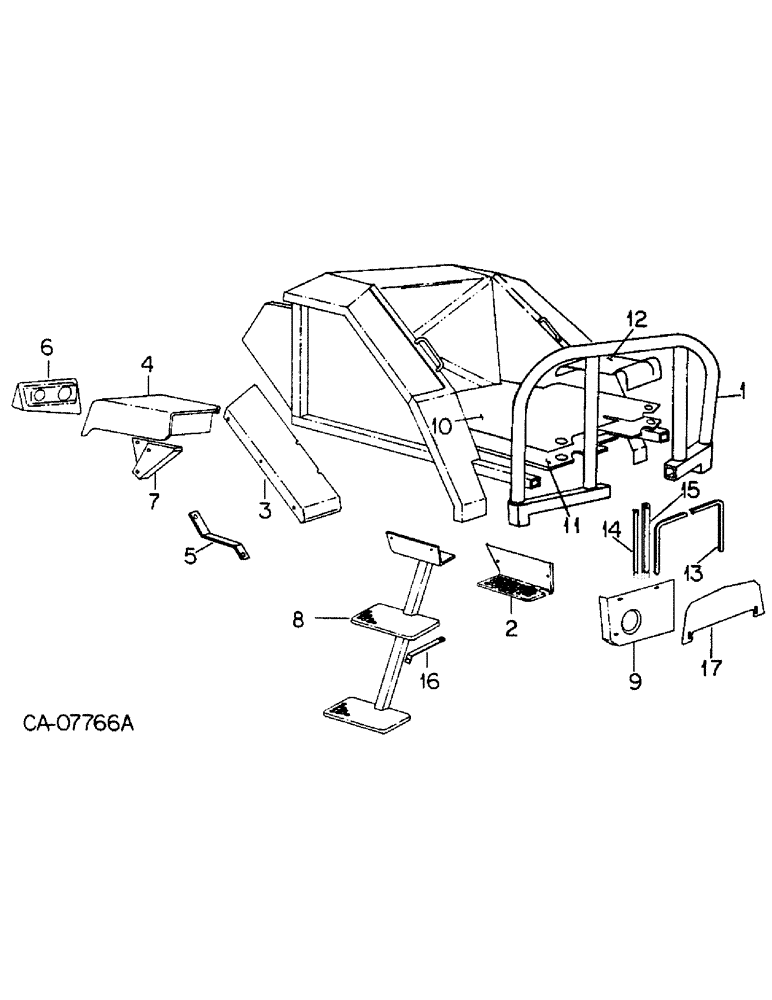

Схема запчастей Case IH 3088 - (13-42) - SUPERSTRUCTURE, NON-ROPS FRAME, 3088 TRACTORS (05) - SUPERSTRUCTURE
8
4
14
13
11
9
6
17
5
16
10
3
15
2
12
1
7

Артикул

Название

Примечание

Количество

1

1255710C92

FRAME

ASSY, non-rops, service

1шт.

472429C1

PLUG

Plastic, 3/4" Diameter Hole

1шт.

218343

HYDRAULIC MOTOR,5/16" - 18 x 3/4"

BOLT, 5/16 x 3/4 pln weld

7шт.

143088C1

PLUG

9/16 hole

6шт.

353-417

PLUG,Dome, 2.000" hole, Nylon

2.0 button

1шт.

117675C1

PLUG

Button 1/2

3шт.

118148C2

SELF-TAP SCREW,Hex, #10 x 3/8"

BOLT, 1/4-20 x 1-1/2 hex-hd mach pan-hd tap, type T

6шт.

115109

WASHER,1/4"

1/4"

6шт.

2

1250567C1

PANEL

inner step, LH

1шт.

2

1250568C1

PANEL

inner step, RH

1шт.

328401C1

SELF-TAP SCREW,Hex Wash Hd, #8 x 3/4"

SCREW, no. 8-18 x 3/4 cad c/r s/d tap

8шт.

3

111595C1

PANEL

wheel well, LH, filler

1шт.

3

1255731C3

PANEL

wheel well, RH, filler

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT, 1/4 x 3/4 crg type 5

6шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

6шт.

4

109491C3

FENDER ASSY.

FENDER ASSY, LH

1шт.

4

109492C3

FENDER ASSY.

FENDER ASSY, RH

1шт.

118103C1

SEALING STRIP

fender

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 flange lock

18шт.

118003C1

SEAL, fender to wheel well

2шт.

5

118072C1

SUPPORT, fender, LH, brace

1шт.

5

118073C1

SUPPORT, fender, RH, brace

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

CONDUIT, convoluted RH, Use 26.0 in. from bulk roll marked 464835C1

2шт.

6

111562C2

PANEL

rear lamp, LH

1шт.

6

111563C2

PANEL

rear lamp, RH

1шт.

143310C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 24 x 1/2"

SCREW, no. 10 x 1/2 polyseal p/hd ct tap

4шт.

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

SCREW, no. 10-16 x 1/2 polyseal c/r s/d tap

4шт.

7

111533C1

SUPPORT

fender LH, filler

1шт.

7

111534C1

SUPPORT

fender RH, filler

1шт.

180016

SPRING

1/4 x 1/2 type 5

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 flange lock

4шт.

143088C1

PLUG

9/16 hole

4шт.

8

1250440C4

STEP

LADDER ASSY, LH

1шт.

8

1250441C4

STEP

LADDER ASSY, RH

1шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex-hd lock

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

12шт.

9

111616C1

SHROUD

LH

1шт.

9

111617C1

SHROUD

RH

1шт.

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

SCREW, 1/4-20 x .50 flange lock hex-hd

6шт.

10

1255890C2

MAT

floor

1шт.

11

1255882C1

CARPET

LINER, floor mat

2шт.

12

1255883C2

MAT

LH console

1шт.

13

103998C2

SEAL

upper inst. housing

2шт.

14

104754C1

CHANNEL

firewall seal

2шт.

15

104752C1

SEAL

frame to firewall, vertical

2шт.

16

1255897C2

SUPPORT

battery

2шт.

17

1253084C1

SUPPORT, ROPS sealing

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

64520C1

PRODUCT GRAPHIC

safety caution

1шт.

224840C1

DECAL

PRODUCT GRAPHIC, caution

1шт.

Выбрано товаров: 57
