Запчасти Case IH 3088 (13-39) - SUPERSTRUCTURE, COMPRESSOR (05) - SUPERSTRUCTURE

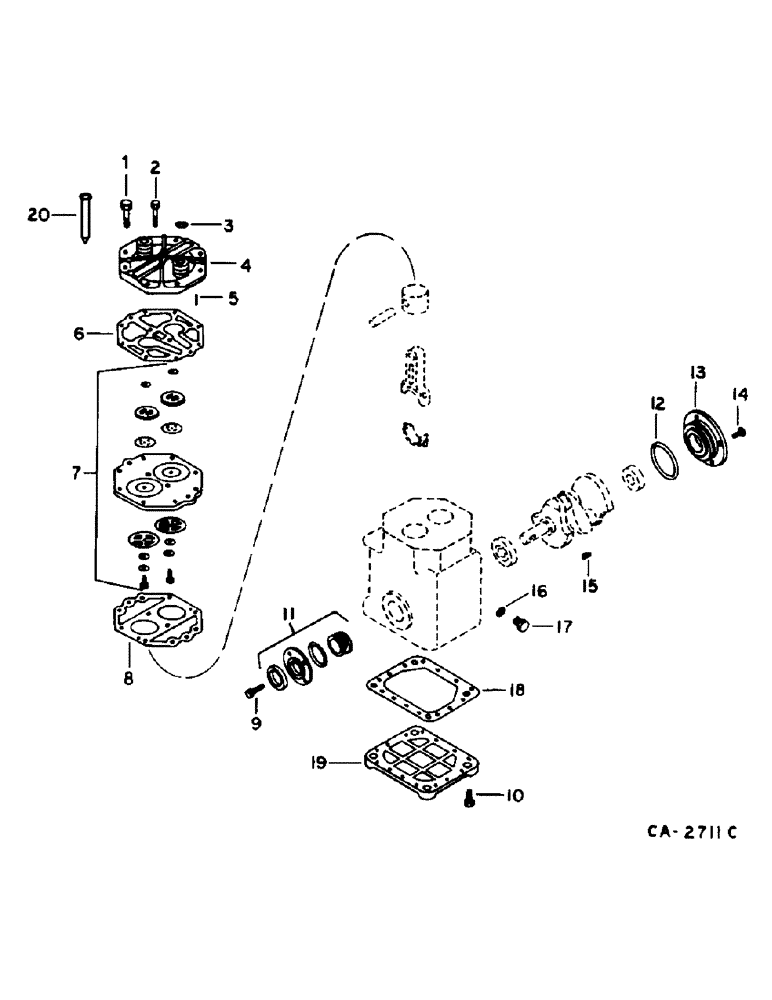

Схема запчастей Case IH 3088 - (13-39) - SUPERSTRUCTURE, COMPRESSOR (05) - SUPERSTRUCTURE
17
14
2
18
11
5
3
8
7
16
20
4
1
10
15
9
6
12
13
19

Артикул

Название

Примечание

Количество

1255750C91

COMPRESSOR

COMPRESSOR ASSY, air conditioner

1шт.

1924008C2

REMAN-A/C COMPRESSOR

Remanufactured Air Compressor Assy

1шт.

1924009C1

CORE-A/C COMPRESSOR

Return Number, Air Compressor Assy

1шт.

1

20641R1

SCREW

SCREW, 5/16 x 1-3/8 pln h/hd mach

8шт.

2

27690R1

12 PT SCREW,Flg, 5/16"-18 x 1 1/2"

SCREW, 5/16 x 1.500 phc ast 12pt flg

2шт.

3

118469C1

GASKET

GASKET, service valve

2шт.

4

478712C91

PACKAGE

KIT, cylinder head w/gaskets

1шт.

5

21247R1

DOWEL,1/8" x 3/4"

PIN, 1/8 x .750 pln hdn dowel

2шт.

6

431756C1

CYLINDER HEAD GASKET

GASKET, head

1шт.

7

394430C91

KIT

KIT, valve plate w/gaskets

1шт.

8

431761C1

CYLINDER HEAD GASKET

GASKET, valve plate

1шт.

9

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

SCREW, no. 10 x 1/2 znp h/hd mach,Course threads

6шт.

10

21024R1

SCREW

SCREW, 1/4 x 5/8 znp h/hd mach

14шт.

11

592263C91

SEAL KIT

KIT, shaft seal front, Replaces 428606C91

1шт.

12

431763C1

O-RING,0.07" Thk x 3.239" ID, -42, Cl 6, 90 Duro

SEAL, o-ring

1шт.

13

431757C1

HOUSING

HOUSING, rear bearing

1шт.

14

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

SCREW, Slotted Flat Hd, 1/4"-20 x 5/8"

4шт.

15

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

WOODRUFF KEY, #6, 5/32" x 5/8", HT

1шт.

16

431764C1

SEAL,8.484mm ID x 1.778mm Width

SEAL, o-ring oil plug

2шт.

17

86982693

PLUG

PLUG, 3/8-24 znp out/h/hd filler/drain

2шт.

18

431760C2

GASKET

GASKET, base

1шт.

19

431755C1

PLATE

SPARE PART PLATE, base

1шт.

20

118210C1

FILTER SCREEN

SCREEN, suction filter

1шт.

Выбрано товаров: 23
