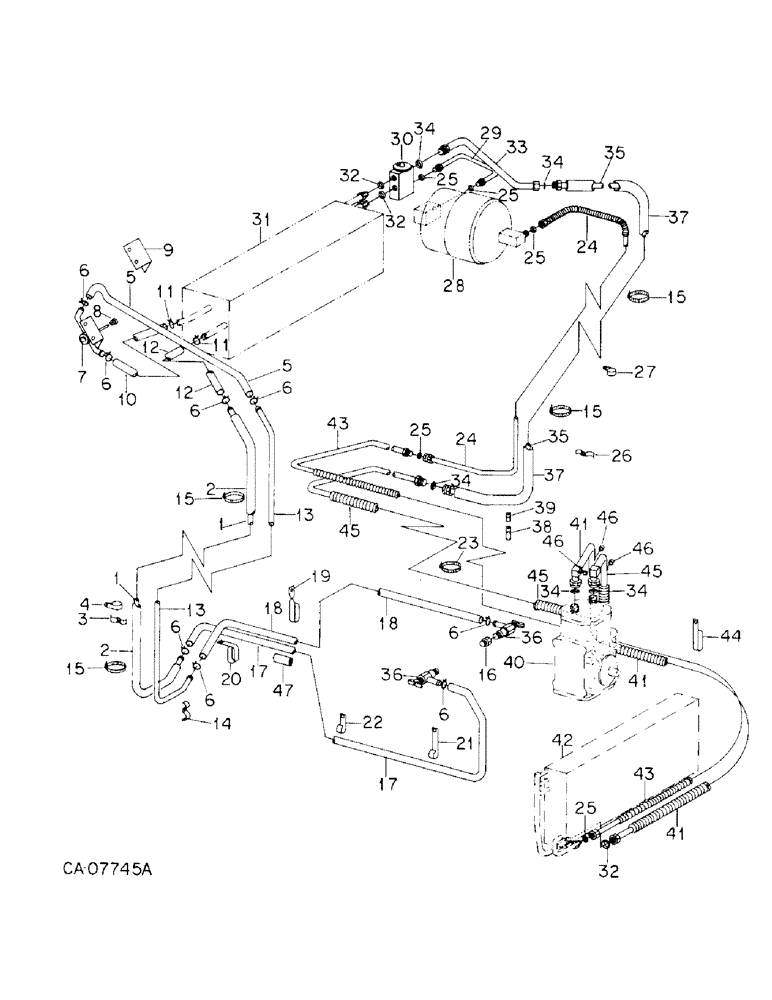

Запчасти Case IH 3088 (13-32) - SUPERSTRUCTURE, HEATER AND AIR CONDITIONER CONNECTIONS (05) - SUPERSTRUCTURE

1

143116C1

HEATER TUBE,0.625" OD, 2000 mm Length

TUBE, heater inlet

1шт.

2

143327C1

INSULATOR

INSULATION, heater inlet tube

1шт.

3

143410C1

CLIP

one hole double

1шт.

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, no. 10-16 x 1/2 polyseal tap

2шт.

4

111610C1

CLAMP

plastic tube

1шт.

118676

WASHER,0.22" ID x 0.5" OD x 0.05" Thk

.219 x .500 x .036 phc

1шт.

118461C1

COVER

molded rubber tip

2шт.

5

HOSE, valve outlet to outlet tube, Use 23 in. of 5/8 ID heater hose from bulk roll marked 117724C1

1шт.

6

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, no. 10 type F hose

8шт.

7

111221C4

VALVE

heater control

1шт.

8

111282C1

KNOB

heater control

1шт.

9

109134C1

BRACKET

heter control valve

1шт.

1276100C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, no. 10-16 x 3/8 polyseal tap

1шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 and reg lock

2шт.

10

HOSE, heater core to control valve, Use 11 in. of 5/8 ID heater hose from bulk roll marked 117724C1

1шт.

11

313318R1

HOSE CLAMP,#14, 7/8", Spring

CLAMP, no. 14 type E spring wire hose

2шт.

12

HOSE, heater inlet tube to core, Use 11 in. of 5/8 ID heater hose from bulk roll marked 117724C1

1шт.

13

143117C1

HEATER TUBE,0.625" OD, 1863.895 mm Length

TUBE, heater outlet

1шт.

14

1250579C1

CLAMP

CLIP, one hole double

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

15

111619C1

STRAP

adjustable

6шт.

16

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

ADAPTER, 1/2 to 3/8 pln out/h/hd pipe

1шт.

18

HOSE, heater outlet, Use 94 in. of 5/8 ID heater hose from bulk roll marked 117724C1

1шт.

19

1250507C1

CLIP

twisted double hose

1шт.

20

1250508C1

CLAMP

CLIP, double hose

1шт.

21

1255749C1

CLAMP

straight hose, (1) required for 3688 and 3688HC, (2) required for 3288

1шт.

22

143304C2

CLAMP

straight, inlet hose

1шт.

30000R1

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

M8 x 12 phc clas 10.9

2шт.

934309R1

LOCK WASHER,M8

2шт.

30167R1

NUT,M8, Cl 10

M8 phc class 10

2шт.

23

306132C1

CABLE TIE,14.5" L

STRAP, adjustable tie

1шт.

24

143114C1

TUBE

ASSY, liquid

1шт.

25

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

5шт.

26

143411C1

CLAMP

a/c tubes

1шт.

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, no. 10-16 x 1/2 polyseal tap

2шт.

27

NOT USED IN THIS APPLICATION

1шт.

28

RECEIVER-DRYER, Refer to evaporator-heater core, blower and related parts this group for additional service parts

1шт.

29

1250438C1

TUBE ASSY.

TUBE ASSY, receiver-dryer

1шт.

30

118321C1

VALVE

bulbless expansion, 1-1/2 ton

1шт.

30

118321C1GV

VALVE

bulbless expansion, 1-1/2 ton

1шт.

31

CORE, comb. evaporator-heater, Refer to evaporator-heater core, this group for additional service parts

1шт.

32

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 class 5

3шт.

33

143267C3

TUBE,0.625" OD, 196 mm Length

ASSY, evaporator discharge

1шт.

34

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

9/16 x 11/16 class 5

5шт.

35

143115C1

TUBE,0.625" OD, 1735 mm Length

ASSY, suction, hose

1шт.

36

301803R91

VALVE

ASSY, heater inlet/outlet shutoff

2шт.

37

1250573C1

TUBE,17.1 - 19.2 mm ID, 29.2 - 34.3 mm OD

HOSE, suction tube insulation

1шт.

38

1250580C1

CLAMP

cloased one hole

1шт.

39

1250581C1

CLAMP

liquid line

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

40

COMPRESSOR ASSY, air conditioner, Refer to compressor, pulleys and belts this group for additional service parts

1шт.

41

143120C3

HOSE

ASSY, compressor discharge, serviceable components are

1шт.

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

375271R1

O-RING,0.426" ID x 0.07" Width

1шт.

118188C1

CAP

2шт.

1262274C1

CLAMP

CLIP, discharge hose

1шт.

42

CONDENSER ASSY, Refer to condenser and mounting this group for additional service parts

1шт.

43

143107C2

FLEXIBLE HOSE

HOSE ASSY, chassis liquid, serviceable components are

1шт.

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

1шт.

118188C1

CAP

1шт.

44

1250586C1

NO LONGER SERVICED

CLIP, hose, chassis front

1шт.

45

143268C3

HOSE

ASSY, chassis suction, 3288 tractors, Serviceable components are:

1шт.

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

118188C1

CAP

2шт.

45

143130C4

HOSE

ASSY, chassis suction, 3688 and 3688HC tractors, Serviceable components are:

1шт.

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

118118C1

CAP

2шт.

46

118188C1

CAP

3шт.

47

392910R1

BUMPER

heater hose

1шт.

1250507C1

CLIP

twisted hose

1шт.

1250585C1

CLAMP

CLIP, hose chassis lines, rear

1шт.

30000R1

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

M8 x 12 phc class 10.9

2шт.

934309R1

LOCK WASHER,M8

2шт.

30167R1

NUT,M8, Cl 10

M8 phc class 10

2шт.

934675R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6 mm

2шт.

1262082C1

CLAMP

CLIP, double hose

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

2шт.

1255739C1

CLAMP

CLIP, hose, under rear platform

1шт.

1250508C1

CLAMP

CLIP, hose, under front platform

1шт.

30284R1

NUT,M10, Cl 10

M10 class 10

2шт.

933965R1

LOCK WASHER,M10

2шт.

TAPE, insulation, Use 94 in. from bulk roll marked 118468C1

1шт.
