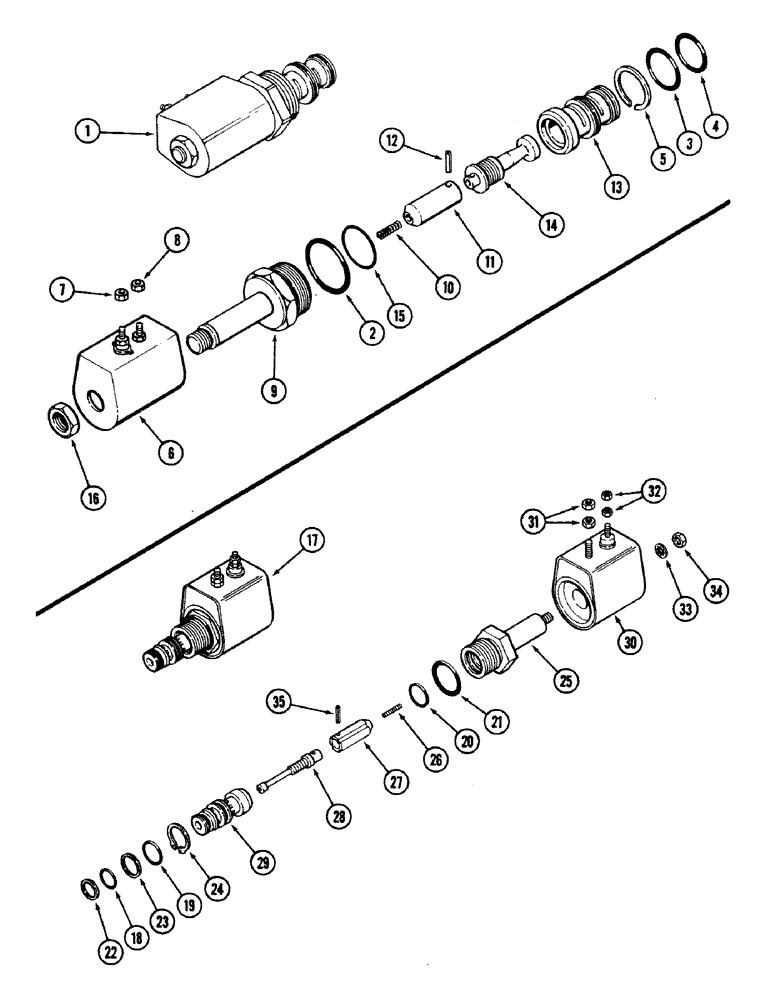

Запчасти Case IH 2594 (6-008) - SOLENOID ASSEMBLY, ELECTRIC SHIFT (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
A160899
VALVE
SOLENOID ASSEMBLY - electric shift, Includes: Refs. 1 - 16
4шт.
1
A49488
SWITCH
CARTRIDGE ASSEMBLY - solenoid, Includes: Refs. 2 - 5 and service kit, P/N A49489
1шт.
A49489
SEAL
KIT - service, solenoid seals, Includes: 2 - 5
1шт.
2
NSS
NOT SOLD SEPARAT
O-RING - 2-1/16 inch ID
1шт.
3
NSS
NOT SOLD SEPARAT
O-RING - 1-9/16 inch ID
1шт.
4
NSS
NOT SOLD SEPARAT
O-RING - 1-5/16 inch ID
1шт.
5
NSS
NOT SOLD SEPARAT
RING - retaining
1шт.
6
A49486
SWITCH
COIL ASSEMBLY - solenoid, Includes: Refs. 7 and 8
1шт.
7
225-14108
NUT,#8-32
- hex, No. 8 NC
2шт.
8
225-10110
NUT,#10-24
2шт.
9
NSS
NOT SOLD SEPARAT
TUBE - solenoid valve
1шт.
10
A49487
SPRING
- coil
1шт.
11
NSS
NOT SOLD SEPARAT
PLUNGER - solenoid
1шт.
12
NSS
NOT SOLD SEPARAT
PIN - roll, spool retaining
1шт.
13
NSS
NOT SOLD SEPARAT
CAGE - solenoid
1шт.
14
NSS
NOT SOLD SEPARAT
SPOOL - solenoid pressure
1шт.
15
NSS
NOT SOLD SEPARAT
O-RING - 1-11/16 inch ID
1шт.
16
131-60
LOCK NUT,5/8"-18
NUT - heavy hex, self-locking, 5/8 inch NF
1шт.
A156471
VALVE
SOLENOID ASSEMBLY - dual range 24 speed transmission, Includes: Refs. 17 - 35
2шт.
17
A49482
CARTRIDGE
ASSEMBLY - solenoid, dual range 24 speed transmission, Includes: Refs. 18 - 24 and service kit, P/N A49485
1шт.
A49485
SEAL
KIT - service, solenoid seals, dual range 24 speed transmission, Includes: Refs. 18 - 24
1шт.
18
NSS
NOT SOLD SEPARAT
O-RING - rubber, dual range 24 speed transmission
1шт.
19
NSS
NOT SOLD SEPARAT
O-RING - rubber, dual range 24 speed transmission
1шт.
20
NSS
NOT SOLD SEPARAT
O-RING - rubber, dual range 24 speed transmission
1шт.
21
NSS
NOT SOLD SEPARAT
O-RING - rubber, dual range 24 speed transmission
1шт.
22
NSS
NOT SOLD SEPARAT
RING - back up, dual range 24 speed transmission
1шт.
23
NSS
NOT SOLD SEPARAT
RING - back up, dual range 24 speed transmission
1шт.
24
NSS
NOT SOLD SEPARAT
RING - retaining, dual range 24 speed transmission
1шт.
25
NSS
NOT SOLD SEPARAT
TUBE - solenoid valve, dual range 24 speed transmission
1шт.
26
A49484
SPRING
- solenoid, dual range 24 speed transmission
1шт.
27
NSS
NOT SOLD SEPARAT
PLUNGER - solenoid, dual range 24 speed transmission
1шт.
28
NSS
NOT SOLD SEPARAT
SPOOL - solenoid, dual range 24 speed transmission
1шт.
29
NSS
NOT SOLD SEPARAT
CAGE - solenoid, dual range 24 speed transmission
1шт.
30
A49483
COIL
ASSEMBLY - solenoid, dual range 24 speed transmission, Includes: Refs. 31 and 32
1шт.
31
225-14108
NUT,#8-32
- hex, No. 8 NC, dual range 24 speed transmission
2шт.
32
225-10110
NUT,#10-24
Dual range 24 speed transmission #10-24
2шт.
33
493-21026
LOCK WASHER,Int Tooth, 1/4"
WASHER - lock, internal tooth 1/4 inch, dual range 24 speed transmission
1шт.
34
425-104
NUT,1/4"-20, Cl 5
- hex, 1/4 inch NC, dual range 24 speed transmission
1шт.
35
NSS
NOT SOLD SEPARAT
PIN - roll, spool retaining, dual range 24 speed transmission
1шт.
Выбрано товаров: 39
